Aluminum Stranded Loose Tube GYTA-24B1 Outdoor Fiber Optic Cable

1km
MOQ
Aluminum Stranded Loose Tube GYTA-24B1 Outdoor Fiber Optic Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: G652D
Color: Black
Jacket: PE,MDPE
Strength Member: Steel Wire
Product Name: Stranded Loose Tube Armored Cable
Length: 2km Or Customized Length
Installation: Aerial & Duct
Fiber Color: Blue,Orange,Brown,Aqua,Grey
Oem: Available
Highlight:

GYTA-24B1 Outdoor Fiber Optic Cable

,

GYTA-24B1

,

GYTA-24B1 loose tube fiber optic cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM
Certification: ISO9001
Model Number: GYTA-24B1
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 30KM Per days
Product Description

24 Core Aluminum Stranded Loose Tube Armored Cable GYTA Outdoor Fiber Optic Cable



Product Description

Technical Features

1.Single sheaths construction

2.Accurate fiber excess length ensures good mechanical and temperature performance.

3.Specially designed compact structure is good at preventing loose tubes from shrinking.

4.High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a citical protection of fiber.

5.Moistureproof and ratproof.



Applications:

Long distance and local area network (LAN) communication.

Laying ways: Pipeline , Overhead , Direct buried ,Duct application.





Temperature Range: -40℃~+70℃



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters



Fiber Count

(Core)



Out sheath

Diameter

(mm)

Weight

(KG/KM)



Min.allowable tensile

strength(N)



Min.allowable crush

load(N/100m)



Min. bending radius

(mm)



Suitable

Temperature

(c)



Short term



Long term



Short term



Long term



short term



Long term







24



10.5



105



1500



600



1000



300



20D



10D



-40~+60



36



10.5



105



1500



600



1000



300



20D



10D



-40~+60



42



10.5



105



1500



600



1000



300



20D



10D



-40~+60



48



12.0



150



1500



600



1000



300



20D



10D



-40～+60



60



12.0



150



1500



600



1000



300



20D



10D



-40~+60



72



12.0



150



1500



600



1000



300



20D



10D



-40~+60



96



12.5



165



1500



600



1000



300



20D



10D



-40~+60



144



14.0



180



1500



600



1000



300



20D



10D



-40~+60





Product show

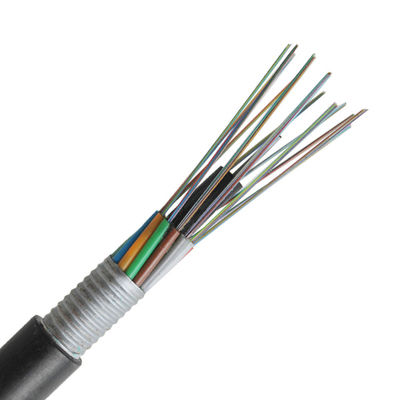

Aluminum Stranded Loose Tube GYTA-24B1 Outdoor Fiber Optic Cable 0

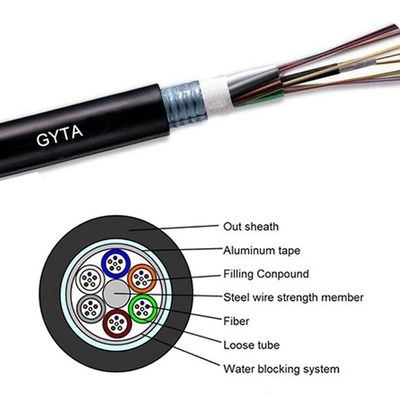

Aluminum Stranded Loose Tube GYTA-24B1 Outdoor Fiber Optic Cable 1



FAQ



1.Why choose US ?
(1)Professional manufacturer: Low MOQ, free samples are available.
(2)Quality assurance:Stable high quality.
(3)Customers solutions:Quick.
(4)Win-Win Price:Save much costs, bring more benefits for customers.

2.Do you accept OEM,ODM?
Yes, we accept them .

3.Can you print our LOGO?
Sure, Your LOGO can be printed on the boxes , or products.

4.What's the method of shipment?
We accept all shipment , such as Delievery,ocean transport, land transport , airport transport.

5.What's the Payment?
We accept all payments , such as LC,TT Western Union,
