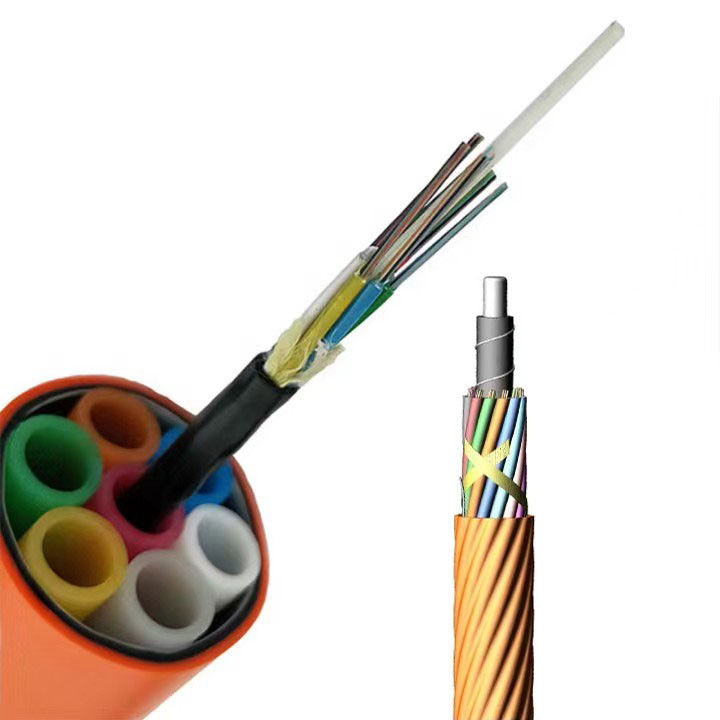

Name: GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GCYFY/GCYFTY
Price: 1,249.28 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Count: 4-144Cores

Fiber Type: Single Mode/multi Mode

Jacket: PE/PVC/LSZH

Color: Black

Product Name: Air-blown Micro Cable

Model Number: GCYFY

Length: 2km Or Customized Length

Structure: Micro Cable

Highlight:

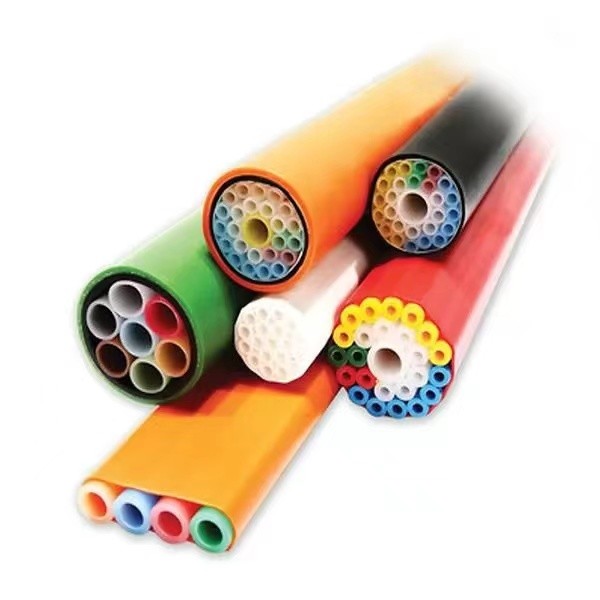

Micro duct fiber optic cable

Air blown fiber cable 96 core

High density outdoor fiber cable

Basic Infomation

Place of Origin: Guangzhou,China

Brand Name: JQ/OEM/Customize

Certification: ISO9001 ROHS CE-EMC FCC SDOC

Model Number: GCYFY/GCYFTY

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 30km per day

Gallery

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable

Product Description

24 48 96 Core GCYFY Air Blown Fiber Micro Cable

Features
GCYFY air-blown micro cable uses a non-metallic, no-armor design with loose-tube stranding. It can be pulled or air-blown into pre-installed microducts, maximizing duct utilization and allowing fast, scalable network expansion.

Applications
Ideal for FTTH feeder and drop segments, connecting branch points to access points by air-blown installation. Also suitable for backbone, metro, and access networks.

Product Description

Model: GCYFY

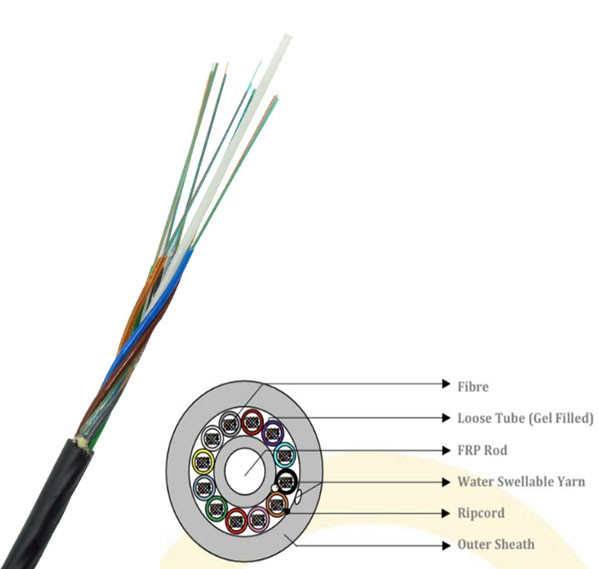

Cable Cross-section Available

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 0

Fiber & Tube Color

Environmental Characteristics: • Transport/storage temperature: -40℃ to +70℃

Cable Parameters

Cores

Cores/tube

FRP diameter (mm)

Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)

1.5

0.5±0.1

5.6

1.5

0.5±0.1

5.6

48	12	1.5	0.5±0.1	5.6	24
72	12	1.5	0.5±0.1	5.6	24
96	12	2.5	0.5±0.1	6.6	38

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 3

Delivery Length

• Standard length: 4,000m; other lengths are also available.

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 4

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 5

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 6

GCYFY Micro Duct Air Blown Fiber Optic Cable 24 48 96 Core Lightweight High Density Fiber Cable 7
