Name: GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GCYFY/GCYFTY
Price: 1,249.28 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Count: 4-144Cores

Fiber Type: Single Mode/multi Mode

Jacket: PE/PVC/LSZH/HDPE/MDPE

Color: Black Or Orange Or Customized

Product Name: Air-blown Micro Cable

Structure: Micro Cable

Installation: Aerial Or Duct Pipe Laying

Number Of Conductors: ≥ 10

Basic Infomation

Place of Origin: Guangzhou,China

Brand Name: JQ/OEM/Customize

Certification: ISO9001 ROHS CE-EMC FCC SDOC

Model Number: GCYFY/GCYFTY

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 30km per day

Gallery

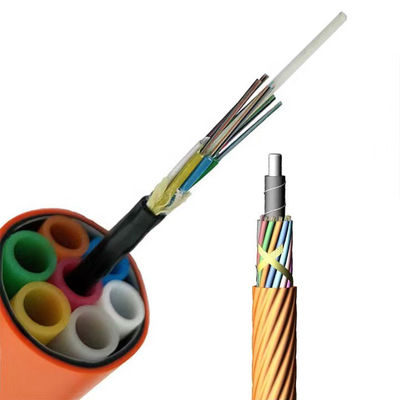

GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network

Product Description

24 48 96 Core GCYFY Air Blown Fiber Micro Cable

Features

GCYFY air blown micro cable adopts loose tube stranded structure with non metallic strength member and no armor design
Designed for hauling or air blowing installation into pre installed micro ducts
Air blowing installation improves duct utilization and reduces construction cost
Easy network expansion without replacing existing pipelines
Lightweight and compact structure for flexible deployment

Applications

FTTH feeder and drop segments using air blown installation
Connection between branch points and subscriber access points
Backbone network deployment
Metropolitan area network applications
Access network construction

Product Description

1. Model: GCYFY

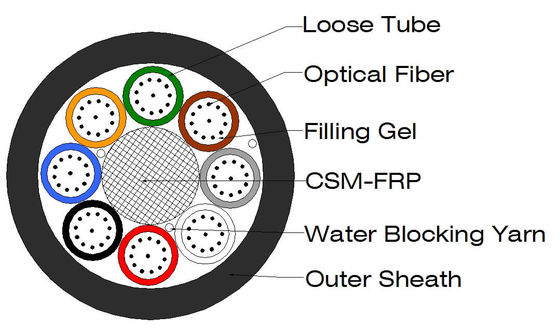

2. Cable Cross-section

GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network 0

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

Fiber & Tube Color

Environmental Characteristics: • Transport/storage temperature: -40℃ to +70℃

Cable Parameters

Cores

Cores/tube

FRP diameter (mm)

Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)

1.5

0.5±0.1

5.6

1.5

0.5±0.1

5.6

48	12	1.5	0.5±0.1	5.6	24
72	12	1.5	0.5±0.1	5.6	24
96	12	2.5	0.5±0.1	6.6	38

GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network 3

Delivery Length

• Standard length: 4,000m; other lengths are also available.

GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network 4

GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network 5

GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network 6

GCYFY Air Blown Fiber Micro Cable 24 48 96 Core Optical Fiber for Duct Network 7
