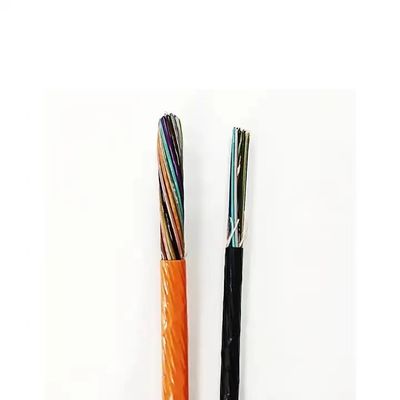

Name: 24/48/96 Core Air Blown Fiber Micro Cable GCYFY Optical Fiber Cable LSZH Jacket
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GCYFY/GCYFTY
Price: 1,249.28 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Count: 4-144Cores

Fiber Type: Single Mode/multi Mode

Jacket: PE/PVC/LSZH/HDPE/MDPE

Color: Black Or Orange Or Customized

Product Name: Air-blown Micro Cable

Length: 2km Or Customized Length

Installation: Aerial Or Duct Pipe Laying

Number Of Conductors: ≥ 10

Highlight:

24 core air blown fiber cable

96 core LSZH optical fiber cable

outdoor micro fiber optic cable

Basic Infomation

Place of Origin: Guangzhou,China

Brand Name: JQ/OEM/Customize

Certification: ISO9001 ROHS CE-EMC FCC SDOC

Model Number: GCYFY/GCYFTY

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 30km per day

Gallery

24/48/96 Core Air Blown Fiber Micro Cable GCYFY Optical Fiber Cable LSZH Jacket

Product Description

24 48 96 Core GCYFY Air Blown Fiber Micro Cable

Product Description

Model: GCYFY

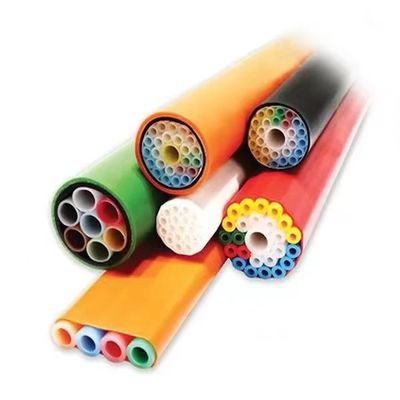

Structure: Loose-tube, non-metallic reinforced, non-armored micro cable designed for air-blown or pulled installation in pre-laid microducts.

Features

Non-metallic strength member; lightweight and flexible
Loose-tube design with excellent mechanical and temperature performance
Optimized for air-blown installation to maximize duct utilization
Easy network expansion and rapid deployment

Applications

FTTH feeder and drop segments
Air-blown installation from branch points to access points
Suitable for backbone, metro, and access networks

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

24/48/96 Core Air Blown Fiber Micro Cable GCYFY Optical Fiber Cable LSZH Jacket 0

Fiber & Tube Color

Environmental Characteristics: • Transport/storage temperature: -40℃ to +70℃

Cable Parameters

Cores

Cores/tube

FRP diameter (mm)

Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)

1.5

0.5±0.1

5.6

1.5

0.5±0.1

5.6

48	12	1.5	0.5±0.1	5.6	24
72	12	1.5	0.5±0.1	5.6	24
96	12	2.5	0.5±0.1	6.6	38

24/48/96 Core Air Blown Fiber Micro Cable GCYFY Optical Fiber Cable LSZH Jacket 3

Delivery Length

• Standard length: 4,000m; other lengths are also available.

24/48/96 Core Air Blown Fiber Micro Cable GCYFY Optical Fiber Cable LSZH Jacket 4
