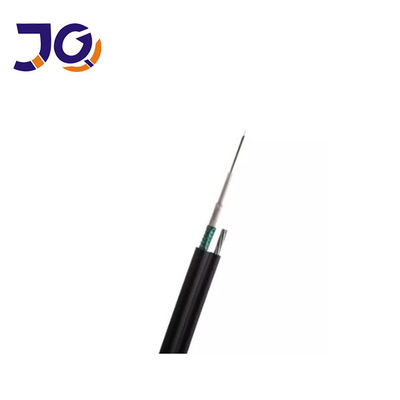

Name: Length 5km Figure 8 GYXTC8S Aerial Fiber Cable
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GYXTC8S
Price: 1,249.28 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Place Of Origin: Guangzhou,China

Brand Name: Jiqian

Application: Overhead

Jacket Sheath: PE

Certification: ISO 9001

Manufacturer: Yes

Fiber Range: 2-12 Cores

Fiber Type: Fiberhome/YOFC

Highlight:

GYXTC8S Aerial Fiber Cable

5km Aerial Fiber Cable

5km Figure 8 Fiber Cable

Basic Infomation

Place of Origin: China

Brand Name: Jiqian

Certification: ISO 9001

Model Number: GYXTC8S

Payment & Shipping Terms

Packaging Details: Wooden drum

Delivery Time: 3-5 days

Payment Terms: L/C, T/T, Western Union,Alipay

Supply Ability: 4500KM Per month

Gallery

Length 5km Figure 8 GYXTC8S Aerial Fiber Cable

Product Description

Outdoor Figure 8 GYXTC8S Fiber Optic Cable Used For Aerial Installation

GYXTC8S Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration, protected with a corrugated steel tape armor. All whole unit and galvanized steel messenger are covered with black polyethylene outer jacket.

Length 5km Figure 8 GYXTC8S Aerial Fiber Cable 0

Applications

Long distance and local area network(LAN) communication.
Aerial & conduit / duct application.

Features

Central loose tube with jelly compound inside to protect the cladding fiber.

Corrugated steel tape laminated with plastic at both sides bonding to PE sheath.
Good mechanical and temperature resistant performance.

The cross-section in fig8 structure.
Crush resistance and flexibility.
Light weight and small diameter, easy to installation and operation.

Cable Parametres

Fiber Count		2-12 FO
Fiber Type		SM G652D or multimode
Messenger Wire		1.6mm steel
Loose Tube		PBT (2.0mm)
Jacket		PE / LSZH
Outer Diameter		3.2*6.3mm
Color		Black, customized
Length		1-5km per wooden drum

Optical fiber characteristics

Fiber style	Unit	SM G652D	MM 50/125	MM 62.5/125
Condition	mm	1310/1550	850/1300	850/1300
Attenuation	dB/km	≤0.36/0.22	≤3.0/1.0	≤3.0/1.0
Cladding diameter	um	125±1	125±1	125±1
Cladding non-circularity	%	≤1.0	≤1.0	≤1.0
Coating diameter	um	242±7	242±7	242±7

FAQ:

1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc

4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.

6.Can you supply customized products and logo?

A:Yes. We supply OEM service.

7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
