Name: 72 96 144 Core Air Blown Micro Fiber Optic Cable GCYFY
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: GCYFY/GCYFTY
Price: 1,249.28 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Count: 2-288 Cores

Fiber Type: Single Mode/multi Mode

Jacket: PE/PVC/LSZH

Color: Black

Product Name: Air-blown Micro Cable

Model Number: GCYFY/GCYFTY

Length: 2km Or Customized Length

Structure: Micro Cable

Installation: Aerial Or Duct

Number Of Conductors: ≥ 10

Highlight:

144 Core Fiber Optic Cable

LSZH Micro Fiber Optic Cable

Basic Infomation

Place of Origin: Guangzhou,China

Brand Name: JQ/OEM

Certification: ISO9001 ROHS CE-EMC FCC SDOC

Model Number: GCYFY/GCYFTY

Payment & Shipping Terms

Packaging Details: wooden drum

Delivery Time: 5-8 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 30km per day

Gallery

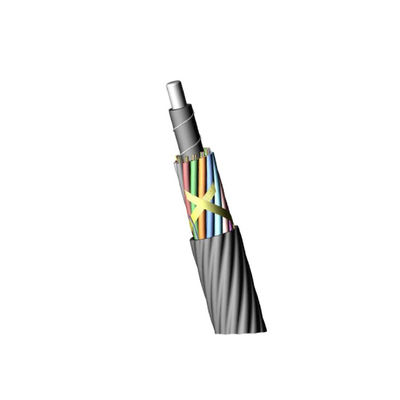

72 96 144 Core Air Blown Micro Fiber Optic Cable GCYFY

Product Description

Outdoor duct micro optical fiber cable GCYFY/GCYFTY air blown fiber cable

Product Description

1. Model: GCYFY

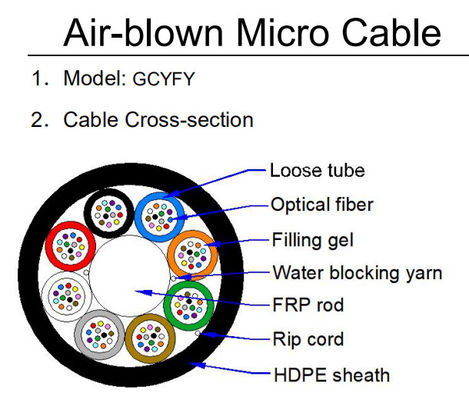

2. Cable Cross-section

72 96 144 Core Air Blown Micro Fiber Optic Cable GCYFY 0

Optical Characteristics

Item	Specification
Fiber type	G.652D
Attenuation
@ 1310 nm	≤0.36 dB/km
@ 1383 nm	≤0.35 dB/km
@ 1550 nm	≤0.22 dB/km
@ 1625 nm	≤ 0.30 dB/km
Cable Cut-off Wavelength(λcc)	≤1260 nm
Zero Dispersion Wavelength(nm)	1300 ~ 1324 nm
Zero Dispersion Slope	≤0.092 ps/(nm2.km)
Chromatic Dispersion
@ 1288 ~ 1339 nm	≤3.5 ps/(nm. km)
@ 1550 nm	≤18 ps/(nm. km)
@ 1625 nm	≤22 ps/(nm. km)
PMDQ	≤0.2 ps/km1/2
Mode Field Diameter @ 1310 nm	9.2±0.4 um
Core Concentricity Error	≤0.6 um
Cladding Diameter	125.0±0.7 um
Cladding Non-circularity	≤1.0%
Coating Diameter	245±10 um
Proof Test	100 kpsi (=0.69 Gpa), 1%

Fiber & Tube Color

Features

GCYFY loose-shell twisted air-blown micro-cable adopts non-metallic reinforcement and no armor structure, which can be hauled or air-blown micro-pipe in the outer protective tube that has been laid, and then air-blown The laying method breaks through the limitation of the existing pipeline cable laying technology, improves the utilization efficiency of the pipeline, and is easy to expand

Cable Parameters

Cores

Cores/tube

FRP diameter (mm)

Sheath thickness (mm)

Approx. overall diameter

(mm)

Approx.

weight (kg/km)

1.5

0.5±0.1

5.6

1.5

0.5±0.1

5.6

48	12	1.5	0.5±0.1	5.6	24
72	12	1.5	0.5±0.1	5.6	24
96	12	2.5	0.5±0.1	6.6	38

Working temperature	-35oC ~ +70oC
Storage and transportation temperature	-35oC~ +70oC
Installation temperature	-15oC~ +60oC

Product Detail

72 96 144 Core Air Blown Micro Fiber Optic Cable GCYFY 3

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
