Single Sheath G652D Span 100m Overhead Optical Fiber Cable

Minimum Order Quantity : 1KM Price : 288
Packaging Details : Wooden drum Delivery Time : 3-5 days
Payment Terms : L/C, T/T,Alipay Supply Ability : 4500km per month
Place of Origin: China

Detail Information

Brand Name: Jiqian Certification: ISO 9001
Model Number: ADSS -24B1 OEM: Available
Fiber Type: Single Mode Strength Yarn: Kevlar Yarn
Application: Overhead Packing: Wooden Drum
Storage Operating Temperature: -40 To +70 °C Manufacturer: Jiqian
Colour: Black
High Light:

Span 100m Overhead Fiber Optic Cable

,

single Sheath overhead optical fiber cable

,

Span 100m overhead optical fiber cable

Product Description

ADSS Single Sheath Overhead Span 100m Fiber Optic Cable

ADSS is one kind of loose tube stranded cable. 250μm's fibers are positioned in the loose tube which is made of high modulus plastics. The tubes are filled with a water-resistant filling compound. And we use the FRP(fiber reinforced plastic) as the central strength member. The loose tube with the fibers and the FRP are stranded together first, and then we use the PE sheath and the aramid yarn to protect the fibers. Because of the structure, ADSS cable have a very excellent performance during the storage, oprating and using.

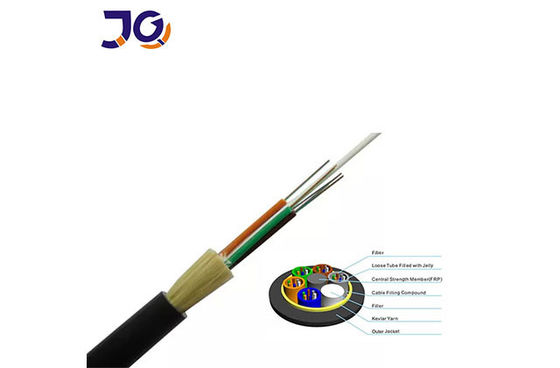

Single Sheath G652D Span 100m Overhead Optical Fiber Cable 0



Structure and Technical Specifications ADSS-SJ(50-150M)

Ref. Outer
Diameter
(mm)
Ref. Weight
(kg/km)

Rec. Daily Max.
Working Tension

(kN)

Max Allowable
Working Tension
(kN)

Break

Strength

(kN)

Strength

Member

CSA

(mm2)

Modulus of
Elasticity
CSA

(kN/mm2)

Heat

Expansion

Coefficient

(x10- 6/K)

Suitable Span
Meter
PE Jacket AT Jacket A B C D
11 110 120 1.0 2.5 8 3.0 6.6 2.1 120 80 100 80
11.5 115 125 1.5 4 10 4.5 7.3 1.8 180 120 150 120
12 120 130 2.5 6 15 7.5 8.3 1.5 250 150 290 150




Structure and Technical Specifications ADSS-DJ(50-750M)

Ref. Outer
Diameter
(mm)
Ref. Weight
(kg/km)

Rec. Daily Max.
Working Tension

(kN)

Max Allowable
Working Tension
(kN)

Break

Strength

(kN)

Strength

Member

CSA

(mm2)

Modulus of
Elasticity
CSA

(kN/mm2)

Heat

Expansion

Coefficient

(x10- 6/K)

Suitable Span
Meter
PE Jacket AT Jacket A B C D
12.5 125 136 1.5 4 10 4.6 7.6 1.8 160 100 140 100
13.0 132 142 2.25 6 15 7.6 8.3 1.5 230 150 200 150
13.3 137 148 3.0 8 20 10.35 9.45 1.3 300 200 290 200
13.6 145 156 3.6 10 24 13.8 10.8 1.2 370 250 350 250
13.8 147 159 4.5 12 30 14.3 11.8 1.0 420 280 400 280
14.5 164 177 5.4 15 36 18.4 13.6 0.9 480 320 460 320
14.9 171 185 6.75 18 45 22.0 16.4 0.6 570 380 550 380
15.1 179 193 7.95 22 53 26.4 18.0 0.3 670 460 650 460
15.5 190 204 9.0 26 60 32.2 19.1 0.1 750 530 750 510




FAQ:



1,Q:Are you a factory or trade company?
A:We are a factory


2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.

3.Q:Which brand of fiber do you use?

A:Corning,YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.


5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.
