Premium ADSS Double Sheath Fiber Optic Cable Span 400m 24 48 72 96 144 288 Core
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum/customized |
|---|---|---|---|
| Delivery Time : | 2-4days | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
| Supply Ability : | 4500km per Month |
| Place of Origin: | CHINA | Brand Name: | jiqian |
|---|---|---|---|
| Certification: | ISO9001,ROHS,CE,FCC SDOC | Model Number: | ADSS |
|
Detail Information |
|||
| Fiber Type: | G657A1/A2/G652D/G657A1/G657A2 | Oem: | Available |
|---|---|---|---|
| Application: | Aerial/duct | Number Of Conductors: | 4-144core |
| Structure: | Stranded Loose Tube | Operating Temperature: | -40 ~ +60 C |
| Central Strength Member: | FRP | Span: | 100/200/300/400m |
| High Light: | 12Core Self Supporting Fiber Optic Cable,12Core all dielectric fiber optic cable,G652D Self Supporting Fiber Optic Cable |
||
Product Description

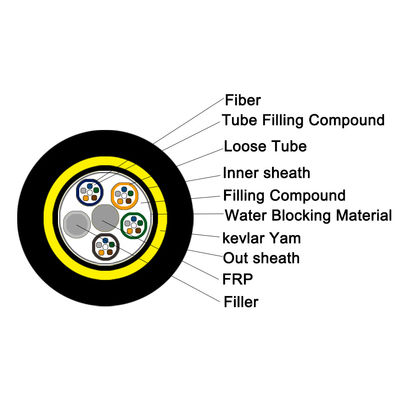

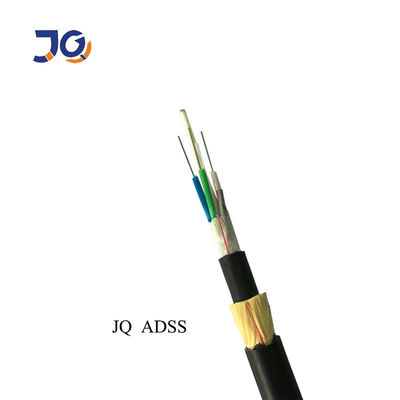

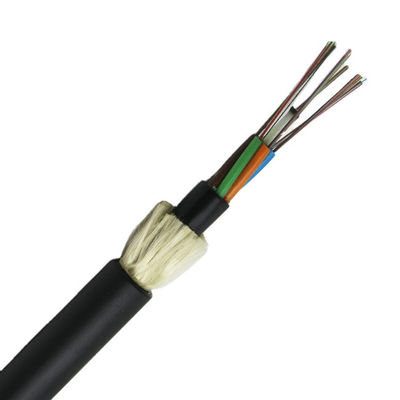

ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound.The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Features:
Can be installed without shutting off the power.
Excellent mechanical performance.
Good performance of tensile strength and temperature.
Light weight and small diameter reducing the load caused by ice/wind, as well as the load on towers
and backprops.
Long life span time over 30 years.
Applications:
Widely used in self support aerial / overhead.
Optical Performance:
| Fiber Type | G.652D,125.0+-1.0μm |
| Mode Field Diameter | 9.2+-0.2μm at 1310 nm |
| Cladding Diameter | 125+-1μm |
| Cladding Non-Circularity | <=1% |
| Coating Diameter | 245+-10μm |
| Attenuation Coefficient | <=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm |
| Chromatic Dispersion | <=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm |
| Zero Disperson Wavelength | 1300-1322nm |
| PMD Coefficient | <=0.2ps/√km |
Cable Parametres:
| Model No. | ADSS |
| Fiber count | 2-144 cores |
| Fiber type | SM G652D |
| Central Strangth member | FRP |
| Loose tube | PBT |
| Type of filling compound | Jelly |
| Water-blocking system | Water blocking tape |
| Strength member | Kevlar yarn |
| Inner sheath | PE |
| Outer sheath | PE/AT |
| Applicantion | Overhead;Ariel for telecommunication |
Packing:
Each single length of cable shall be reeled on Fumigated Wooden Drum suitable for long distance shipment.
Covered by plastic buffer sheet.
Sealed by strong wooden battens.
At least 1 meter inside end of cable will be reserved for testing.
