Factory Price GCYFY Air-Blast Duct Micro Single-Mode Optical Fiber Cables 4 6 12 24 48 96 144 288 Sizes Used for FTTH
Contact Person : JQ CABLE
Phone Number : +8618122383351
whatsapp : +8618122383351
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T |
| Supply Ability : | 30KM Per days |
| Place of Origin: | Guangzhou,China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | GYFXTY-12B1 |
|
Detail Information |
|||
| Fiber Type: | Single Mode G652D | Jacket Material: | PE/MDPE |
|---|---|---|---|
| Strength Member: | FRP | Cable Diameter: | 6.0-9.0 Mm |
| Color: | Black | Storage/Operation: | -40℃~+70℃ |
| Application: | Aerial/Duct | Fiber Count: | 2/4/6/8/12 Core |
| Type: | Singlemode & Multimode | Length: | 2km Or Customized Length |
| Highlight: | GYFXTY 4 Core Outdoor Fiber Optic Cable,FRP 4 Core Outdoor Fiber Optic Cable,2km GYFXTY-12B1 Fiber Optical Cable |
||
Product Description

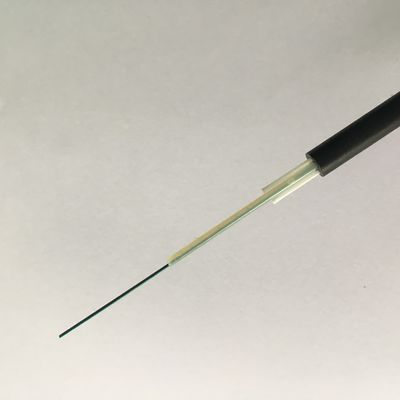

4 Core FRP strengthen loose tube outdoor cable GYFXTY Non-Metallic Optic Fiber Cable
Product Description

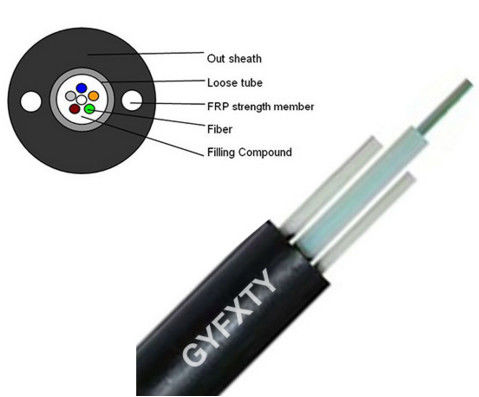

The fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of water blocking system. Two parallel FRP are placed at the two sides.
The cable is completed with a polyethylene (PE) sheath.
Features
Good mechanical and temperature resistant performance.
Uni-tube gel-filled construction for superior fiber protection.
Two parallel steel wires ensure tensile strength.
PE sheath protects cable from ultraviolet radiation.
Light weight and small diameter, easy to installation and operation.
Optical Characteristics:
|
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
Attenuation(+20C) |
@850nm |
|
|
≤3.0dB/km |
≤3.0dB/km |
|
@1300nm |
|
|
≤1.0dB/km |
≤1.0dB/km |
|
|
@1310nm |
≤036dB/km |
≤0.40dB/km |
|
|
|
|
@1550nm |
≤0.22dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth(ClassA) |
@850nm |
|
|
≤2500MHz-km |
≥2200MHz.km |
|
@1300nm |
|
|
≤1000MHz.km |
≥2600MHz-km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.15NA |
|
|
CableCut-off Wavelength |
≤1260m |
≤1480nm |
|
|
|
Structure and Technical Specification OF GYFXTY
|
Fiber count |
Cable diameter(mm) |
Nominal weight(KGS) |
AllowableTensileLoad(mm) |
AllowableCrushResistance(N/100m) |
||
|
Short term |
Long term |
Short term |
Long term |
|||
|
2-12 |
8.0 |
60 |
800N |
400N |
1000N/100m |
300N/100m |
Package
Packed in enclosed fumigated wooden drum,1/2/3/4/5km per drum ,customer's requirements are also welcomed;
Shipping way
For large orders: by sea (LCL or FCL)
For small orders: by sea (LCL), by air or by courier services(DHL ,UPS,TNT.....)
