GYTA Armored Optical Fiber Cable 2 144 Cores Stranded Loose Tube Direct Burial Duct

1 Kilometer
MOQ
GYTA Armored Optical Fiber Cable 2 144 Cores Stranded Loose Tube Direct Burial Duct
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Outdoor Fiber Optic Cable
Place Of Origin: Guangdong, China
Fiber Type: G652D Single Mode Or As Your Request
Fiber Count: 2-144 Cores
Tube: Multi-Loose Tube
Armoured: Aluminum Tape
Outer Sheath: PE Or As Your Request
Package: Wooden Drum/Customized
Highlight:

armored fiber optic cable 144 cores

,

direct burial fiber optic cable

,

loose tube outdoor fiber cable
Basic Infomation
Place of Origin: Guangdong，China
Brand Name: JQ/OEM/Customize
Certification: CE/ISO9001/RoHS/FCC
Model Number: GYTA 12core/24core/48core
Payment & Shipping Terms
Packaging Details: Wooden Drum
Delivery Time: 2-5days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 8000 kilometers per month
Product Description

GYTA Armored Outdoor Fiber Optic Cable – Aluminum Tape Moisture-Proof

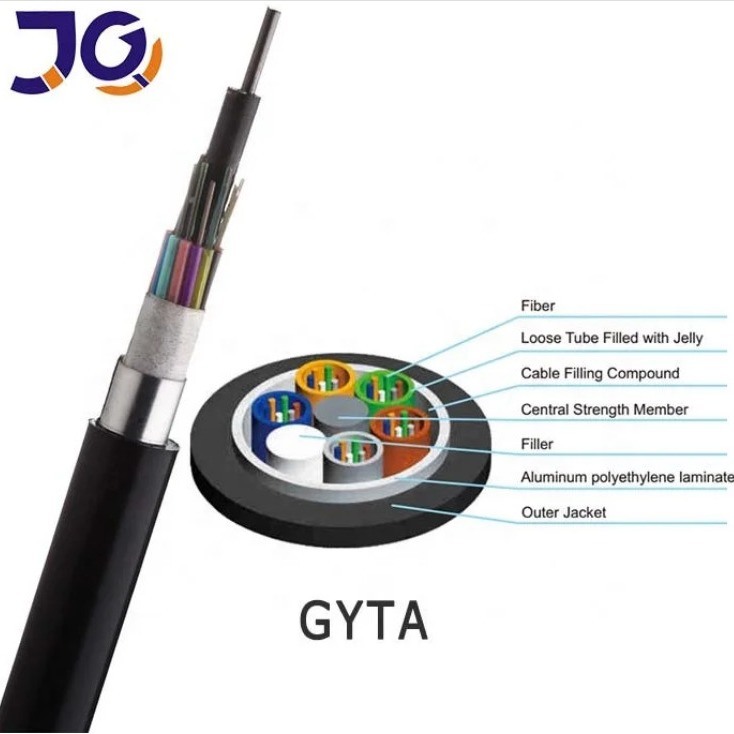

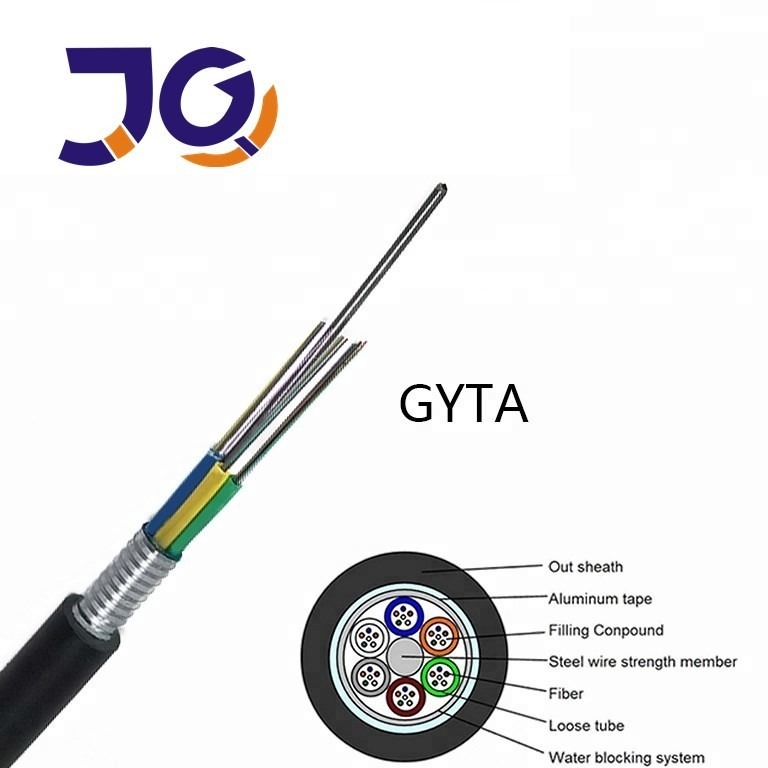

GYTA fiber optic cable features stranded loose tubes around a reinforced steel core, with an aluminum-polyethylene laminate and MDPE outer jacket for excellent moisture and corrosion protection. Ideal for aerial and duct installations, it ensures reliable long-distance performance.

Key Features:

  • High mechanical strength: tensile, crush, and environmental resistance

  • Reinforced central steel member with optional PE coating

  • Water-blocking gel prevents moisture penetration

  • Aluminum tape with PE provides strong radial protection

  • Long service life and stable optical performance

  • Suitable for telecom backbones, metropolitan networks, CATV, and high-speed data transmission

Specification:

item value
Model Number GYTA
Type Outdoor Fiber Optic Cable
Place of Origin Guangdong,China
Brand Name jiqian
Number of Conductors ≥ 10
Fiber count 2-288 Cores
Fiber Type G652D Single mode or as your request
Loose tube material PBT
Central strength member steel wire
Armoured Al tape
Outer Sheath PE
Cable Structure Multi-Loose Tube Aluminum/Steel Tape armor
Color Black or as your need
Package Fumigation free wooden drum
Installation aerial, in duct
Certification CE/ROHS/ISO9001 /ANATEL
OEM Available


Structure and Technical Specifications:

Fiber Nominal Nominal Max Fiber Max No. Allowable Tensile Allowable Crush
Count Diameter Weight Per Tube of(Tubes+ Load(N) Resistance(N/100mm)
  (mm) (kg/km)   fillers) Short Term Long Term Short Term Long Term
2~36 10.3 109 6 6 1500 600 1000 300
38~72 11.5 145 12 6 1500 600 1000 300
74~96 13.5 175 12 8 1500 600 1000 300
98~120 14.8 209 12 10 1700 600 1000 300
122~144 16.6 249 12 12 2000 600 1000 300
146~216 16.7 254 12 18(2 layers) 2000 600 1000 300
218~288 19 325 12 24(2 layers) 2500 600 1000 300



GYTA Armored Optical Fiber Cable 2 144 Cores Stranded Loose Tube Direct Burial Duct 0

Certification:

GYTA Armored Optical Fiber Cable 2 144 Cores Stranded Loose Tube Direct Burial Duct 1



FAQ

1. Who are we?
Professional fiber optic cable manufacturer in Guangdong, China, founded in 2017. Main markets: Africa 33%, South America 17%, Europe 17%, Middle East 17%, Southeast Asia 9%, South Asia 7%. Team: 11–50 employees.

2. How do we ensure quality?
Pre-production samples and strict final inspections before shipment.

3. What products do we supply?
Fiber optic cables, FTTH drop cables, communication cables, indoor/outdoor fiber cables.

4. What services do we provide?
Delivery: FOB, EXW. Payment: T/T, L/C, PayPal, Western Union, etc. Languages: English, Chinese.

5. MOQ?
1 KM

6. Can I request a sample?
Yes, free samples; pay only for shipping.

7. Do you accept OEM/ODM?
Yes, supported by in-house engineering team.

8. Delivery time?
3–7 days after order confirmation, depending on size and specifications.
