SC FC LC ST Fiber Optic Patch Cord

Minimum Order Quantity : 1km Packaging Details : Export Cartoon box
Delivery Time : 5-8 work days Payment Terms : Western Union, T/T, L/C,Alipay
Supply Ability : 1000pcs per day
Place of Origin: Guangzhou, China Brand Name: jiqian
Certification: ISO 9001 Model Number: SC- Patch Cord

Detail Information

Connector Type: SC-LC Or Hybrid Material: PVC/LSZH
Color: Yellow Item: Optical Fiber Patch Cord
Repeatability: ≤ 0.2 DB Fiber Count: Simplex Or Duplex
Fiber Type: SM Or MM Quality Control: 100% Test Before Shipping
Real Factory: Yes Insertion Loss: 0.2dB
High Light:

SC FC LC ST Fiber Optic Patch Cord

,

0.2dB ST Fiber Optic Patch Cord

,

0.2dB fiber optic patchcord

Product Description

SC FC LC ST CONNECTORS SM/MM FIBER OPTIC PATCHCORD



Description:

Fiber optic pigtail is a piece of optical cable with connectors only on one side of the cable; it is as simple as that. Fiber pigtails types are dependent on the connector types and the fiber optic cable. Usually the fiber optic pigtail is with 0.9mm outer diameter cable. Pigtails are usually used inside the fiber optic management equipment, the connectors on the pigtail can link to the adapter or other devices, the other end of the pigtail which does not contain the connectors, is used to link bare fiber via fusion splicing.

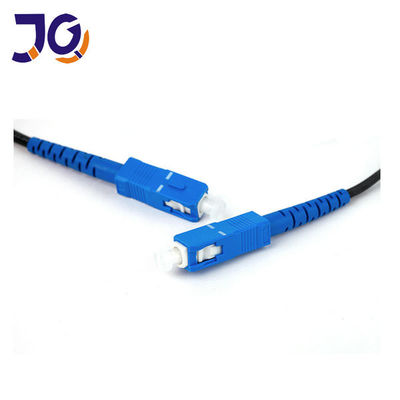

SC FC LC ST Fiber Optic Patch Cord 0

Products feature:

Low Insertion loss

High return loss

Good Repeatability

Good Interchange

Excellent Environmental Adaptability







Optical Characteristics

Mode SM MM
Polish UPC APC APC
Insertion Loss Typical ≤0.2dB Maximum ≤0.3dB ≤0.25dB
Return Loss ≥50dB ≥65dB ≥35dB
Interchangeability ≤0.2dB
Repeatability ≤0.1dB
Durability ≤0.2dB(1000 times mating)
Tensile Strengh >10kg
Temperature ≤0.2dB (-40+85 sustain 100 hours)
Humidity ≤0.2dB(+25+65 93 R.H.100 hours)







Technical Data



Type



Standard,Master



Style



LC,SC,ST,FC.MU,DIN,MPO,SC/APC,

FC/APC,LC/APC.MU/APC



Fiber



Singlemode/Multimode

50/125,62.5/125(Multi mode) OM2&OM1

50/125,10G(Multi mode)OM3



Cable



Simplex,Duplex

outer diameter:3.0mm,20mm,0.9mm

PVC or LSZH



Polishing Manner



UPC,SPC,APC(8°&6°)



Insertion Loss



≤0.1dB  (For Single mode Master)

≤0.25dB (For Single mode Standard)

≤0.25dB (ForMultimode)

Tested by JDSRM3750



                                    Return Loss

                                  (Single mode)



UPC≥50dB

SPC≥55dB

APC≥60dB (typ.65dB)

Tested by JDSRM3750



Repeat ability



0.1dB



Operating temperature



-400 C° to 850 C°



                          Geometry Requirement

                               (Single mode)



Ferrule Endface Radius

7mm≤R≤12mm (For APC)

10mm≤R≤25mm (For Standard)

Apex Offset≤30μm (For Master)

Apex Offset≤50μm (For Standard)

Under cut-50nm SU≤50nm

Tested by DORCZX-1



Application

Communication rooms

FTTH (Fiber to The Home)

LAN  (Local Area Network)

FOS(fiber optic sensor)

Fiber Optic Communication System

Optical fiber connected and transmitted equipment

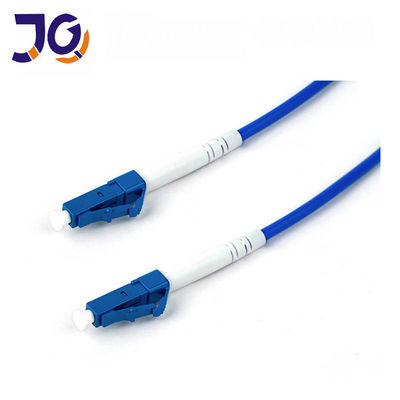

SC FC LC ST Fiber Optic Patch Cord 1









Packing & Delivery



Packing:100/Pcs in one Carton box or OEM.

Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc

Deliverty: 3-5 days after payment dowm,According to ur order quantity.

SC FC LC ST Fiber Optic Patch Cord 2



FAQ

1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
