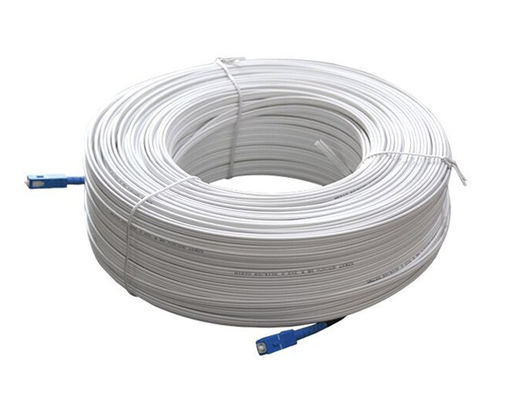

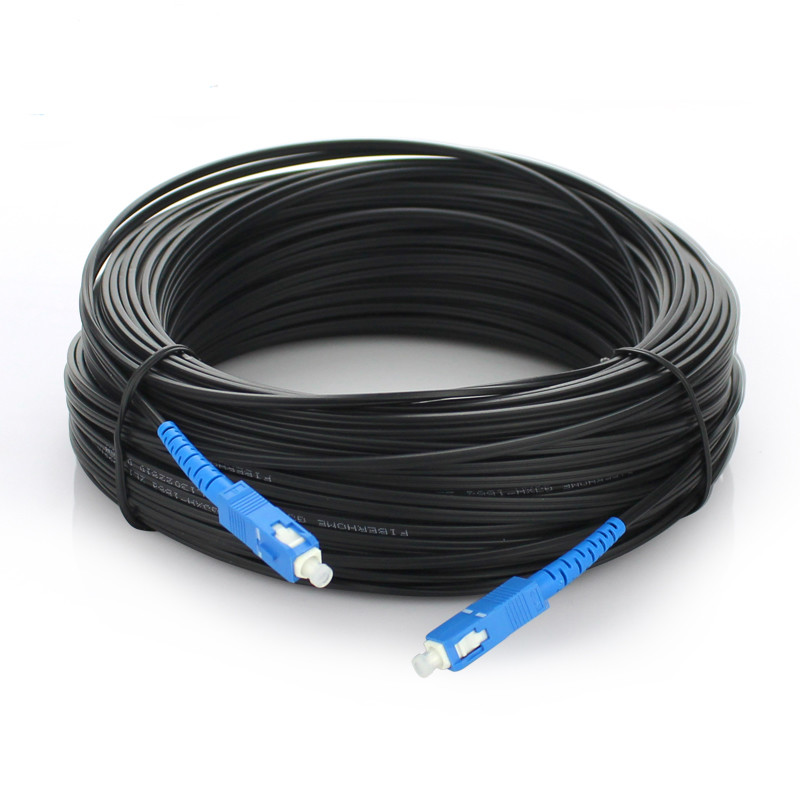

SC/UPC-SC/APC Singlemode Multimode Fiber Optic Patch Fiber Pigtail 3m 5m 10m 3.0mm LSZH
Contact Person : JQ CABLE
Phone Number : +15079563166
whatsapp : +15079563166
Minimum Order Quantity : | 1000m | Packaging Details : | package carton |
---|---|---|---|
Delivery Time : | 2-4day | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
Supply Ability : | 100km per 2 day |
Place of Origin: | CHINA | Brand Name: | jiqian |
---|---|---|---|
Certification: | ISO | Model Number: | GJXH GJXCH GJXFXCH |
Detail Information |
|||
Material: | LSZH /PVS | Fiber Type: | G657A1/A2/G652D/G657A1/G657A2 |
---|---|---|---|
Color: | White /black | Central Strength Member: | FRP Strength Member/steel Wire |
Oem: | Available | Installation: | FTTH |
Highlight: | SC/UPC-SC/APC Fiber Optic Patch Cord,G657A FRP Fiber Optic Patch Cord,G657A FRP outdoor fiber patch cord |
Product Description
Features:
1. High bandwidth and excellent communication transmission property;
2. Two parallel FRP strength members make sure good performance of crush resistance to protect the fiber.
3. Simple structure, light weight and high performance;
4. Low smoke zero halogen and flame retardant sheath.
Applications:
1. Optical fiber pigtail, also named
2. CATV
3. Optical fiber communication systems
4. Optical fiber data transmission
5. Building network access
Specifications
Connectors type
|
SC/UPC, SC/APC
|
Cable
|
FTTH Indoor/Outdoor Cable 10/20/30/50/80/100/200M Length
|
Fiber Type
|
G657A1/A2
|
Cable Color
|
Black, White
|
Insertion loss
|
≤0.3 dB
|
Return loss
|
≥45dB
|
Joint endurance
|
>1000Times
|
Operating Temperature
|
-40ºC~+60ºC
|
Storage Temperature
|
-40ºC~+60ºC
|
|
