SC/UPC-SC/APC Singlemode Multimode Fiber Optic Patch Fiber Pigtail 3m 5m 10m 3.0mm LSZH
Contact Person : JQ CABLE
Phone Number : +15079563166
whatsapp : +15079563166
| Minimum Order Quantity : | 50PCS | Packaging Details : | 100PCS In One Export Cartoon box |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | Western Union, T/T, L/C,Alipay |
| Supply Ability : | 5000pcs per day |
| Place of Origin: | Guangzhou, China | Brand Name: | jiqian |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | SM-SX Patch Cord |
|
Detail Information |
|||
| Material: | PVC/LSZH | Color: | Yellow |
|---|---|---|---|
| Item: | Optical Fiber Patch Cord | Repeatability: | ≤ 0.2 DB |
| Fiber Count: | Simplex Or Duplex | Fiber Type: | SM Or MM |
| Quality Control: | 100% Test Before Shipping | Real Factory: | Yes |
| Connector Type: | SC/FC/LC/ST/MU/DIN/D4/MTRJ/MPO | Length: | 1m 2m 3m Or Customized |
| Product Name: | Fiber Optic Patch Cord | ||
| Highlight: | 1m yellow fiber patch cord,1m 2m 3m Fiber Optic Patch Cord,2m yellow fiber patch cord |
||
Product Description
Singlemode/Multimode Simplex/Duplex SC/FC/LC/ST/MTRJ/MU/DIN Connector Fiber Optic Patch Cord
Product Description
fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected toCATV,an optical switch,or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter,optical receiver,and terminal box.This is known as "interconnect-style cabling".Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state of the art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.
Feature
Low Insertion loss
High return loss
Good Repeatability
Good Interchange
Excellent Environmental Adaptability
Optical Characteristics
|
Parameter |
PC |
UPC |
APC |
Multi-mode |
|
Insertion loss |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.3dB |
|
Return loss |
≥40dB |
≥50dB |
≥60dB |
≥35dB |
|
Exchange |
≤0.2dB |
|||
|
Repeatability |
≤0.2dB |
|||
|
Servicelife |
>1000times |
|||
|
Tensile strength |
>10kg |
|||
|
Temperature range |
-40°C to +85°C |
|||
Technical Data
|
Type |
Standard,Master |
|
Style |
LC,SC,ST,FC.MU,DIN,MPO,SC/APC, FC/APC,LC/APC.MU/APC |
|
Fiber |
Singlemode/Multimode 50/125,62.5/125(Multi mode) OM2&OM1 50/125,10G(Multi mode)OM3 |
|
Cable |
Simplex,Duplex outer diameter:3.0mm,20mm,0.9mm PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC(8°&6°) |
|
Insertion Loss |
≤0.1dB (For Single mode Master) ≤0.25dB (For Single mode Standard) ≤0.25dB (ForMultimode) Tested by JDSRM3750 |
|
Return Loss (Single mode) |
UPC≥50dB SPC≥55dB APC≥60dB (typ.65dB) Tested by JDSRM3750 |
|
Repeat ability |
≤0.1dB |
|
Operating temperature |
-400 C° to 850 C° |
|
Geometry Requirement (Single mode) |
Ferrule Endface Radius 7mm≤R≤12mm (For APC) 10mm≤R≤25mm (For Standard) Apex Offset≤30μm (For Master) Apex Offset≤50μm (For Standard) Under cut-50nm SU≤50nm Tested by DORCZX-1 |
Application
Communication rooms
FTTH (Fiber to The Home)
LAN (Local Area Network)
FOS(fiber optic sensor)
Fiber Optic Communication System
Optical fiber connected and transmitted equipment

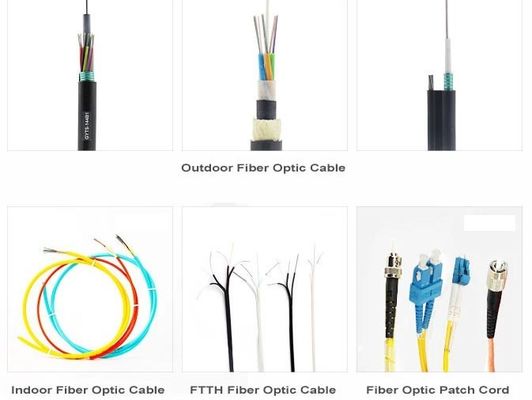

Recommed Products
Packing & Delivery
Packing:100/Pcs in one Carton box or OEM.
Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc
Deliverty: 3-5 days after payment dowm,According to ur order quantity.
Factory Pictures
FAQ
