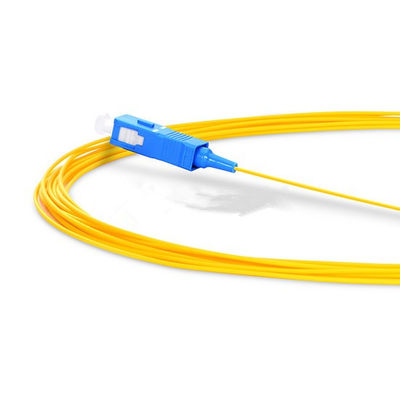

SC/UPC-SC/APC Singlemode Multimode Fiber Optic Patch Fiber Pigtail 3m 5m 10m 3.0mm LSZH
Contact Person : JQ CABLE
Phone Number : +15079563166
whatsapp : +15079563166
| Minimum Order Quantity : | 100pcs | Packaging Details : | package carton |
|---|---|---|---|
| Delivery Time : | 2-4day | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
| Supply Ability : | 100km per 2 day |
| Place of Origin: | CHINA | Brand Name: | jiqian |
|---|---|---|---|
| Certification: | ISO | Model Number: | fiber pigtail |
|
Detail Information |
|||
| Material: | LSZH /PVC | Cable Diameter: | 0.9/2.0/3.0mm |
|---|---|---|---|
| OEM & Custom: | Support | Fiber Type: | SM,MM(50/125um,62.5/125um) |
| Inserted Core Cover: | PC,APC | Product Name: | Sc Upc/apc 0.9mm/2.0mm/3.0mm Fiber Pigtail |

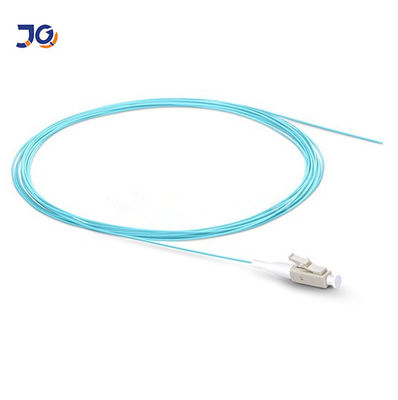

| Highlight: | 0.9MM Fiber Optic Patch Cord Pigtail,1.5M Fiber Optic Patch Cord Pigtail |
||
Product Description
Application
1.Fiber Optic telecommunications
2.Lan(Local Area network)
3.FTTH (Fiber to the home)
4.CATV & CCTV
5.High Speed transmission systems
6.Fiber optic sensing
Parameter
| Parameter | Unit | Standard & Requirement | |||
| PC(SM) | UPC(SM) | APC(SM) | PC(MM) | ||
| Insertion Loss (Typical) | dB | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 | ≥35 |
| Mechanical Endurance (500T) | dB | ≤0.2 | |||
| Exchangeability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Vibration | dB | ≤0.2 | |||
| Operating Temperature | °C | -40 ~+75 | |||
| Storage Temperature | °C | -45 ~+85 | |||
| Cable Diameter | mm |
3.0, 2.0, 0.9
|
|||
