0.9mm IL≤0.2dB SC Single Mode Fiber Pigtails

Minimum Order Quantity : 50PCS Packaging Details : PE bag or plastic box and Cartoon box
Delivery Time : 3-5 work days Payment Terms : Western Union,T/T, L/C
Supply Ability : 30000pcs per day
Place of Origin: Guangzhou, China Brand Name: JQ/OEM
Certification: ISO 9001 Model Number: Fiber Optic Pigtail

Detail Information

Application: FTTH FTTB FTTX Network Connector Type: SC UPC/APC
Length: Can Be Customized Color: Customized
Cable Diameter: 0.9/2.0/3.0mm Ferrule End-face: PC/UPC/APC
Jacket Material: PVC/LSZH/PE Product Name: Fiber Optic Pigtail
Insertion Loss: IL&lt≤0.2dB
High Light:

0.2dB Single Mode Fiber Pigtails


0.9mm SC Single Mode Fiber Pigtails


0.2dB optical fiber pigtail

Product Description

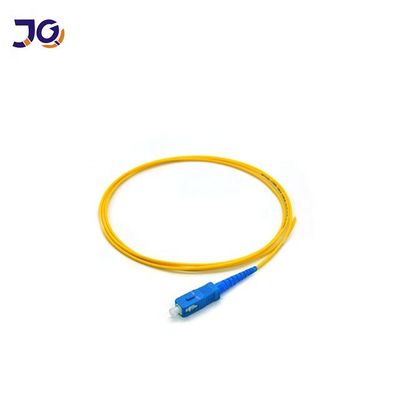

SC-APC/UPC Fiber Optic Pigtail 0.9mm IL0.2dB Single Mode Fiber Optic Pigtail
Product Description
Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.4, 6, 8, 12, 24, 48 Single mode or multi mode fibers optional.Fiber optic pigtail are suited for equipment jumper cord, cross connects, and work area connections. All patch cables are manufactured using riser grade cable and are factory tested to make sure performance to meet Telcordia standards.

SC, LC, FC, MU, ST, MT-RJ, E2000 connector available.
Superior qualified standard PC, APC, UPC, SPC polishing.

CSingle mode or multi mode,able size: Φ 0.9mm, Φ2.0mm, Φ3.0mm

Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available.
Available in fiber bunch, ribbon fan-out, pigtail available.
Simplex and duplex connector available.

Applicable connector: FC, SC, ST, LC…
Cable material: PVC or LSZH.OM1, OM2 or OM3 optional
Good exchange ability and good durability.
Customized specifications are welcomed.



Fiber Optic telecommunications

Lan(Local Area network)

FTTH (Fiber to the home)


High Speed transmission systems

Fiber optic sensing


Optical Characteristics

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 oM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable oD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
nti-tensile Force (N) >70
remperature Range (c) -40r+80



Detailed Image
0.9mm IL≤0.2dB SC Single Mode Fiber Pigtails 0
0.9mm IL≤0.2dB SC Single Mode Fiber Pigtails 1
0.9mm IL≤0.2dB SC Single Mode Fiber Pigtails 2
0.9mm IL≤0.2dB SC Single Mode Fiber Pigtails 3

0.9mm IL≤0.2dB SC Single Mode Fiber Pigtails 4


1.Are you the real manufacturer?

Yes.  We are the real manufacturer  with 10 years’ history.


2.Can you accept small order?

Yes, small order is available .We support new project of our customers as we know business is always from small order.


3.What is your warranty period?

25 years for fiber optic cable


4.What is your delivery time?

Usually within 3-5 working days


5.What about your annual production capacity?

Outdoor/Indoor Fiber Optic Cable, our annual output is 6,000,000 KM;

FTTH/FTTX/FTTA Cable, it is 6,000,000 KM per year;

Patch Cord/Pigtails, it is 12,400,000 Pieces per year.


6.Can you supply customized products and logo?

-Yes. We supply OEM&ODM service. You can send us your drawing.
