Name: Singlemode 0.9mm Simplex 1.5M SC Fiber Pigtail
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: fiber pigtail
Price: 3.20 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Material: LSZH /PVC

Cable Diameter: 0.9/2.0/3.0mm

OEM & Custom: Support

Fiber Type: SM,MM(50/125um,62.5/125um)

Inserted Core Cover: PC,APC

Product Name: Sc Upc/apc 0.9mm/2.0mm/3.0mm Fiber Pigtail

Highlight:

0.9mm 1.5M SC fiber pigtail

Simplex 1.5M SC fiber pigtail

0.9mm 1.5M single mode pigtail

Basic Infomation

Place of Origin: CHINA

Brand Name: jiqian

Certification: ISO

Model Number: fiber pigtail

Payment & Shipping Terms

Packaging Details: package carton

Delivery Time: 2-4day

Payment Terms: Western Union, T/T, L/C

Supply Ability: 100km per 2 day

Gallery

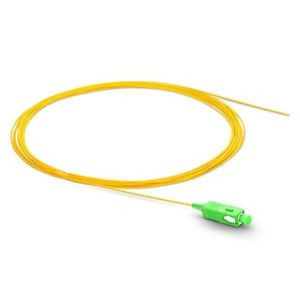

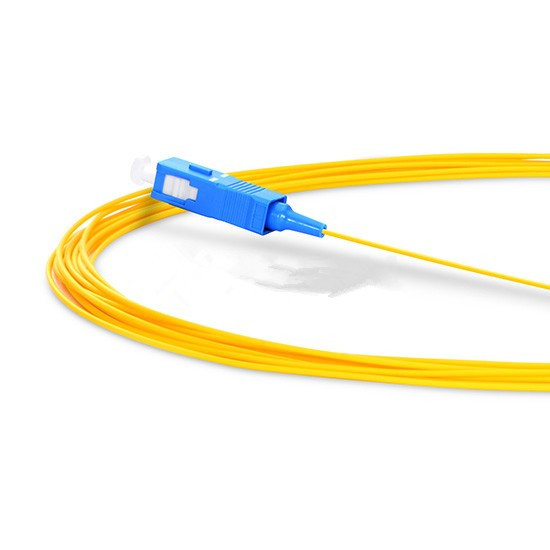

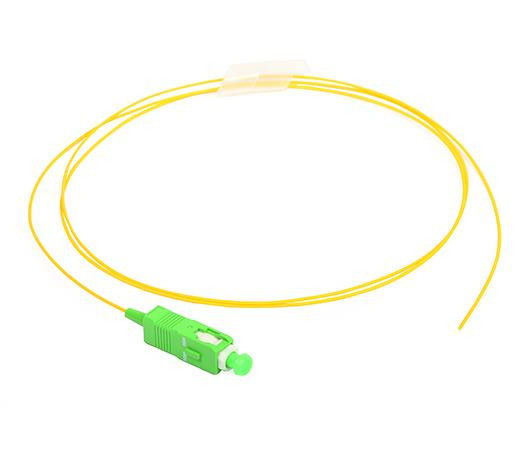

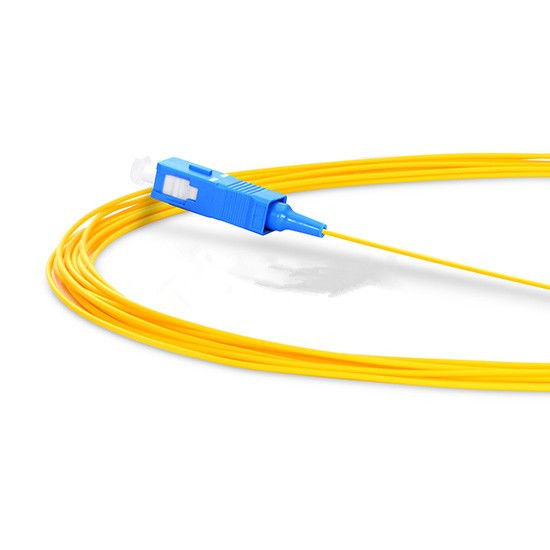

Singlemode 0.9mm Simplex 1.5M SC Fiber Pigtail

Product Description

Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.

Features:
1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
2. Superior qualified standard PC, APC, UPC, SPC polishing;
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;
8. Customized specifications are welcomed.

Performance Index:

Item	SM(Single Mode)			MM(Multimode)
Fiber Cable Type	G652D/G655/G657A1/G657A2			OM1	OM2/OM3/OM4
Fiber Diameter (um)	9/125			62.5/125	50/125
Cable OD (mm)	0.9/1.6/1.8/2.0/2.4/3.0
Endface Type	PC	UPC	APC	UPC	UPC
Typical Insertion Loss (dB)	<0.2	<0.15	<0.2	<0.1	<0.1
Return Loss (dB)	>45	>50	>60	/
Insert-pull Test (dB)	<0.2		<0.3	<0.15
Interchangeability (dB)	<0.1		<0.15	<0.1
Anti-tensile Force (N)	>70
Temperature Range (℃)	-40~+80

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact.
