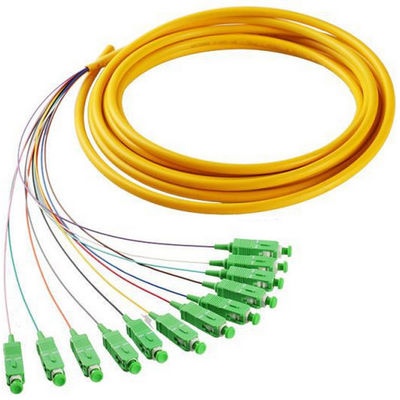

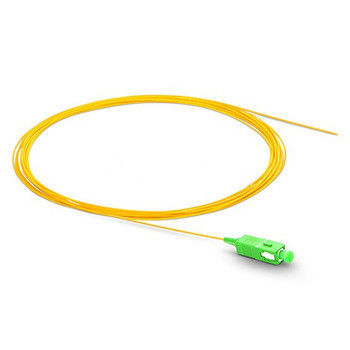

SC/UPC-SC/APC Singlemode Multimode Fiber Optic Patch Fiber Pigtail 3m 5m 10m 3.0mm LSZH
Contact Person : JQ CABLE
Phone Number : +15079563166
whatsapp : +15079563166
Minimum Order Quantity : | 100pcs | Packaging Details : | package carton |
---|---|---|---|
Delivery Time : | 2-4day | Payment Terms : | Western Union, MoneyGram, T/T, L/C |
Supply Ability : | 1000 pcs per 2 day |
Place of Origin: | CHINA | Brand Name: | jiqian |
---|---|---|---|
Certification: | ISO | Model Number: | fiber pigtail |
Detail Information |
|||
Material: | LSZH /PVC | Cable Diameter: | 0.9/2.0/3.0mm |
---|---|---|---|
OEM & Custom: | Support | Fiber Type: | SM,MM(50/125um,62.5/125um) |
Color: | Orange, Yellow, Blue, Aqua | Use: | FTTH |
Highlight: | 62.5/125um Fiber SC APC Pigtail,OEM FTTH SC APC Pigtail,62.5/125um optical fiber pigtail |
Product Description
Item
|
SM(Single Mode)
|
MM(Multimode)
|
|||
Fiber Cable Type
|
G652D/G655/G657A1/G657A2
|
OM1
|
OM2/OM3/OM4
|
||
Fiber Diameter (um)
|
9/125
|
62.5/125
|
50/125
|
||
Cable OD (mm)
|
0.9/1.6/1.8/2.0/2.4/3.0
|
||||
Endface Type
|
PC
|
UPC
|
APC
|
UPC
|
UPC
|
Typical Insertion Loss (dB)
|
<0.2
|
<0.15
|
<0.2
|
<0.1
|
<0.1
|
Return Loss (dB)
|
>45
|
>50
|
>60
|
/
|
|
Insert-pull Test (dB)
|
<0.2
|
<0.3
|
<0.15
|
||
Interchangeability (dB)
|
<0.1
|
<0.15
|
<0.1
|
||
Anti-tensile Force (N)
|
>70
|
||||
Temperature Range (℃)
|
-40~+80
|
