2km Span 100M PE Jacket Self Supporting Aerial Cable

Contact Now

2km Span 100M PE Jacket Self Supporting Aerial Cable

Name: 2km Span 100M PE Jacket Self Supporting Aerial Cable
Brand: JQ/OEM
SKU: ADSS-DJ
Rating: 4.9 (163 reviews)

Minimum Order Quantity :	1km	Packaging Details :	wooden drum
Delivery Time :	5-8 work days	Payment Terms :	L/C, T/T, Western Union
Supply Ability :	4500KM Per Month

Place of Origin:	Guangzhou	Brand Name:	JQ/OEM
Certification:	ISO9001	Model Number:	ADSS-DJ

Detail Information
Fiber Type:	YOFC Or Fiberhome As Request	Fiber Count:	2-144 Core
Color:	Black,Customized	Length:	2km Or Customized Length
Jacket Material:	PE Or AT	Name:	ADSS Optical Fiber Cable
Strength Member:	FRP Central Strength Member	Operating Temperature:	-40 ~ +60 C
Span:	50/100/200/300/400m	Installation:	Self- Supporting Aerial
High Light:	OEM Span 100M Self Supporting Aerial Cable , PE Jacket Self Supporting Aerial Cable , Span 100M self supporting fiber optic cable

Product Description

ADSS Fiber Cable Span 100M with PE Jacket Self-supporting Aerial Cable

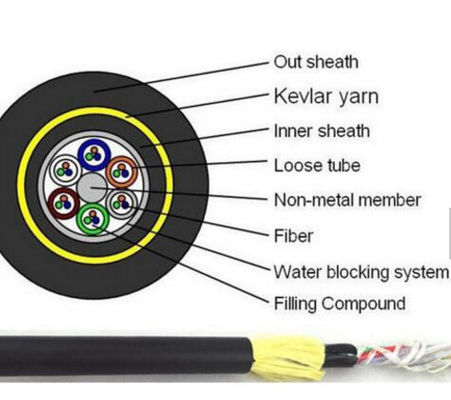

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes arefilled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking)

outer sheath.

2km Span 100M PE Jacket Self Supporting Aerial Cable 0

Features

Crush resistance and flexibility,The following measures are taken to ensure the cable watertight

100% cable core filling,Loose tube filling compound

Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Single Fiber Reinforced Plastic as the central strength member

Optical Characteristics

Items		Unit	Specification
Items		Unit	G652D
Mode Field Diameter	1310nm	um	9.2±0.4
Mode Field Diameter	1550nm	um	10.4±0.5
Cladding Diameter		um	124.8±0.7
Cladding Non-Circularity		%	≤0.7
Core-Cladding Concentricity Error		um	≤0.5
Coating Diameter		um	245±5
Coating Non-Circularity		%	≤6.0
Cladding-Coating Concentricity Error		um	≤12
Cable Cutoff Wavelength		nm	acc≤1260
Attenuation(max.)	1310nm	dB/km	≤0.36
Attenuation(max.)	1550nm	dBkm	≤0.22

Technical Data

Structure and Technical Specifications ADSS-DJ(50-500m Span)

Ref.Outer

Diameter

(mm)

Ref.Weight

kg/km)

Rec.DailyMax.

Working

Tension(kN)

Max

Allowable

Working

Tension

[kN)

Break

Strength

(kN)

Strength

Member

CSA.

(kN/mm2)

Modulusof

Elasticity

CSA

kNmm2)[

Heat

Expansion

Coefficient

(X10-6/K)

SuitableSpan

Meter

ABICP

12.5

125

136

1.5

4.6

7.6

1.8

160

100

140

100

13.0

132

142

2.25

7.6

8.3

1.5

230

150

200

150

13.3

137

148

3.0

10.35

9.45

1.3

300

200

290

200

13.6

145

156

3.6

13.8

10.8

1.2

370

250

350

250

13.8

147

159

4.5

14.3

11.8

1.0

420

280

400

280

14.5

164

177

5.4

18.4

13.6

0.9

480

320

460

320

14.9

171

185

6.75

22.0

16.4

0.6

570

380

550

380

15.1

179

193

7.95

26.4

18.0

0.3

670

460

650

460

15.5

190

204

9.0

|60

32.2

19.1

0.1

750

530

750

510

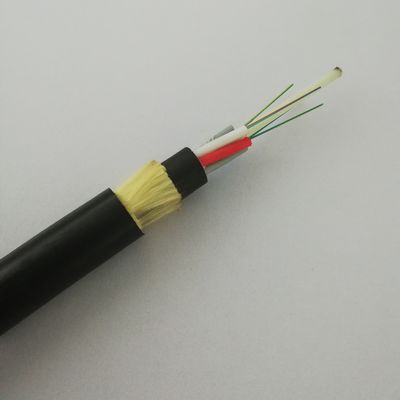

Product Picture

Application

Suitable for Aerial Laying method

Storage / Operating Temperature: -40℃~+70℃

Package Detail

Export Wooden drum,Normal shipping length of the cable will be 2km or 3km.

Other length is also available if required by buyer.

Mark:Usually we only attach the test report on the packaging, but your request is available too.

For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

2km Span 100M PE Jacket Self Supporting Aerial Cable 2

FAQ

1.Are you tradning company or manufacturer?

We are the manufacturer with 10 years' experience ,we are specialized in research,development and production

for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?

We will delivery before tested every fibers when finished production.

After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?

Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?

Usually about 3-7days working days,it mainly depend on order quantity.

But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?

Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
