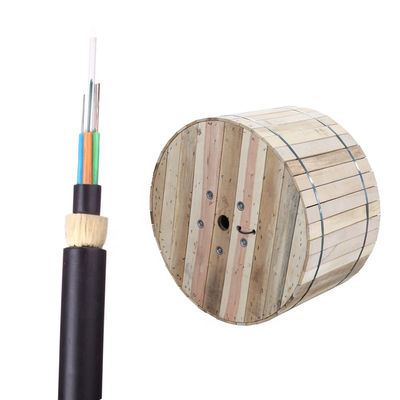

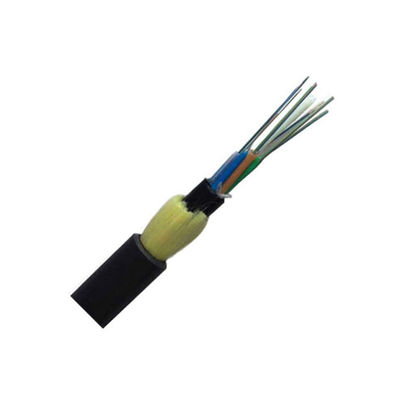

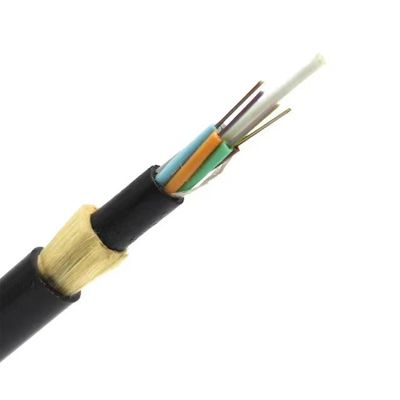

60 Core Single Mode G652D Double Jacket Outdoor ADSS Fiber Optic Cable

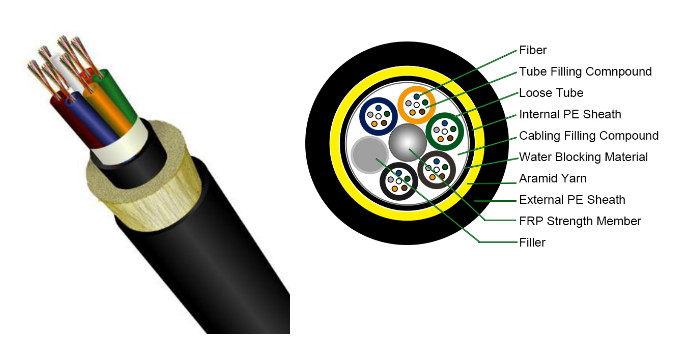

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes arefilled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Features
* Single Fiber Reinforced Plastic as the central strength member,Loose tube filling compound
* Can be installed without shutting off the power
* Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
* Large span lengths 100m/200m/300m/400m
* Good performance of tensile strength and temperature
* The design life span is 30 years,special tube filling compound ensure a critical protection of fiber.
* Package : 2~4km/ Export wooden drum
Optical Characteristics
Items | Unit | Specification | |
G652D | |||
Mode Field Diameter | 1310nm | um | 9.2±0.4 |
1550nm | um | 10.4±0.5 | |
Cladding Diameter | um | 124.8±0.7 | |
Cladding Non-Circularity | % | ≤0.7 | |
Core-Cladding Concentricity Error | um | ≤0.5 | |
Coating Diameter | um | 245±5 | |
Coating Non-Circularity | % | ≤6.0 | |
Cladding-Coating Concentricity Error | um | ≤12 | |
Cable Cutoff Wavelength | nm | acc≤1260 | |
Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
1550nm | dBkm | ≤0.22 |
Technical Data
Span : 100m |
Cable type |
60core Double Jacket ADSS |
structural parameter |
Central strength components : FRP |
Diameter : 2.1mm |
Loose tube (jelly filled ) |
Outer diameter :1.8mm |
|
Inner sheath PE |
Thickness : 0.9mm |
|
outer sheath PE |
Thickness :1.8mm |
|
Technical parameter |
outer diameter of Cable |
12.3mm |
cable cross-sectional area |
95.03 mm2 |
|
Fiber model |
G.652D |
|
Weight of cable |
150kg/km |
|
Rated tensile strength (RTS) |
10 kn |
|
Minmum allowed tension(MAT) |
4kn |
|
EDS |
3.2kn |
|
E-modulus |
12.1 kn/mm2 |
|
Coefficient of thermal expansion |
1.9 10-6/°C |
|
Cruss resistance |
Long term :1100 n/100mm |
|
short term:2200 n/100mm |
||
Permission bent radius |
Long term (when running) 220 mm |
|
Short term (when laying) 360 mm |
Structure and Technical Specifications ADSS-DJ(50-500m Span)
Ref.Outer Diameter (mm) |
Ref.Weight kg/km) |
Rec.DailyMax. Working Tension(kN) |
Max Allowable Working Tension [kN) |
Break Strength (kN) |
Strength Member CSA. (kN/mm2) |
Modulusof Elasticity CSA kNmm2)[ |
Heat Expansion Coefficient (X10-6/K) |
SuitableSpan Meter ABICP |
||||
PE |
AT |
|
||||||||||
12.5 |
125 |
136 |
1.5 |
4 |
10 |
4.6 |
7.6 |
1.8 |
160 |
100 |
140 |
100 |
13.0 |
132 |
142 |
2.25 |
6 |
15 |
7.6 |
8.3 |
1.5 |
230 |
150 |
200 |
150 |
13.3 |
137 |
148 |
3.0 |
8 |
20 |
10.35 |
9.45 |
1.3 |
300 |
200 |
290 |
200 |
13.6 |
145 |
156 |
3.6 |
10 |
24 |
13.8 |
10.8 |
1.2 |
370 |
250 |
350 |
250 |
13.8 |
147 |
159 |
4.5 |
12 |
30 |
14.3 |
11.8 |
1.0 |
420 |
280 |
400 |
280 |
14.5 |
164 |
177 |
5.4 |
15 |
36 |
18.4 |
13.6 |
0.9 |
480 |
320 |
460 |
320 |
14.9 |
171 |
185 |
6.75 |
18 |
45 |
22.0 |
16.4 |
0.6 |
570 |
380 |
550 |
380 |
15.1 |
179 |
193 |
7.95 |
22 |
53 |
26.4 |
18.0 |
0.3 |
670 |
460 |
650 |
460 |
15.5 |
190 |
204 |
9.0 |
26 |
|60 |
32.2 |
19.1 |
0.1 |
750 |
530 |
750 |
510 |
Product Show
Application
Suitable for Aerial Laying method
Storage / Operating Temperature: -40℃~+70℃
