SM G652D Single Jacket 100 Span ADSS 72 Core Fiber Optic Cable

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Place of Origin: Guangzhou Brand Name: JQ/OEM
Certification: ISO9001 Model Number: ADSS-72B1

Detail Information

Fiber Type: Single Mode Or Multi Mode Fiber Count: 72 Core
Color: Black Length: 2km Or Customized Length
Jacket Material: PE/AT Name: 72 Core ADSS Optical Fiber Cable
Strength Member: FRP Application: Aerial
Operating Temperature: -40 ~ +60 C Type: ADSS,S-Z Stranded Type
Highlight:

100 Span 72 Core Fiber Optic Cable

,

SM G652D 72 Core Fiber Optic Cable

,

100 Span adss optical cable

Product Description

Outdoor SM G652D Single Jacket 100 Span ADSS 72 Core Fiber Optic Cable



ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes arefilled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

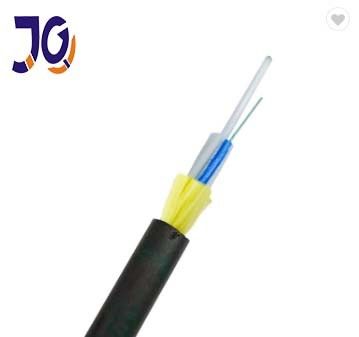

SM G652D Single Jacket 100 Span ADSS 72 Core Fiber Optic Cable 0

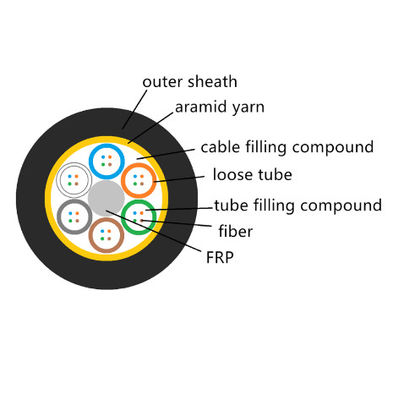

SM G652D Single Jacket 100 Span ADSS 72 Core Fiber Optic Cable 1



Features

1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight:
6.Single Fiber Reinforced Plastic as the central strength member
7.Loose tube filling compound
8.100% cable core filling





Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  0.7
Core-Cladding Concentricity Error um  0.5
Coating Diameter um 245±5
Coating Non-Circularity %  6.0
Cladding-Coating Concentricity Error um  12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22



SM G652D Single Jacket 100 Span ADSS 72 Core Fiber Optic Cable 2



Technical Data



Span : 100m



Cable type



72core Single Jacket ADSS



structural

parameter



Central strength components : FRP



Diameter : 2.1mm



Loose tube (jelly filled )



Outer diameter :1.8mm



Inner sheath PE



Thickness : 0.9mm



outer sheath PE



Thickness :1.8mm



Technical

parameter



outer diameter of Cable



12.3mm



cable cross-sectional area



95.03 mm2



Fiber model



G.652D



Weight of cable



145kg/km



Rated tensile strength (RTS)



10 kn



Minmum allowed tension(MAT)



4kn



EDS



3.2kn



E-modulus



12.1 kn/mm2



Coefficient of thermal expansion



1.9  10-6/°C



Cruss resistance



Long term :1100 n/100mm



short term:2200 n/100mm



Permission bent radius



Long term (when running) 220 mm



Short term (when laying) 360 mm





Structure and Technical Specifications ADSS-SJ(50-500m Span)



Ref.Outer

Diameter

(mm)



Ref.Weight

kg/km)



Rec.DailyMax.

Working

Tension(kN)



Max

Allowable

Working

Tension

[kN)



Break

Strength

(kN)



Strength

Member

CSA.

(kN/mm2)



Modulusof

Elasticity

CSA

kNmm2)[



Heat

Expansion

Coefficient

(X10-6/K)



SuitableSpan

Meter

ABICP



PE



AT







12.5



125



136



1.5



4



10



4.6



7.6



1.8



160



100



140



100



13.0



132



142



2.25



6



15



7.6



8.3



1.5



230



150



200



150



13.3



137



148



3.0



8



20



10.35



9.45



1.3



300



200



290



200



13.6



145



156



3.6



10



24



13.8



10.8



1.2



370



250



350



250



13.8



147



159



4.5



12



30



14.3



11.8



1.0



420



280



400



280



14.5



164



177



5.4



15



36



18.4



13.6



0.9



480



320



460



320



14.9



171



185



6.75



18



45



22.0



16.4



0.6



570



380



550



380



15.1



179



193



7.95



22



53



26.4



18.0



0.3



670



460



650



460



15.5



190



204



9.0



26



|60



32.2



19.1



0.1



750



530



750



510





Application

Suitable for Aerial Laying method

Storage / Operating Temperature: -40℃~+70℃



Package Detail



Export Wooden drum,Normal shipping length of the cable will be 1~4km.
Other length is also available if required by buyer.
Mark:Usually we only attach the test report on the packaging, but your request is available too.
For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length



FAQ

1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
