SC/UPC 1.5M Single mode 0.9mm Simplex Fiber Optic Pigtail

Minimum Order Quantity : 100 pieces Packaging Details : Outside:carton,inside:plastic bag
Delivery Time : 3-5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 50000 per month
Place of Origin: China Brand Name: Jiqian
Certification: ISO 9001 Model Number: Fiber optic pigtail

Detail Information

Place Of Origin: Guangzhou,China Brand Name: Jiqian
Model Number: SC/UPC Pigtail Length: 1.5m Or Customized
Connector Type: SC/UPC Fiber Type: G652D/G657A
Jacket: PVC/LSZH Ferrule Endface: UPC
High Light:

0.9mm Simplex Fiber Optic Pigtail


1.5M 0.9mm Fiber Optic Pigtail


1.5M 0.9mm single mode fiber pigtails

Product Description

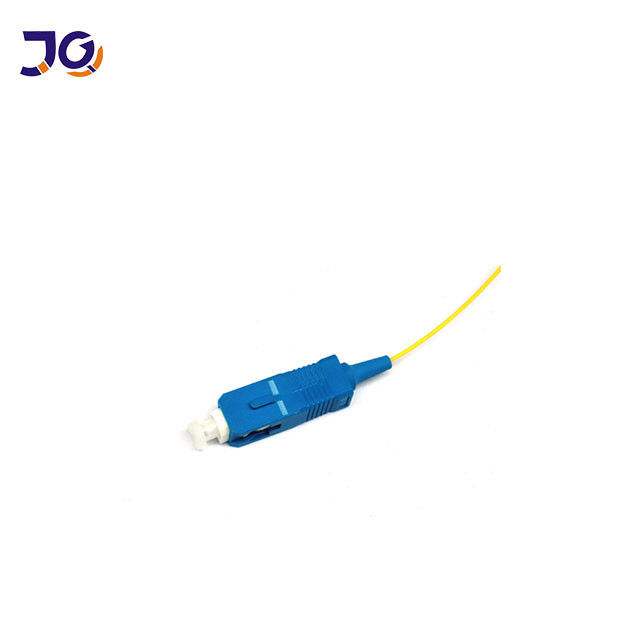

SC/UPC 1.5M Single mode 0.9mm Simplex Fiber Optic Pigtail


Fiber Optic Pigtail is important of optical network.they have same or different connectors which are installed on the end of fiber optic cable. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.


SC/UPC 1.5M Single mode 0.9mm Simplex Fiber Optic Pigtail 0



1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
2. Superior qualified standard PC, APC, UPC, SPC polishing;
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;
8. Customized specifications are welcomed.



• Apply for CATV, LAN, Telecom network, test equipment
• Telecommunication networks
• Active device termination
• Metro
• Local Area Networks(LANs)
• Test equipment
• Premise installations


Performance Index

Item SM(Single Mode) MM(Multimode)
Fiber Cable Type G652D/G655/G657A1/G657A2 OM1 OM2/OM3/OM4
Fiber Diameter (um) 9/125 62.5/125 50/125
Cable OD (mm) 0.9/1.6/1.8/2.0/2.4/3.0
Typical Insertion Loss (dB) <0.2 <0.15 <0.2 <0.1 <0.1
Return Loss (dB) >45 >50 >60 /
Insert-pull Test (dB) <0.2 <0.3 <0.15
Interchangeability (dB) <0.1 <0.15 <0.1
Anti-tensile Force (N) >70
Temperature Range (℃) -40~+80




1,Q:What is the MOQ?

A:100 pieces.


2,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

3,Q:What’s delivery time?
A:The general delivery time is 2-3 days after order confirmed. It depends on the order quantity.


4.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.small order is 100% of full price in advance
