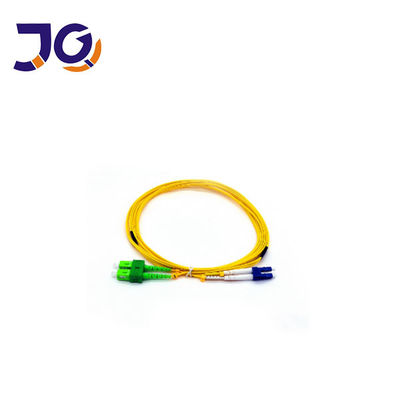

Single Mode Duplex 1 2 3 5Meter Sc Lc Fc Fiber Patch Cord

Minimum Order Quantity : 100 pieces Packaging Details : Inside packed with plastic bag,outside packed with carton
Delivery Time : 3-5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Place of Origin: China Brand Name: Jiqian
Certification: ISO 9001 Model Number: Fiber patch cord

Detail Information

Place Of Origin: Guangzhou,China Brand Name: Jiqian
Model Number: Fiber Patch Cord Number Of Fiber: 2 Cores
Dimension: 0.9/2.0/3.0mm Length: Customized Lengths(1/2/3m...)
Connector Type: SC/FC/ST/LC Certification: ISO 9001
High Light:

5Meter Fc Fiber Patch Cord


5Meter Lc Fiber Patch Cord


3Meter single mode duplex patch cord

Product Description

Single Mode Duplex 1 2 3 5 Meters Sc Lc Fc Fiber Patch Cord


1. Fiber optic patch cords are available in all standard connector styles, all standard fiber types and all standard cable configurations to meet all your interconnection needs. They are available in any length .

2.The patch cord are factory terminated, assembled, tested and inspected prior to shipment.

3.All patch cords are manufactured using OFNR riser grade cable, LSZH, plenum, and premium customized specs available upon request, and 100% factory tested to ensure the performance to meet TIA/EIA-568-8-2, iso11801:2002 and EN 50173-1 standards. All assemblies are tested to meet Telcordia GR326-CORE.


Single Mode Duplex 1 2 3 5Meter Sc Lc Fc Fiber Patch Cord 0

Single Mode Duplex 1 2 3 5Meter Sc Lc Fc Fiber Patch Cord 1


1.Low Insertion loss

2.High return loss

3.Good Repeatability

4.Good Interchange

5.Excellent Environmental Adaptability



Local Area Network (LAN)

Data communication network

Telecommunication optical transmission network

Optical access network(OAN)

Active device termination

Fiber optics data transmission(FODT)

Test Equipment




Type Standard,Master


50/125, 62.5/125 (Multimode) OM2&OM1

50/125, 10G (Multimode) OM3


Simplex, Duplex

Φ3.0mm, Φ2.0mm, Φ0.9mm


Polishing Manner UPC,SPC,APC (8°& 6°)
Insertion Loss

≤ 0.1dB (For Singlemode Master)

≤ 0.25dB (For Singlemode Standard)

≤ 0.25dB (For Multimode)

Tested by JDS RM 3750

Return Loss


UPC ≥ 50dB

SPC ≥ 55dB

APC ≥ 60dB (typ.65dB)

Tested by JDS RM3750

Repeatability ±0.1dB
Operating temperature -400C to 850C

Geometry Requirement

( Singlemode)

Ferrule Endface Radius

7mm ≤ R ≤ 12mm (For APC)

10mm ≤ R ≤ 25mm (For Standard)

Apex Offset ≤ 30 μm (For Master)

Apex Offset ≤ 50 μm (For Standard)

Undercut -50nm ≤ U ≤ 50nm

Tested by DORC ZX-1




1,Q:What is the MOQ?

A:1 piece.


2,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

3,Q:What’s delivery time?
A:The general delivery time is 2-3 days after order confirmed. It depends on the order quantity.


4.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.small order is 100% of full price in advance
