SC/APC SC/UPC 1m 2m 3m Fiber Optic Patch Cord

Minimum Order Quantity : 50PCS Packaging Details : 100PCS In One Export Cartoon box
Delivery Time : 5-8 work days Payment Terms : Western Union, T/T, L/C,Alipay
Supply Ability : 5000pcs per day
Place of Origin: Guangzhou, China Brand Name: jiqian
Certification: ISO 9001 Model Number: SM-SX Patch Cord

Detail Information

Material: PVC/LSZH Color: Yellow
Item: Optical Fiber Patch Cord Repeatability: ≤ 0.2 DB
Fiber Count: Simplex Or Duplex Fiber Type: SM Or MM
Quality Control: 100% Test Before Shipping Connector Type: SC/APC,SC/UPC Or Hybrid
Length: 1m 2m 3m Or Customized Product Name: Fiber Optic Patch Cord
High Light:

SC/APC 3m Fiber Optic Patch Cord

,

SC/UPC 1m Fiber Optic Patch Cord

,

2m SC/APC Fiber Optic Patch Cord

Product Description

Singlemode Simplex/Duplex SC/APC SC/UPC Connector Fiber Optic Patch Cord



Product Description

fiber optic patch cord is a fiber optic cable capped at either end with connectors that allow it to be rapidly and conveniently connected toCATV,an optical switch,or other telecommunication equipment. Having a thick layer of protection, it is used to connect the optical transmitter,optical receiver,and terminal box.This is known as "interconnect-style cabling".Fiber Optic Patch cords are ultra reliable components featuring low insertion loss and return loss. They come with your choice of simplex or duplex cable configuration .Extensive range of fiber patch cables are terminated with state of the art connectors and available in any combination of ST, SC, LC and MTRJ with PC, UPC or APC polish types to meet your standard or custom configurations.

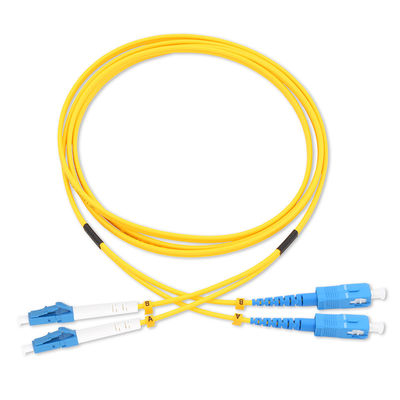

SC/APC SC/UPC 1m 2m 3m Fiber Optic Patch Cord 0

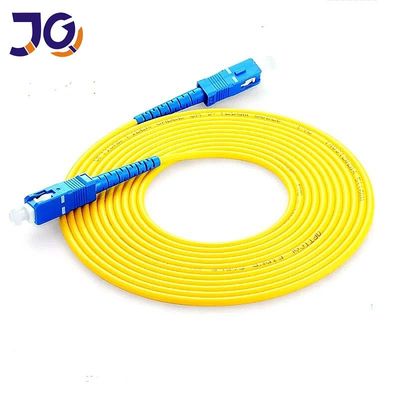

SC/APC SC/UPC 1m 2m 3m Fiber Optic Patch Cord 1



Feature

Low Insertion loss

High return loss

Good Repeatability

Good Interchange

Excellent Environmental Adaptability





Optical Characteristics





Parameter



PC



UPC



APC



Multi-mode



Insertion loss



≤0.3dB



0.3dB



0.3dB



0.3dB



Return loss



40dB



50dB



60dB



≥35dB



Exchange



0.2dB



Repeatability



0.2dB



Servicelife



>1000times



Tensile strength



>10kg



Temperature range



-40°C to +85°C





Technical Data



Type



Standard,Master



Style



LC,SC,ST,FC.MU,DIN,MPO,SC/APC,

FC/APC,LC/APC.MU/APC



Fiber



Singlemode/Multimode

50/125,62.5/125(Multi mode) OM2&OM1

50/125,10G(Multi mode)OM3



Cable



Simplex,Duplex

outer diameter:3.0mm,20mm,0.9mm

PVC or LSZH



Polishing Manner



UPC,SPC,APC(8°&6°)



Insertion Loss



≤0.1dB  (For Single mode Master)

≤0.25dB (For Single mode Standard)

≤0.25dB (ForMultimode)

Tested by JDSRM3750



                                    Return Loss

                                  (Single mode)



UPC≥50dB

SPC≥55dB

APC≥60dB (typ.65dB)

Tested by JDSRM3750



Repeat ability



0.1dB



Operating temperature



-400 C° to 850 C°



                          Geometry Requirement

                               (Single mode)



Ferrule Endface Radius

7mm≤R≤12mm (For APC)

10mm≤R≤25mm (For Standard)

Apex Offset≤30μm (For Master)

Apex Offset≤50μm (For Standard)

Under cut-50nm SU≤50nm

Tested by DORCZX-1



Application

Communication rooms

FTTH (Fiber to The Home)

LAN  (Local Area Network)

FOS(fiber optic sensor)

Fiber Optic Communication System

Optical fiber connected and transmitted equipment



Recommed Products

SC/APC SC/UPC 1m 2m 3m Fiber Optic Patch Cord 2

SC/APC SC/UPC 1m 2m 3m Fiber Optic Patch Cord 3



SC/APC SC/UPC 1m 2m 3m Fiber Optic Patch Cord 4



SC/APC SC/UPC 1m 2m 3m Fiber Optic Patch Cord 5







Packing & Delivery



Packing:100/Pcs in one Carton box or OEM.

Shipment:by Sea,by Air,by Express:DHL/UPS/Fedex/EMS/TNT etc

Deliverty: 3-5 days after payment dowm,According to ur order quantity.

SC/APC SC/UPC 1m 2m 3m Fiber Optic Patch Cord 6







SC/APC SC/UPC 1m 2m 3m Fiber Optic Patch Cord 7





Factory Pictures



SC/APC SC/UPC 1m 2m 3m Fiber Optic Patch Cord 9



FAQ

1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .
