ISO Approved 48core Underground Fiber Optic Cable

Minimum Order Quantity : 1000m Packaging Details : wooden drum
Delivery Time : 2-4day Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 100km per 2 day
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO Model Number: GYTA53

Detail Information

Fiber Type: G657A1/A2/G652D/G657A1/G657A2 Oem: Available
Application: Direct Bury Number Of Conductors: 48 96 72
Structure: Stranded Loose Tube Operating Temperature: -40 ~ +60 C
Cable Diameter:: 9.6mm
High Light:

9.6mm 48core Underground Fiber Optic Cable

,

ISO Underground Fiber Optic Cable

,

ISO Dia9.6mm buried fiber optic cable

Product Description

GYTA53 underground directly buried armored outdoor fiber optic cable 4 8 12 24 48 core



Cable structure:
Brand



Jiqian
Optical Fiber Type
Singel Mode G652D or G657A1
Jacket Material
PVC or PE
Fiber Count
4,6,8,12,24,36,48,72,
Jacket Color
Black
Strength Member
1.0mm Messenger Steel Wire or FRP
Cable Diameter
9.6mm
Length
2000m per roll or customized
Gross Weight
90 kgs
Product functions and features

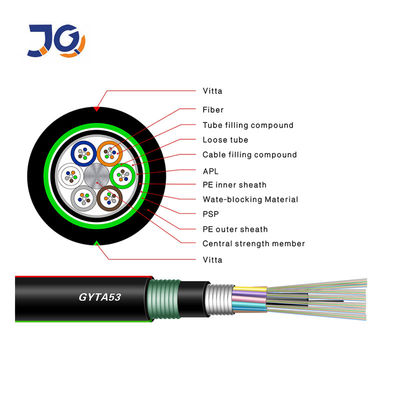

The structure of GYTA53 layer stranded 53 cable is to embed 250um fiber into a loose sleeve made of high modulus material, and fill the loose sleeve tube with waterproof compound. At the center of the cable core is a metal reinforcing core. For some fiber optic cables, the metal reinforcing core needs to be extruded with a layer of polyethylene. The loose casing and filling line are twisted around the central reinforcement core to form a compact and round cable core, and the gaps in the cable core are filled with water-blocking filler. Double coated plastic steel strip longitudinally wrapped and extruded polyethylene sheathed cable.





No. of cable
12
24
48
Fiber Model
G.652D
Design
(StrengthMember+Tube&Filler)
1+5
Central Strength Member
Material
Steel Wire
Diameter(±0.5)mm
1.4
Loose Tube
Material
PBT
Diameter(±0.06)mm
1.72
1.72
2.0
Thickness(±0.03)mm
0.30
0.30
0.32
The Max.Core NO./Tube
6
6
12
Filler Rope
Material
LDPE
Diameter(±0.06)mm
1.7
1.7
2.0
NO.
3
1
1
Moisture Barrier
Material
Polymer Coated Aluminum Tape
Thickness(±0.03)mm
0.20
Inner
Sheath
Material
MDPE
Thickness(±0.2)mm
0.9
Armoring
Material
Polymer Coated Steel Tape
Thickness(±0.2)mm
0.22
Water Bloaking Layer
Material
Filling Compound
Outer Sheath
Material
MDPE
Thickness(±0.2)mm
1.8
Cable Diameter(±0.5)mm
12.5
12.5
13.1
Cable Weight(±10)kg/km
152
167
167
Attenuation
1310nm
0.35dB/ km
1550nm
0.21dB/ km
Min. bending radius
Without Tension
12.5×Cable-φ
Under Maximum Tension
25.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

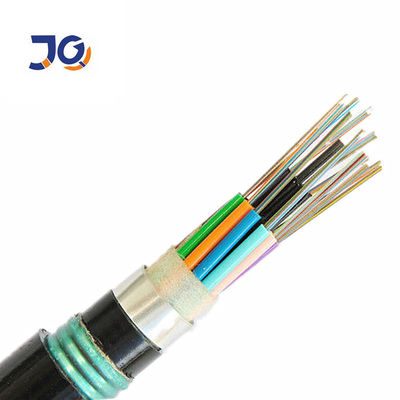

ISO Approved 48core Underground Fiber Optic Cable 0






ISO Approved 48core Underground Fiber Optic Cable 1
Feature:
Loose tube gel-filled construction for superiorfiber protection.
Double jacket single armored(GYTY53) and Double jacket double armored
(GYTA53) for rodent pr.otection and direct burial.
UV and moisture-resistant design


COMPANY PROFILE
 Guangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.

FAQ:

1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?

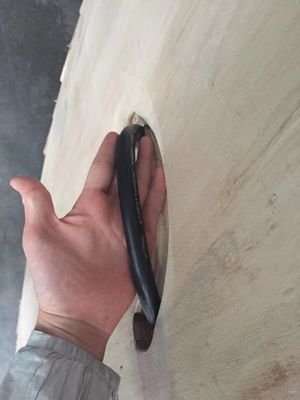

Yes, we supply OEM&ODM service, pls feel free to contact.ISO Approved 48core Underground Fiber Optic Cable 2
