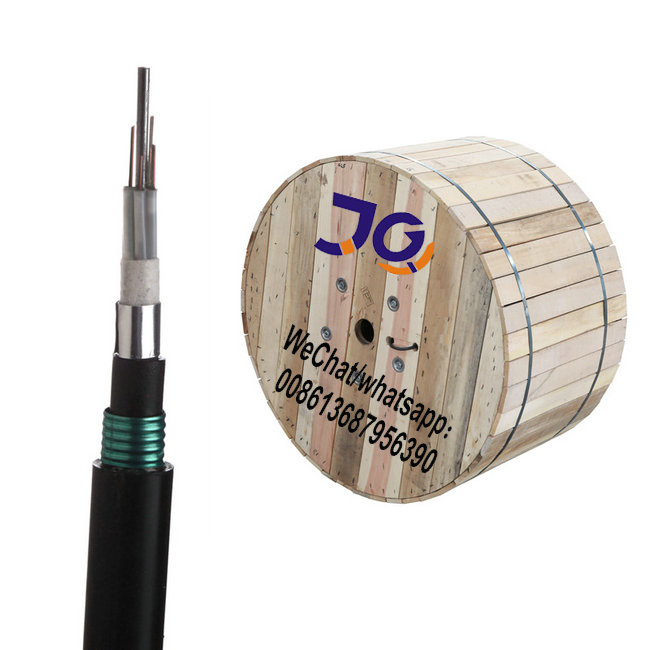

GYTA53 Outdoor Armored Fiber Optic Cable 48/96 Core Single Mode

1km
MOQ
Inquiry for price
Price
GYTA53 Outdoor Armored Fiber Optic Cable 48/96 Core Single Mode
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: G652D
Color: Black,Customized
Outsheath: PE/HDPE/MDPE
Fiber Count: 2-288cores
Product Name: Stranded Loose Tube Armored Cable
Installation: Direct Burial/ Duct
Application: Telecommunication,Network
Type: Singlemode &Multimode
Highlight:

GYTA53 armored fiber optic cable

,

48 core single mode fiber cable

,

underground fiber optic cable with warranty
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM/Customize
Certification: ISO9001/ ROHS/ CE/ FCC
Model Number: GYTA53
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description
Manufactory Supply 36 Core GYTA53 Single Mode Outdoor Fiber Optic Cable

Aluminum Armored Direct Burial Fibre Cable



Features

  • Excellent mechanical and thermal stability

  • Water-blocking loose tubes with protective gel

  • Strong axial and compression resistance

  • UV- and water-resistant PE sheath

  • Central steel strength member and full gel filling for extra protection

Application
Ideal for direct burial and other outdoor installations.





Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

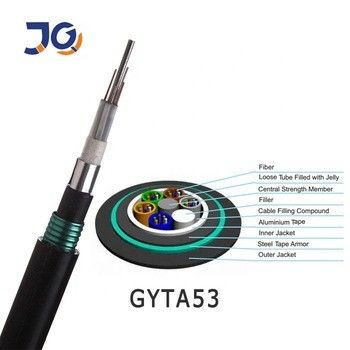

GYTA53( Aluminium polyethylene laminate)
Fiber
Count		 Nominal
Diameter
(mm)		 Nominal
Weight
(kg/km)		 Allowable Tensile Load
(N)		 Allowable Crush Resistance
(N/100mm)
Short Term Long Term Short Term Long Term
2~30 13.2 162 3000 1000 3000 1000
32~48 13.8 175 3000 1000 3000 1000
50~72 14.6 205 3000 1000 3000 1000
74~96 16.0 230 3000 1000 3000 1000
98~144 17.6 285 3000 1000 3000 1000
＞144 Avaliable upon customer's request

Cable type Drum

Height

(mm)

Width

(mm)

Inner diameter

(mm)

Length

(km)

 Drum type
GYTA53-12 950 760 400 2 Wooden drum
GYTA53-24 950 760 400 2 Wooden drum
GYTA53-48 1100 760 500 2 Wooden drum
GYTA53-96 1200 760 500 2 Wooden drum

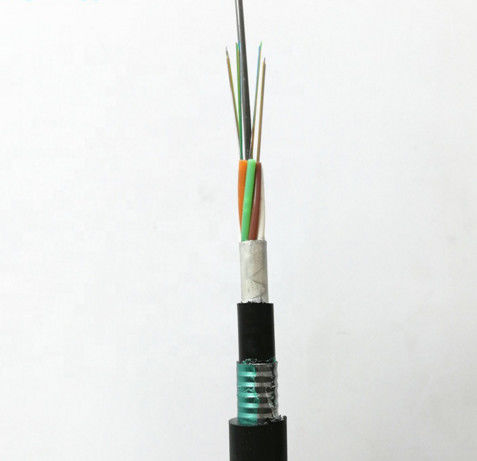

GYTA53 Outdoor Armored Fiber Optic Cable 48/96 Core Single Mode 0



GYTA53 Outdoor Armored Fiber Optic Cable 48/96 Core Single Mode 1



FAQ

Are you a trading company or manufacturer?
We are a manufacturer with 10 years of experience in fiber optic cables, drop cables, and patch cords. Our factory is in Guangzhou — welcome to visit!

How is the quality?
All fibers are tested before delivery. Free samples are available after price confirmation.

Do you accept small orders?
Yes, small orders are welcome. We support new customer projects.

What is your delivery time?
Usually 3–7 working days, depending on quantity.

Do you offer OEM service?
Yes, we can print your logo and customize designs.
