GYTA53 Aluminium Armored 48 96 Core Fiber Optic Cable Direct Burial
GYTA53 Aluminium Armored 48 96 Core Fiber Optic Cable Direct Burial GYTA53 Aluminium Armored 48 96 Core Fiber Optic Cable Direct Burial GYTA53 Aluminium Armored 48 96 Core Fiber Optic Cable Direct Burial
Contact Now

GYTA53 Aluminium Armored 48 96 Core Fiber Optic Cable Direct Burial

Minimum Order Quantity : 1km Price : Inquiry for price
Packaging Details : wooden drum Delivery Time : 5-8 work days
Payment Terms : L/C, T/T, Western Union Supply Ability : 4500KM Per Month
Place of Origin: Guangzhou, China Brand Name: JQ/OEM/Customize
Certification: ISO9001/ ROHS/ CE/ FCC Model Number: GYTA53

Detail Information
Fiber Type: G652D Single Mode Or As Your Request Color: Black Or Customized
Outsheath: PE/HDPE/MDPE/ Fiber Count: 2-288cores
Product Name: Stranded Loose Tube Armored Cable Length: 2km Or Customized Length
Installation: Aerial & Duct Application: Telecommunication
Highlight:

GYTA53 armored fiber optic cable

,

direct burial fiber optic cable

,

96 core underground fiber cable

Product Description

Manufactory Supply 36 Core GYTA53 Single Mode Fiber Optic Cable Outdoor Fiber Cable



Aluminum Armored Direct Burial Fiber Optic Cable GYTA53



GYTA53 Underground Direct Burial Fiber Optic Cable is designed for high-capacity transmission and reliable performance in tough environments. With up to 288 fibers and S-Z stranded construction, it’s perfect for direct burial applications.

Features:

  • Optimized Mechanical & Thermal Performance: Superior structural integrity in various environmental conditions.

  • Enhanced Loose Tube Construction: Water-resistant polymer materials and gel compound protect fibers from moisture.

  • Axial Stability Design: Compression-resistant design minimizes deformation.

  • Advanced Environmental Protection: UV-resistant polyethylene sheath protects against solar degradation and liquid permeation.

  • Reinforced Components:

    1. Central steel wire reinforcement

    2. Hydrophobic filling in buffer tubes

    3. Full core filling for moisture protection

    4. Laminated aluminum-polyethylene (APL) moisture barrier

Application

Ideal for direct burial laying.



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters



GYTA53( Aluminium polyethylene laminate)
Fiber
Count
Nominal
Diameter
(mm)
Nominal
Weight
(kg/km)
Allowable Tensile Load
(N)
Allowable Crush Resistance
(N/100mm)
Short Term
Long Term
Short Term
Long Term
2~30
13.2
162
3000
1000
3000
1000
32~48
13.8
175
3000
1000
3000
1000
50~72
14.6
205
3000
1000
3000
1000
74~96
16.0
230
3000
1000
3000
1000
98~144
17.6
285
3000
1000
3000
1000
＞144
Avaliable upon customer's request

Cable type Drum

Height

(mm)

Width

(mm)

Inner diameter

(mm)

Length

(km)

 Drum type
GYTA53-12 950 760 400 2 Wooden drum
GYTA53-24 950 760 400 2 Wooden drum
GYTA53-48 1100 760 500 2 Wooden drum
GYTA53-96 1200 760 500 2 Wooden drum

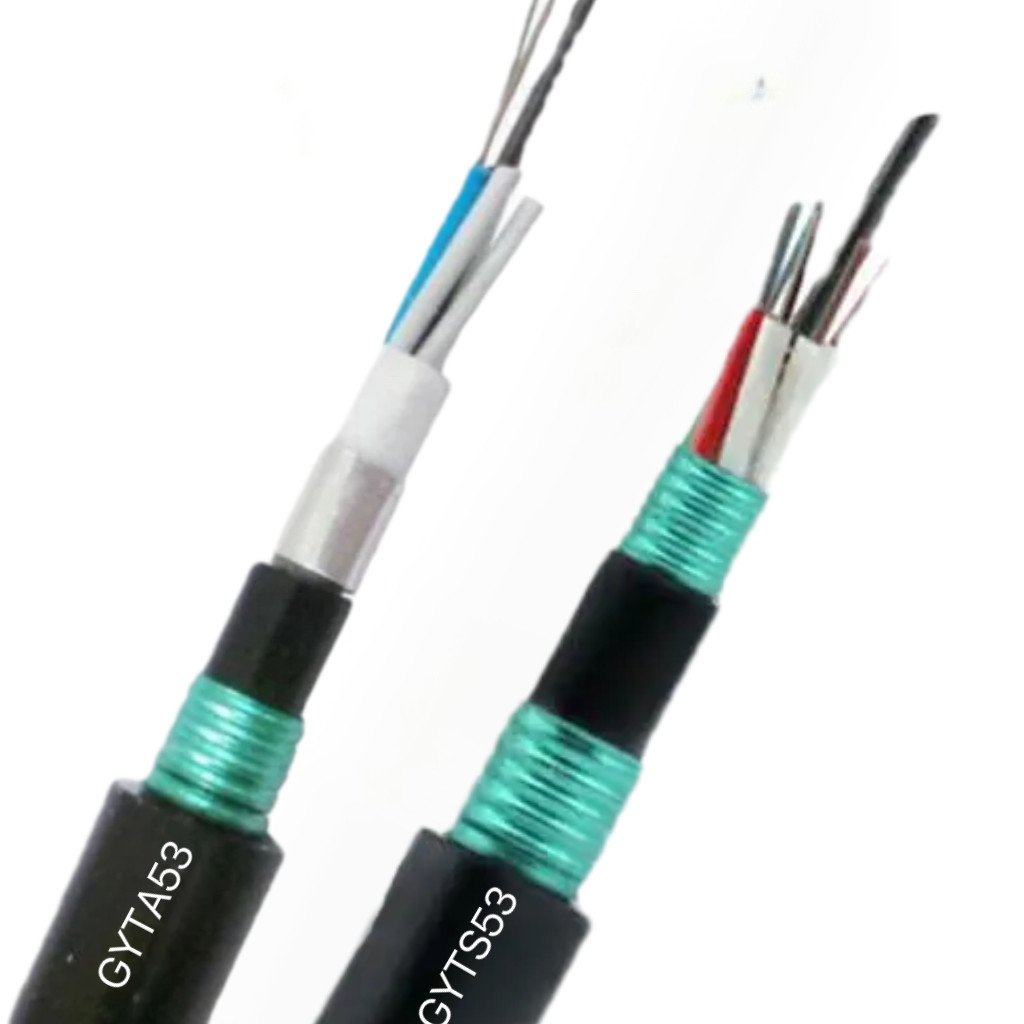

GYTA53 Aluminium Armored 48 96 Core Fiber Optic Cable Direct Burial 0

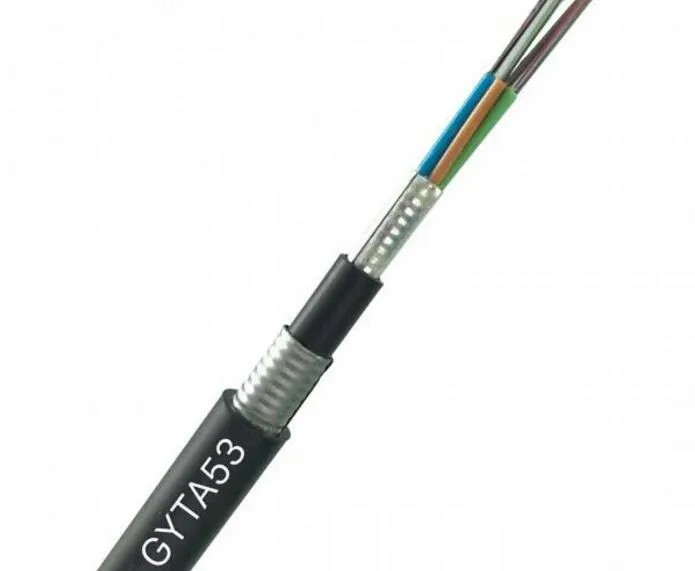

GYTA53 Aluminium Armored 48 96 Core Fiber Optic Cable Direct Burial 1

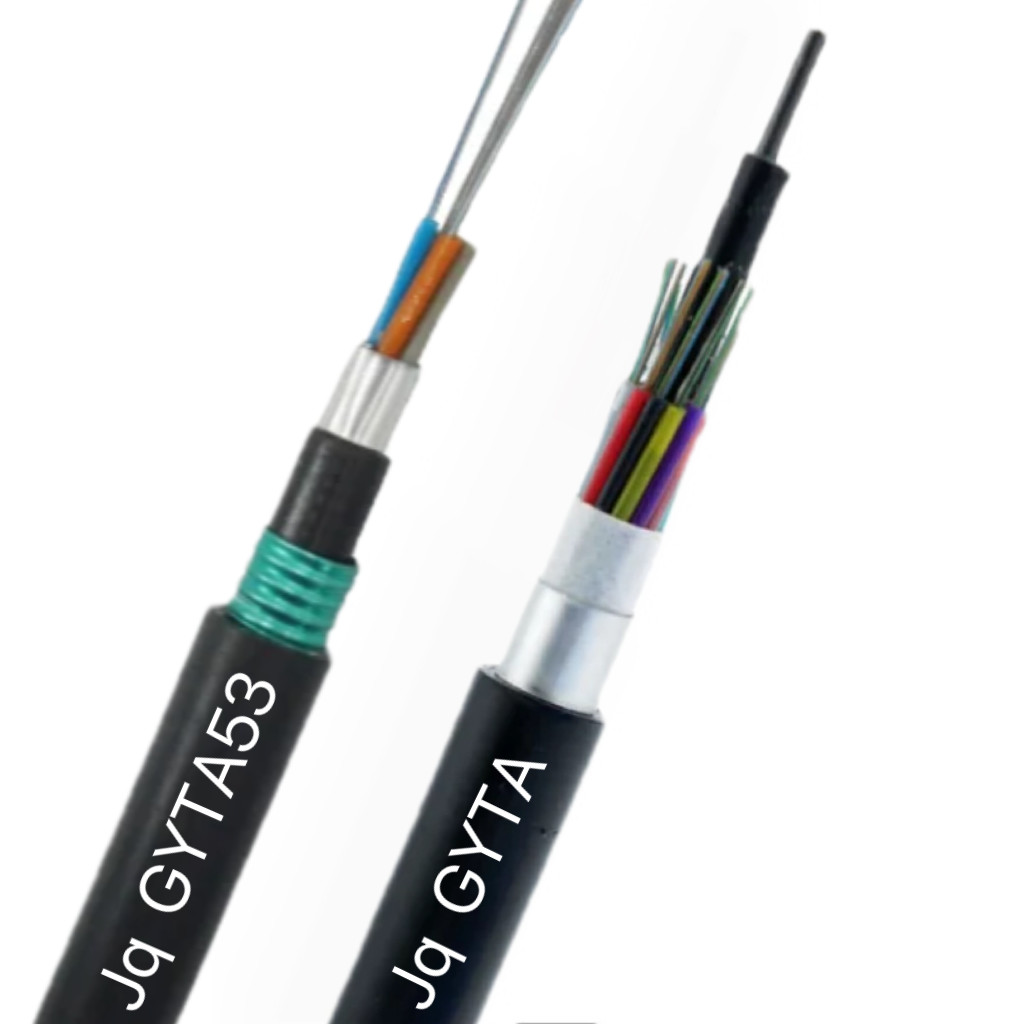

GYTA53 Aluminium Armored 48 96 Core Fiber Optic Cable Direct Burial 2





Packing

1/2/3/4km or customized length export wooden drum



✅ FAQ

1. Are you a trading company or manufacturer?
We are a manufacturer with 10 years of experience, specializing in fiber optic cables, drop cables, and patch cords. Our factory is located in Guangzhou, China. You are welcome to visit us!



2. How do you ensure product quality?
We test every fiber before delivery. After price confirmation, free samples are available for quality checks.



3. Can you accept small orders?
Yes, we accept small orders and support new projects as we know businesses often start small.



4. What is the delivery time?
Usually 3-7 working days, depending on the order quantity. We will process your order as soon as payment is received.



5. Do you offer OEM services?
Yes, we offer OEM services and can print your logo on the product. Any custom ideas are welcome.
