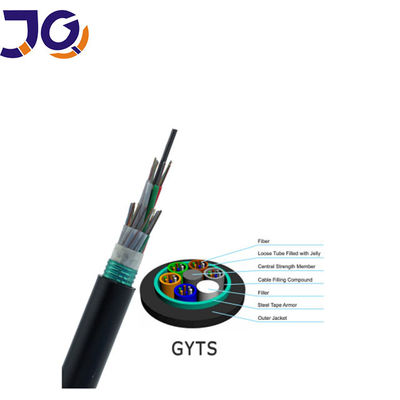

GYTS 4 6 12 24 48 96Core Singlemode Fiber Optic Cable

1. Good mechanical and temperature performance
2. High strength loose tube that is hydrolysis resistant
3. Special tube filling compound ensure a critical protection of fiber
4. Specially designed compact structure is good at preventing loose tubes from shrinking
5. Crush resistance and flexibility

6: PE sheath protects cable from ultraviolet radiation
7. The following measures are taken to ensure the cable watertight:
8. Steel wire used as the central strength member
9. Loose tube filling compound

10. 100% cable core filling
11. PSP enhancing moisture-proof

Fiber Count Nominal Diameter (mm) Nominal Weight (kg/km) Max Fiber Per Tube Max No. of (Tubes+fillers) Allowable Tensile Load (N) Allowable Crush Resistance (N/100mm) Short Term Long Term Short Term Long Term 2~36 10.7 132 6 6 1500 600 1000 300 38~72 12.0 165 12 6 1500 600 1000 300 74~96 13.8 204 12 8 2000 600 1000 300 98~120 15.3 240 12 10 2000 600 1000 300 122~144 17.0 284 12 12 2500 600 1000 300 146~216 17.1 285 12 18(2 layers) 2500 600 1000 300 218~288 19.5 350 12 24(2 layers) 3000 600 1000 300





FAQ:



1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:YOFC,Fiberhome,etc



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
