Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : vicky
Phone Number : +8618998347595
WhatsApp : +8618998347595
|Minimum Order Quantity :||1km||Packaging Details :||wooden drum/customized|
|Delivery Time :||2-4days||Payment Terms :||Western Union, MoneyGram, T/T, L/C|
|Supply Ability :||4500km per Month|
|Place of Origin:||CHINA||Brand Name:||jiqian|
|Certification:||ISO9001,ROHS,CE,FCC SDOC||Model Number:||ADSS|
|Application:||Aerial/duct||Number Of Conductors:||4-144core|
|Structure:||Stranded Loose Tube||Operating Temperature:||-40 ~ +60 C|
|Central Strength Member:||FRP||Span:||100/200/300/400m|
G652D ADSS Fiber Optic Cable,
FRP ADSS Fiber Optic Cable,
100m Single Mode Fiber Cable
Non-Metallic ADSS 6/12/24/48/96 Core 100/200m span G652D Fiber Optic Cable ADSS

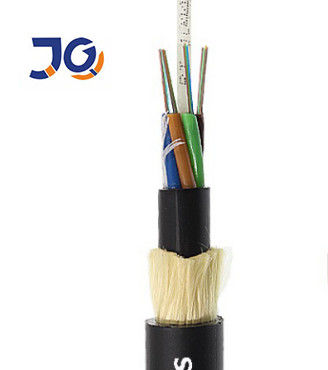

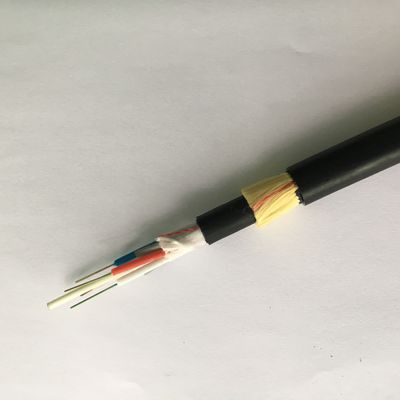

ADSS cable is loose tube stranded. Fibers, 250μm, are positioned into a loose tube made of high modulus plastics. The tubes are filled with a water-resistant filling compound.The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.
Can be installed without shutting off the power.
Excellent mechanical performance.
Good performance of tensile strength and temperature.
Light weight and small diameter reducing the load caused by ice/wind, as well as the load on towers
Long life span time over 30 years.
Widely used in self support aerial / overhead.
|Mode Field Diameter||9.2+-0.2μm at 1310 nm|
|Attenuation Coefficient||<=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm|
|Chromatic Dispersion||<=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm|
|Zero Disperson Wavelength||1300-1322nm|
|Fiber count||2-144 cores|
|Fiber type||SM G652D|
|Central Strangth member||FRP|
|Type of filling compound||Jelly|
|Water-blocking system||Water blocking tape|
|Strength member||Kevlar yarn|
|Applicantion||Overhead;Ariel for telecommunication|
Each single length of cable shall be reeled on Fumigated Wooden Drum suitable for long distance shipment.
Covered by plastic buffer sheet.
Sealed by strong wooden battens.
At least 1 meter inside end of cable will be reserved for testing.
