100m Span 24 Core ADSS SJ G652D Fiber Optic Cable

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Place of Origin: Guangzhou Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE-EMC FCC SDOC Model Number: ADSS-24B1

Detail Information

Fiber Type: Single Mode Or Multi Mode Fiber Count: 4-144 Core
Color: Black Length: 2km Or Customized Length
Jacket Material: PE/AT Name: ADSS Optical Fiber Cable
Strength Member: FRP Application: Aerial
Operating Temperature: -40 ~ +60 C Type: ADSS,S-Z Stranded Type
High Light:

100m Fiber Optic Cable

,

G652D Fiber Optic Cable

Product Description

100m Span 24 Core ADSS-SJ G652D Fiber Optic Cable

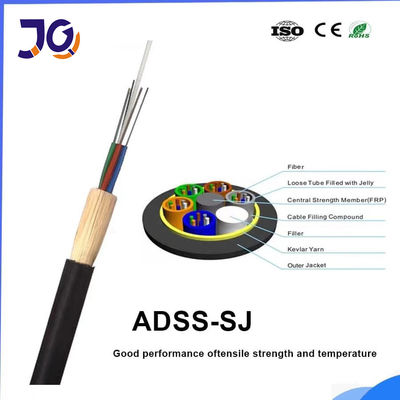

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes arefilled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

100m Span 24 Core ADSS SJ G652D Fiber Optic Cable 0

100m Span 24 Core ADSS SJ G652D Fiber Optic Cable 1



Features

1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight:
6.Single Fiber Reinforced Plastic as the central strength member
7.Loose tube filling compound
8.100% cable core filling





Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  0.7
Core-Cladding Concentricity Error um  0.5
Coating Diameter um 245±5
Coating Non-Circularity %  6.0
Cladding-Coating Concentricity Error um  12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22



100m Span 24 Core ADSS SJ G652D Fiber Optic Cable 2



Technical Data



Structure and Technical Specifications ADSS-SJ(50-500m Span)



Ref.Outer

Diameter

(mm)



Ref.Weight

kg/km)



Rec.DailyMax.

Working

Tension(kN)



Max

Allowable

Working

Tension

[kN)



Break

Strength

(kN)



Strength

Member

CSA.

(kN/mm2)



Modulusof

Elasticity

CSA

kNmm2)[



Heat

Expansion

Coefficient

(X10-6/K)



SuitableSpan

Meter

ABICP



PE



AT







12.5



125



136



1.5



4



10



4.6



7.6



1.8



160



100



140



100



13.0



132



142



2.25



6



15



7.6



8.3



1.5



230



150



200



150



13.3



137



148



3.0



8



20



10.35



9.45



1.3



300



200



290



200



13.6



145



156



3.6



10



24



13.8



10.8



1.2



370



250



350



250



13.8



147



159



4.5



12



30



14.3



11.8



1.0



420



280



400



280



14.5



164



177



5.4



15



36



18.4



13.6



0.9



480



320



460



320



14.9



171



185



6.75



18



45



22.0



16.4



0.6



570



380



550



380



15.1



179



193



7.95



22



53



26.4



18.0



0.3



670



460



650



460



15.5



190



204



9.0



26



|60



32.2



19.1



0.1



750



530



750



510





Application

Suitable for Aerial Laying method

Storage / Operating Temperature: -40℃~+70℃



Package Detail



Export Wooden drum,Normal shipping length of the cable will be 1~4km.
Other length is also available if required by buyer.
Mark:Usually we only attach the test report on the packaging, but your request is available too.
For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
