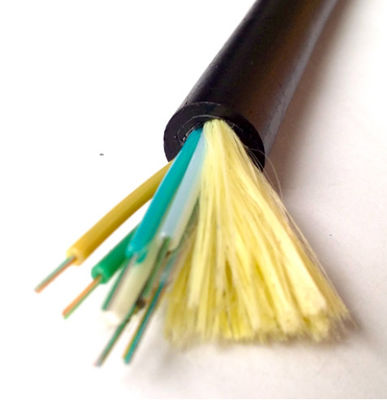

250µm ADSS Fiber Optic Cable Anti Tracking Outer Sheath Electric Erosion

Minimum Order Quantity : 1km Packaging Details : Wooden drum
Delivery Time : 3-5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 4500 per month
Place of Origin: China Brand Name: Jiqian
Certification: ISO9001 CE ROHS FCC Model Number: ADSS-24B1

Detail Information

Place Of Origin: Guangzhou,China Cable Brand: Jiqian
Number Of Conductor: ≥ 10 Cettification: ISO9001 CE ROHS FCC
Manufacturer: Yes Application: Overhead
Outer Sheath: PE Number Of Fiber: 2-288
Storage And Use Temperature: -40℃ To +70℃.
Highlight:

250µm ADSS Fiber Optic Cable

,

Anti Tracking ADSS Fiber Optic Cable

Product Description

Special AT(Anti-tracking) Outer Sheath Strong Electric Erosion ADSS Fiber Optic Cable

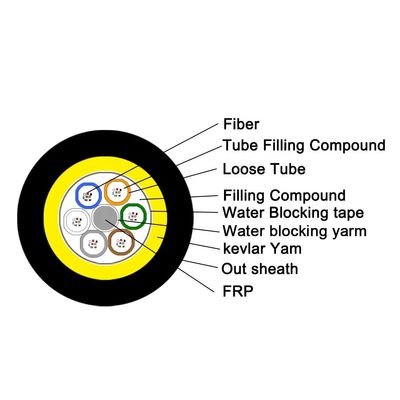

The ADSS optical cable adopts a loose tube stranded structure. The 250µm optical fiber is sheathed in a loose tube made of high modulus material,

and the loose tube is filled with waterproof compound. The loose tube (and the filling rope) is twisted around the non-metallic central reinforcement core (FRP) to form a compact cable core, and the gaps in the cable core are filled with water blocking grease. The cable core is extruded into a polyethylene (PE) inner sheath, then stranded to strengthen the aramid fiber, and finally it's completed by the polyethylene (PE)

250µm ADSS Fiber Optic Cable Anti Tracking Outer Sheath Electric Erosion 0





The design of ADSS optical cable fully considers the actual situation of power lines and is suitable for different levels of high-voltage power transmission lines. For 10kV and 35kV power lines, polyethylene (PE) sheath can be used; for 110kV and 220kV power lines, the cable hanging point must be determined by calculating the electric field intensity distribution and the electric tracking (AT) outer sheath must be used. At the same time, the amount of aramid fiber and the perfect stranding process are carefully designed to meet the application requirements of different spans.



Features

1. Low attenuation, low dispersion Proper design and precise excess length control make the cable have outstanding
2. mechanical and environmental performance. 3. Non-metallic construction makes the cable resist the electromagnetic interference well. 4. High strength aramid yarn as strength member ensures high tensile resistance, small diameter and light weight of the cable, fitting for different weather conditions and different installation spans. 5. Special AT(anti-tracking) outer sheath (optional) offers good electro-erosion resisting performance.



Structure and Technical Specifications ADSS-SJ(50-150M)

Ref. Outer
Diameter
(mm)
Ref. Weight
(kg/km)

Rec. Daily Max.
Working Tension

(kN)

Max Allowable
Working Tension
(kN)

Break

Strength

(kN)

Strength

Member

CSA

(mm2)

Modulus of
Elasticity
CSA

(kN/mm2)

Heat

Expansion

Coefficient

(x10- 6/K)

Suitable Span
 Meter
PE Jacket AT Jacket A B C D
11 110 120 1.0 2.5 8 3.0 6.6 2.1 120 80 100 80
11.5 115 125 1.5 4 10 4.5 7.3 1.8 180 120 150 120
12 120 130 2.5 6 15 7.5 8.3 1.5 250 150 290 150



Structure and Technical Specifications ADSS-DJ(50-750M)

Ref. Outer
Diameter
(mm)
Ref. Weight
(kg/km)

Rec. Daily Max.
Working Tension

(kN)

Max Allowable
Working Tension
(kN)

Break

Strength

(kN)

Strength

Member

CSA

(mm2)

Modulus of
Elasticity
CSA

(kN/mm2)

Heat

Expansion

Coefficient

(x10- 6/K)

Suitable Span
 Meter
PE Jacket AT Jacket A B C D
12.5 125 136 1.5 4 10 4.6 7.6 1.8 160 100 140 100
13.0 132 142 2.25 6 15 7.6 8.3 1.5 230 150 200 150
13.3 137 148 3.0 8 20 10.35 9.45 1.3 300 200 290 200
13.6 145 156 3.6 10 24 13.8 10.8 1.2 370 250 350 250
13.8 147 159 4.5 12 30 14.3 11.8 1.0 420 280 400 280
14.5 164 177 5.4 15 36 18.4 13.6 0.9 480 320 460 320
14.9 171 185 6.75 18 45 22.0 16.4 0.6 570 380 550 380
15.1 179 193 7.95 22 53 26.4 18.0 0.3 670 460 650 460
15.5 190 204 9.0 26 60 32.2 19.1 0.1 750 530 750 510



Optical characteristic



Fiber type

Attenuation

(+20℃)

Bandwidth

Numerical aperture

Optical cable cut-off wavelength

@850nm

@1300nm

@1310nm

@1550nm

@850nm

@1300nm

G.652 --- --- ≤0.36dB/km ≤0.22dB/km --- --- --- ≤1260nm
G.655 --- --- ≤0.40dB/km ≤0.23dB/km --- --- --- ≤1450nm
50/125µm ≤3.3dB/km ≤1.2dB/km --- --- ≥500MHz·km ≥500MHz·km 0.200±0.015 NA ---
62.5/125µm ≤3.5dB/km ≤1.2dB/km --- --- ≥200MHz·km ≥500MHz·km 0.275±0.015 NA ---



Application: Self-supporting overhead



Packing:

250µm ADSS Fiber Optic Cable Anti Tracking Outer Sheath Electric Erosion 1
