1MM Steel Wire Strength 2 4 8 12 24 Core Outdoor Fiber Optic Cable GYXTW
Contact Person : lillian
Phone Number : 8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | 1/2/3/4/5 km in one wooden drum |
|---|---|---|---|
| Delivery Time : | 3-5 dyas | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 30km Per day |
| Place of Origin: | Guangzhou China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE FCC | Model Number: | GYDTS/OPLC |
|
Detail Information |
|||
| Jacket Material: | PE | Outer Diameter: | 9mm |
|---|---|---|---|
| Fiber Count: | 2-144Core | Structure: | Unit Tube/Stranded Twisted Cable |
| Strength Member: | Steel Wire | Product Name: | Hybrid Optic Fiber Cable |
| Fiber Type: | YOFC Or As Request | Application: | Aerial,Duct |
| Color: | Black | Length: | 2km Or Customized Length |
| High Light: | G652D Fiber Optic Cable,OPLC Hybrid Fiber Optic Cable,9mm Aerial Fiber Optic Cable |
||
Product Description

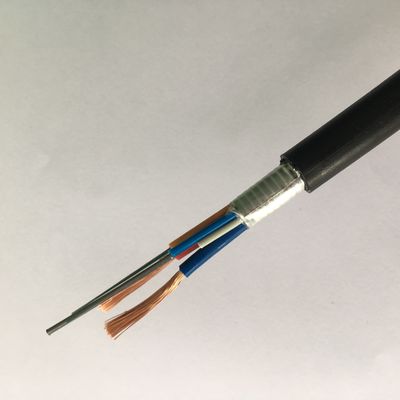

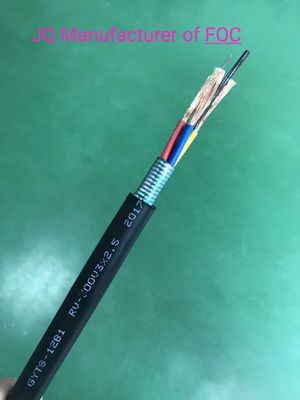

Hybrid Cable 2-24 Core GYXTW With Two Copper Power Wires
Composite Fiber Optic Cables that have a number of different components laid up within the bundle. These types of cables allow for multiple transmission paths by various components, whether they be metal conductors or fibre optics, and allow the user to have a single cable, therefore reducing the overall cost and lead time for installation.The 250μm fiber is positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The parallel steel wires are placed at the two sides tape. The cable is completed with a polyethylene (PE) sheath.
Features
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Compact structure and lightness, flexible and good bend-resistant performance
Low dispersion and attenuation.Proper design, precise control for fiber excess length and distinct stranding process render the excellent mechanical and enviromental properties.The armoring of steel wire and corrugate steel tape make cable have nice properties of moisture resistance and crush resistance
Optical Fiber Characteristics
| Item | Specification |
| Fiber type | G.652D |
| Attenuation | |
| @ 1310 nm | ≤0.36 dB/km |
| @ 1383 nm | ≤0.35 dB/km |
| @ 1550 nm | ≤0.22 dB/km |
| @ 1625 nm | ≤ 0.30 dB/km |
| Cable Cut-off Wavelength(λcc) | ≤1260 nm |
| Zero Dispersion Wavelength(nm) | 1300 ~ 1324 nm |
| Zero Dispersion Slope | ≤0.092 ps/(nm2.km) |
| Chromatic Dispersion | |
| @ 1288 ~ 1339 nm | ≤3.5 ps/(nm. km) |
| @ 1550 nm | ≤18 ps/(nm. km) |
| @ 1625 nm | ≤22 ps/(nm. km) |
| PMDQ | ≤0.2 ps/km1/2 |
| Mode Field Diameter @ 1310 nm | 9.2±0.4 um |
| Core Concentricity Error | ≤0.6 um |
| Cladding Diameter | 125.0±0.7 um |
| Cladding Non-circularity | ≤1.0% |
| Coating Diameter | 245±10 um |
| Proof Test | 100 kpsi (=0.69 Gpa), 1% |
Technical Parameters
| Range of Temperature | -20c~ +60c | |||||||||
| Riser | Type OFNR/OFN FT4 | |||||||||
| Plenum | Type OFNR/OFN FT6 | |||||||||
| Jacket | LSZH or PE | |||||||||
| Code name | cable cores |
Diameter (mm) |
Copper Wire (mm) |
Linear mass (kgk m) |
Tensile | Crush | Bending radius |
|||
| Short Term (N) |
Long Term (N) |
Short lerm N) |
Long Term (N) |
short Term N) |
Long Term (N) |
|||||
| OPLC-2*0.5 | 6~24 | 10 | 2*0.5 | 125 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*0.5 | 6-~24 | 10 | 4*0.5 | 130 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-2*0.75 | 6~24 | 10 | 2*0.75 | 128 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*0.75 | 6~24 | 10 | 4*0.75 | 135 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| oPLC-2*1.0 | 6~24 | 10 | 2*1.0 | 130 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*1.0 | 6-~24 | 12 | 4*1.0 | 150 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-2*1.5 | 6~24 | 12 | 2*1.5 | 140 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*1.5 | 6~24 | 12 | 4*1.5 | 160 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-2*2.5 | 6~-24 | 12 | 2*2.5 | 150 | 1500 | 600 | 1000 | 300 | 20D | 10D |
| OPLC-4*2.5 | 6-~24 | 14.5 | 4*2.5 | 180 | 1500 | 600 | 1000 | 300 | 20D | 10D |
Product Image
Application
Used for outdoor distribution box to the building's pipeline,overhead,buried.
Used in optical communication equipment room,
Used for tail fiber and jump in line.
Used for buildings surrounding into cable.
Packing&Delivery
1/2/3/4/km in one wooden drum,deliver days:5-8work days
