Premium ADSS Double Sheath Fiber Optic Cable Span 400m 24 48 72 96 144 288 Core
Contact Person : lillian
Phone Number : 8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Supply Ability : | 200KM Per day |
| Place of Origin: | Guangdong China | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001,ROHS,CE | Model Number: | ADSS |
|
Detail Information |
|||
| Fiber Type: | YOFC Or Fiberhome As Request | Fiber Count: | 12 24 48 Hilos |
|---|---|---|---|
| Color: | Black,Customized | Length: | 2km Or Customized Length |
| Jacket Material: | PE /AT/LSZH | Name: | ADSS Optical Fiber Cable |
| Strength Member: | FRP Central Strength Member | Operating Temperature: | -40 ~ +60 C |
| Span: | 100/200/300/400m/500m | Installation: | Self- Supporting Aerial |
| High Light: | YOFC ADSS Fiber Optic Cable,Single Mode ADSS Fiber Optic Cable |
||
Product Description
FIBER OPTIC CABLE TYPES ADSS Optical Fibre Span 100M with PE Jacket Self-supporting Aerial Cable

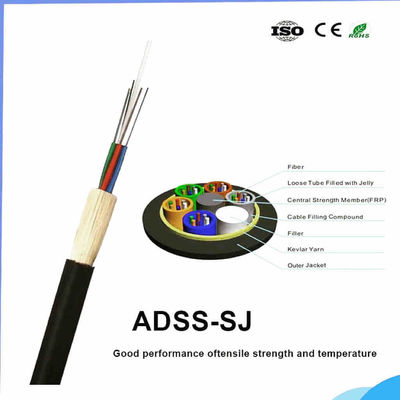

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics. The tubes arefilled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking)outer sheath.
|
The technical parameters are subject to different fiber counts,climate conditions(e.g.temperature,wind speed,ice coat thicknss),laying spans,voltage classes of power lines,ect.
|
||||
|
* Installation Method
|
||||
|
Typically used in areas with high electrical field strength or frequent lightning in the power communication transmission system.
|
||||
|
Transport/Storage temp
|
－30℃~+65℃
|
|
||
|
Installation temp
|
－15℃~+60℃
|
|
||
|
Operation temp
|
－40℃~+70℃
|
|
||
|
*Structural Characteristics
|
||||
|
Fiber count
|
2~144
|
Waterproof layer
|
Cable core filled with cable gel or water blocking tape,water blocking yarns.
|
|
|
Loose tube
|
Colored fiber in PBT loose tube,filled with fiber gel
|
High-strength aramid yam
|
Offers very high tensile strength,small diameter and light weight to fit different climate consitions and laying spans.
|
|
|
Central strength member
|
Non-metallic strength member FRP(Fiber Reinforce Plastic Rod)
|
Sheath
|
Anti-tracking(AT) material or Polyethylene(PE)
|
|
|
Span meter
|
200
|
300
|
400
|
|
Related Strength Tension(RTS)
|
17.5 kn
|
20.6 kn
|
28 kn
|
|
Max Allowable Tension(MAT)
|
6.9 kn
|
8.2 kn
|
11.5 kn
|
|
Allowable Crush Resistance
|
Long Term: 1100 n/100mm
|
Long Term: 1100 n/100mm
|
Long Term: 1100 n/100mm
|
|
Short Term: 2200 n/100mm
|
Short Term: 2200 n/100mm
|
Short Term: 2200 n/100mm
|
|
|
Minimum Bending Radius
|
Operating: 220 mm
|
Operating: 220 mm
|
Operating: 220 mm
|
|
Installlation: 360 mm
|
Installlation: 360 mm
|
Installlation: 360 mm
|
|
|
Temperature Range
|
Operating: -40 /+70℃
|
Operating: -40 /+70℃
|
Operating: -40 / +70℃
|
|
Installlation: -15 / +60℃
|
Installlation: -15 / +60℃
|
Installlation: -15 / +60℃
|
Features
Crush resistance and flexibility,The following measures are taken to ensure the cable watertight
100% cable core filling,Loose tube filling compound
Good mechanical and temperature performance
High strength loose tube that is hydrolysis resistant
Special tube filling compound ensure a critical protection of fiber
Single Fiber Reinforced Plastic as the central strength member
Optical Characteristics
| Items | Unit | Specification | |
| G652D | |||
| Mode Field Diameter | 1310nm | um | 9.2±0.4 |
| 1550nm | um | 10.4±0.5 | |
| Cladding Diameter | um | 124.8±0.7 | |
| Cladding Non-Circularity | % | ≤0.7 | |
| Core-Cladding Concentricity Error | um | ≤0.5 | |
| Coating Diameter | um | 245±5 | |
| Coating Non-Circularity | % | ≤6.0 | |
| Cladding-Coating Concentricity Error | um | ≤12 | |
| Cable Cutoff Wavelength | nm | acc≤1260 | |
| Attenuation(max.) | 1310nm | dB/km | ≤0.36 |
| 1550nm | dBkm | ≤0.22 | |
Technical Data
Structure and Technical Specifications ADSS-DJ(50-500m Span)
|
Ref.Outer Diameter (mm) |
Ref.Weight kg/km) |
Rec.DailyMax. Working Tension(kN) |
Max Allowable Working Tension [kN) |
Break Strength (kN) |
Strength Member CSA. (kN/mm2) |
Modulusof Elasticity CSA kNmm2)[ |
Heat Expansion Coefficient (X10-6/K) |
SuitableSpan Meter ABICP |
||||
|
PE |
AT |
|
||||||||||
|
12.5 |
125 |
136 |
1.5 |
4 |
10 |
4.6 |
7.6 |
1.8 |
160 |
100 |
140 |
100 |
|
13.0 |
132 |
142 |
2.25 |
6 |
15 |
7.6 |
8.3 |
1.5 |
230 |
150 |
200 |
150 |
|
13.3 |
137 |
148 |
3.0 |
8 |
20 |
10.35 |
9.45 |
1.3 |
300 |
200 |
290 |
200 |
|
13.6 |
145 |
156 |
3.6 |
10 |
24 |
13.8 |
10.8 |
1.2 |
370 |
250 |
350 |
250 |
|
13.8 |
147 |
159 |
4.5 |
12 |
30 |
14.3 |
11.8 |
1.0 |
420 |
280 |
400 |
280 |
|
14.5 |
164 |
177 |
5.4 |
15 |
36 |
18.4 |
13.6 |
0.9 |
480 |
320 |
460 |
320 |
|
14.9 |
171 |
185 |
6.75 |
18 |
45 |
22.0 |
16.4 |
0.6 |
570 |
380 |
550 |
380 |
|
15.1 |
179 |
193 |
7.95 |
22 |
53 |
26.4 |
18.0 |
0.3 |
670 |
460 |
650 |
460 |
|
15.5 |
190 |
204 |
9.0 |
26 |
|60 |
32.2 |
19.1 |
0.1 |
750 |
530 |
750 |
510 |

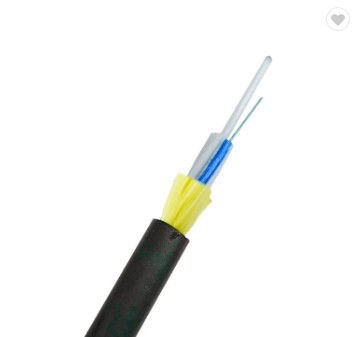

Product Picture
Application
Suitable for Aerial Laying method
Storage / Operating Temperature: -40℃~+70℃

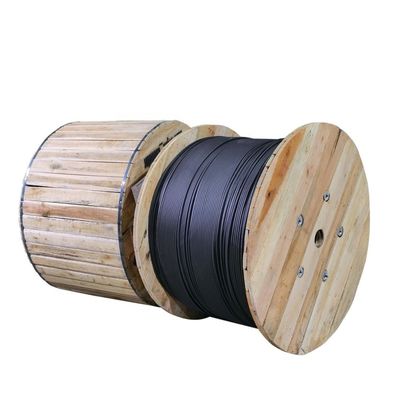

Package Detail
