144 Core 3km G652D PE Jacket ADSS Fiber Optic Cable

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 3-4 work days Payment Terms : L/C, T/T, Western Union
Supply Ability : 200KM Per day
Place of Origin: Guangdong China Brand Name: JQ/OEM
Certification: ISO9001,ROHS,CE Model Number: ADSS

Detail Information

Fiber Type: G652D/G655/G657A Fiber Count: 4-144 Core
Color: Black Or Customized Length: 3km Or Customized Length
Name: All Dielectric Self-supporting Aerial Cable Strength Member: FRP
Operating Temperature: -40 ~ +70 C Span: 80M100M/200M/300M/400M/500M
Installation: Self- Supporting Aerial Tube Meteriall: PBT
Outer Sheath: PE/AT
High Light:

G652D ADSS Fiber Optic Cable

,

3km ADSS Fiber Optic Cable

Product Description

FIBER OPTIC CABLE TYPES ADSS Optical Fibre Span 100M with PE Jacket Self-supporting Aerial Cable

3km G652D PE Jacket singlemode ADSS Fiber Optic Cable



Features:

◇low transmission attenuation and dispersion.
◇Reasonable design, precise control of excess length of fibers in the loose tube
and optimum cabling process provides the cable excellent mechanical and
environmental properties.
◇ The SZ-stranded, loose tube design isolated fibers from installation and
environmental rigors.
◇The water blocking gel filled core design provides the cable excellent water-proof
performance and moisture-resistance, with smaller size.
◇Excellent flexibility.
◇Due to the non-metallic structure, the cable is light and easy in laying and has a
very strong ability of anti-electromagnetic disturbance.
◇The cable is very suitable for self-supporting installation mode and has a high
tensile strength along with a powerful harsh-environment surviving capability.

Description:

Loose tube design, non-metallic central strength member, SZ stranded core filled with gel, aramid yam assistant strength member, outer PE sheath (Anti-tracking sheath used for voltages above 110kV)

Optical Characteristics



Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity %  ≤0.7
Core-Cladding Concentricity Error um  ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity %  ≤6.0
Cladding-Coating Concentricity Error um  ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22







Technical Data



Structure and Technical Specifications ADSS-DJ(50-500m Span)



Ref.Outer

Diameter

(mm)



Ref.Weight

kg/km)



Rec.DailyMax.

Working

Tension(kN)



Max

Allowable

Working

Tension

[kN)



Break

Strength

(kN)



Strength

Member

CSA.

(kN/mm2)



Modulusof

Elasticity

CSA

kNmm2)[



Heat

Expansion

Coefficient

(X10-6/K)



SuitableSpan

Meter

ABICP



PE



AT







12.5



125



136



1.5



4



10



4.6



7.6



1.8



160



100



140



100



13.0



132



142



2.25



6



15



7.6



8.3



1.5



230



150



200



150



13.3



137



148



3.0



8



20



10.35



9.45



1.3



300



200



290



200



13.6



145



156



3.6



10



24



13.8



10.8



1.2



370



250



350



250



13.8



147



159



4.5



12



30



14.3



11.8



1.0



420



280



400



280



14.5



164



177



5.4



15



36



18.4



13.6



0.9



480



320



460



320



14.9



171



185



6.75



18



45



22.0



16.4



0.6



570



380



550



380



15.1



179



193



7.95



22



53



26.4



18.0



0.3



670



460



650



460



15.5



190



204



9.0



26



|60



32.2



19.1



0.1



750



530



750



510

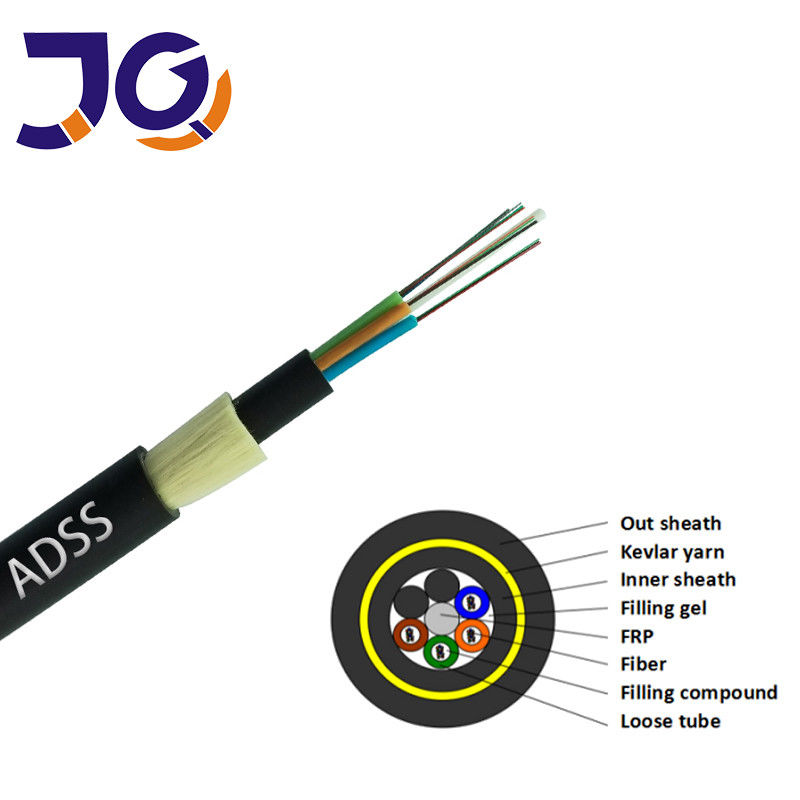

Product Picture



144 Core 3km G652D PE Jacket ADSS Fiber Optic Cable 0









Application

1.Suitable for Aerial Laying method

2.Storage / Operating Temperature: -40℃~+70℃

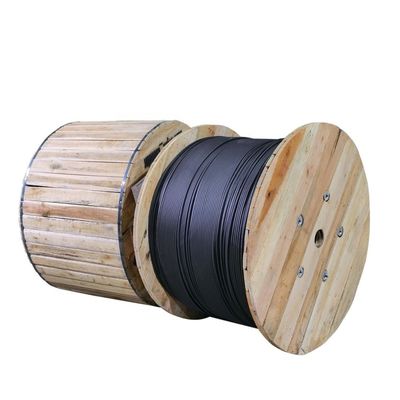

Package Detail

1.Export Wooden drum,Normal shipping length of the cable can  be 1km ~5km.
2.Other length is also available if required by buyer.
3.Mark:Usually we only attach the test report on the packaging, and your requestment  is also accptable.
4.Printing on the wooden drum
For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type

D.production date

144 Core 3km G652D PE Jacket ADSS Fiber Optic Cable 1

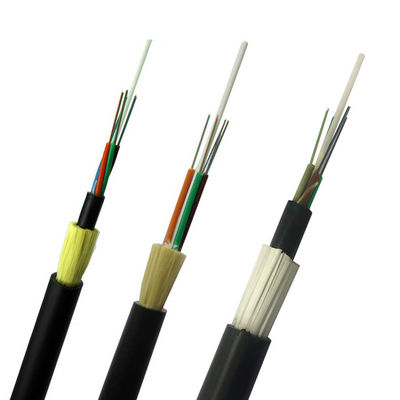

Customer Choose

144 Core 3km G652D PE Jacket ADSS Fiber Optic Cable 2









FAQ

1.Are you tradning company or manufacturer?
We are the manufacturer with 10 years' experience ,we are specialized in research,development and production
for fiber optic cable,drop cable and path cord ect. Our factory is in Guangzhou city,welcome to visit us!

2.About the quality?
We will delivery before tested every fibers when finished production.
After price confirmation, you can require for free samples to check our quality.

3.Can you accept small order?
Yes, small order is available. We support new project of our customers, as we know business is always from small order.

4.What is your delivery time?
Usually about 3-7days working days,it mainly depend on order quantity.
But pls be assured that we will arrange your goods asap after your payment .

5.Can you accept the OEM service?
Yes, we welcome the OEM service. We can print your logo on the product. Any idea from you is available.
