12 24 48 96 144 Core Double Sheath Double Armored Fiber Optic Cable For Underground Installation

Minimum Order Quantity : 1km Packaging Details : Wooden drum
Delivery Time : 3-5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 6000 per month
Place of Origin: China Brand Name: Jiqian
Certification: ISO9001 ROHS CE FCC Model Number: GYTS53/GYFTY53

Detail Information

Place Of Origin: Guangzhou,China Brand Name: Jiqian
Model Number: GYTS53/GYFTY53 Laying Mode: Direct Burial
Suitable Temperature: - 40℃~ +60℃ Central Strength Member: Metallic Tape
Number Of Fiber: 2-288 Manufacturer: Yes
Certification: ISO9001 ROHS CE-EMC FCC SDOC
Highlight:

250µM Underground Fiber Optic Cable

,

12 Cores Underground Fiber Optic Cable

Product Description

12 24 48 96 144 Core Double Sheath Double Armored Fiber Optic Cable For Underground Installation

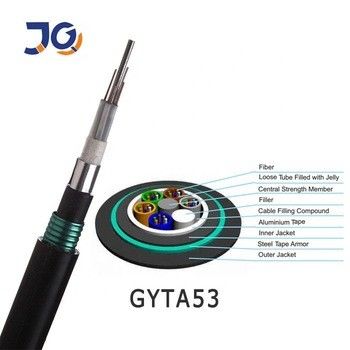

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

12 24 48 96 144 Core Double Sheath Double Armored Fiber Optic Cable For Underground Installation 0

Characteristics

  1. Steel wire strength filler protect tube fiber. Steel tape armord.
  2. Good ultra violet radiation resistant property.
  3. Double sheath and Double armored .
  4. Good moisture resistance.

Application

1. Direct burial

2. Underground

Technical Performance

China manufacturer cheap price steel tape armored GYTS53 12F fiber optic cable for under ground

Packing:

12 24 48 96 144 Core Double Sheath Double Armored Fiber Optic Cable For Underground Installation 2



Company Profile:

12 24 48 96 144 Core Double Sheath Double Armored Fiber Optic Cable For Underground Installation 3



Exhibition:

12 24 48 96 144 Core Double Sheath Double Armored Fiber Optic Cable For Underground Installation 4
FAQ:



Q1.What is your terms of packing?

A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements



Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages

before you pay the balance.



Q3. What is your terms of Trade?

A: EXW, FOB, CFR, CIF



Q4. How about your delivery time?

A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends

on the items and the quantity of your order.



Q5. Can you provide OEM or ODM

A: Yes



Q6. What is your sample policy?

A: We provide FREE sample if we have them in stock



Q7. Do you test all your goods before delivery?

A: Yes, all of cables have to be tested before delivery



Q8: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
