24Core Optical Fiber Cable GYTA33 GYFTY33 Under Water Stranded Armoured Loose Tube Cable

1km
MOQ
24Core Optical Fiber Cable GYTA33 GYFTY33 Under Water Stranded Armoured Loose Tube Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Type: G652D/G657A1
Color: Black
Jacket: PE
Fiber Count: 4-72cores
Product Name: Stranded Loose Tube Armored Cable
Length: 2km Or Customized Length
Installation: Aerial & Duct
Oem: Available
Application: Underground Buired
Name: Underground Directly Buried Armored Cable
Cable Type: Double Jacket Double Armored
Armored: Aluminun Tape+Steel Wire
Highlight:

Under water GYTA33 Fiber Optic Cable

,

Stranded Armoured GYTA33 Fiber Optic Cable

,

24 Core GYTA33 Fiber Optic Cable
Basic Infomation
Place of Origin: Guangzhou,China
Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE FCC SDOC
Model Number: GYTA33
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 4500KM Per Month
Product Description

Submarine Optical Fiber Cable GYTA33 GYFTY33



Water-proof GYFTY33 fiber optic cable is based on the GYFTY fiber optic cable structure, with enhanced waterproof and anti-extrusion functions. After being coated with aluminum tape longitudinally, a layer of PE inner sheath is extruded, and then a single layer or double layer thin round steel wire armor is longitudinally wrapped After installation, the polyethylene outer sheath is finally extruded into a cable.

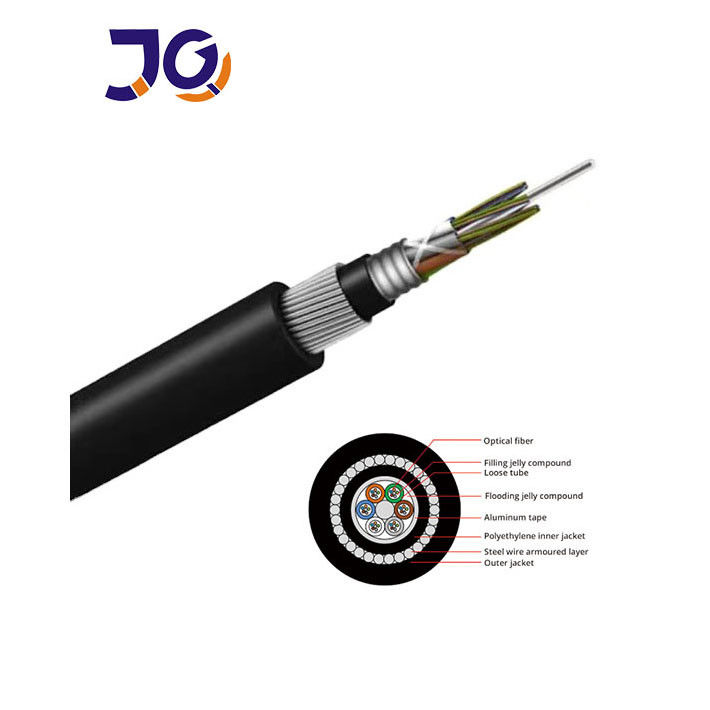

Product Construction

24Core Optical Fiber Cable GYTA33 GYFTY33 Under Water Stranded Armoured Loose Tube Cable 0

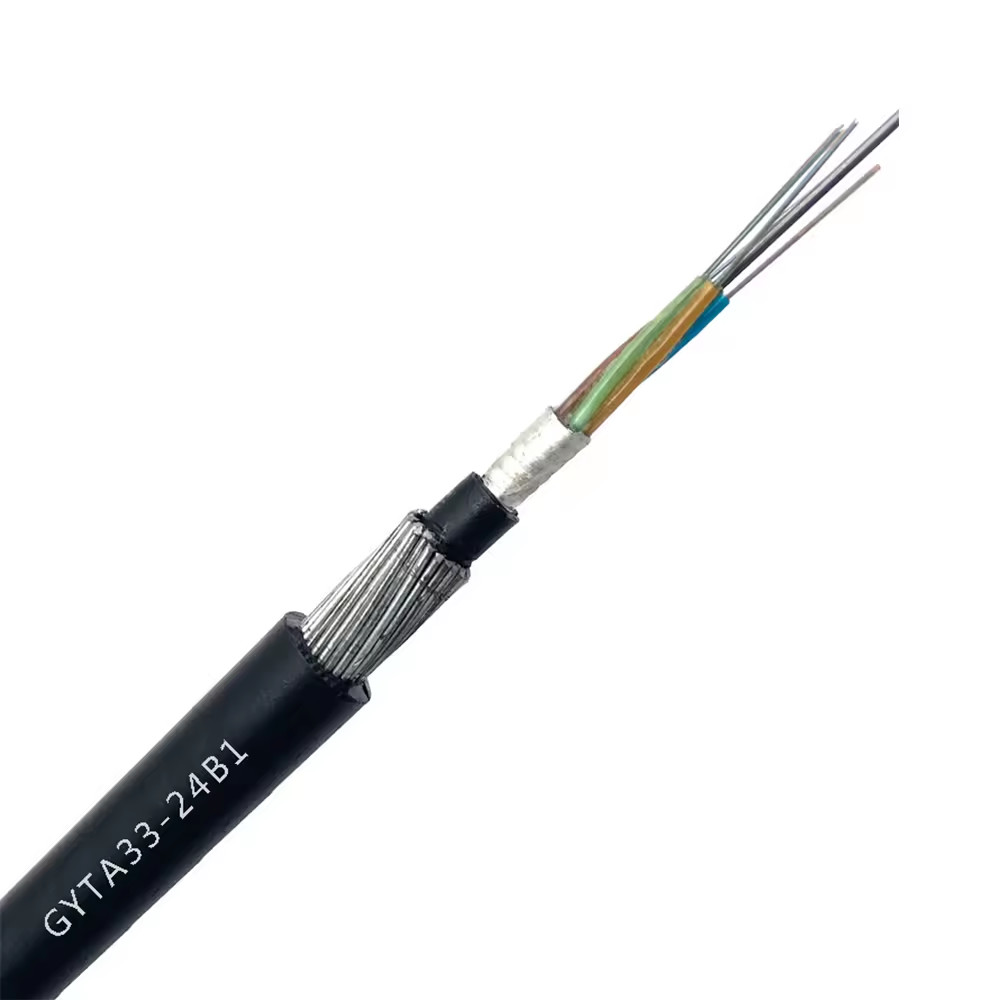

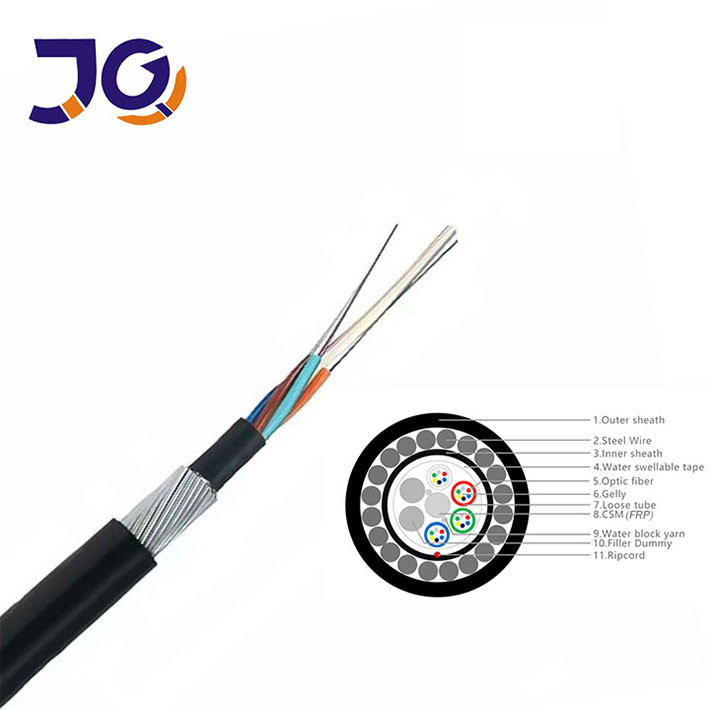

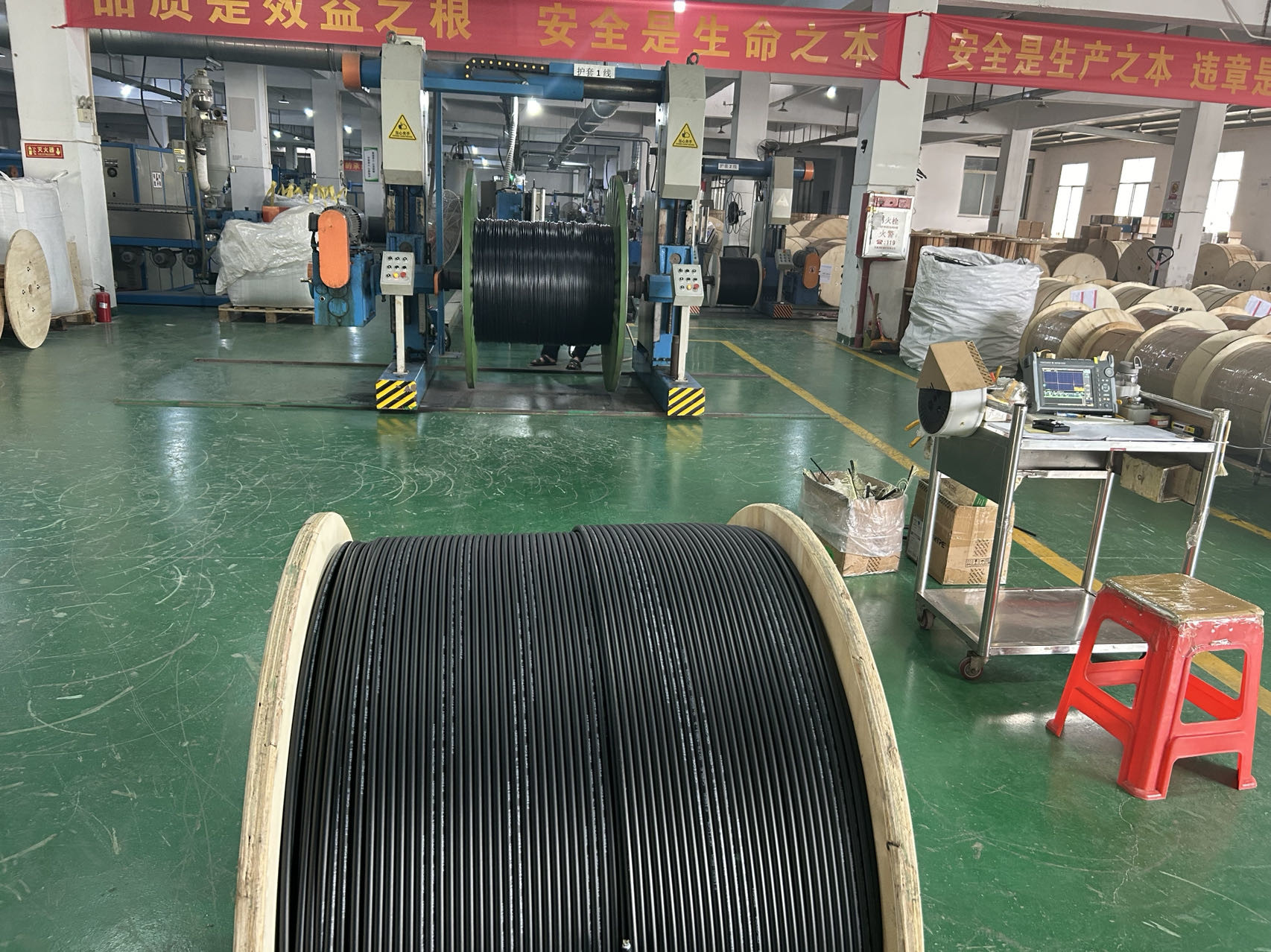

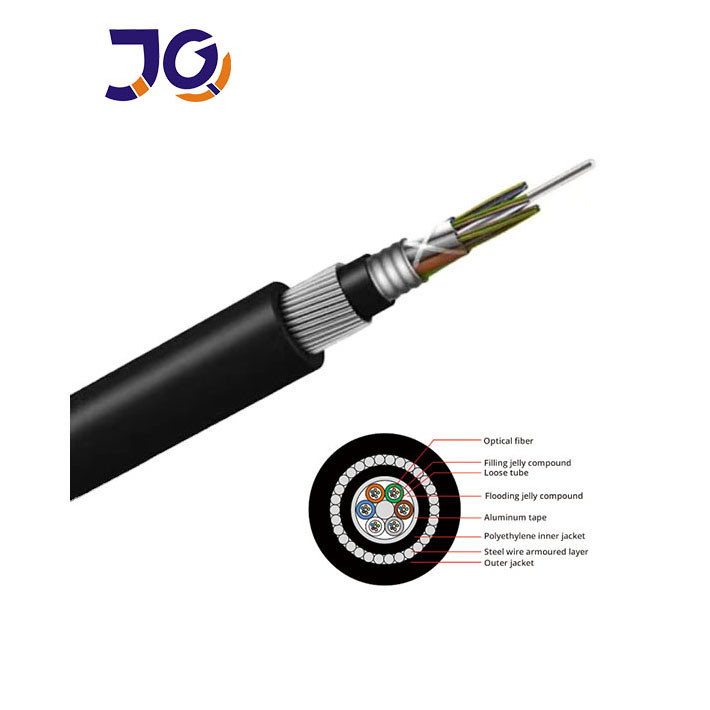

Cable Picture

24Core Optical Fiber Cable GYTA33 GYFTY33 Under Water Stranded Armoured Loose Tube Cable 1

24Core Optical Fiber Cable GYTA33 GYFTY33 Under Water Stranded Armoured Loose Tube Cable 2

24Core Optical Fiber Cable GYTA33 GYFTY33 Under Water Stranded Armoured Loose Tube Cable 3



Application

Suitable for directly buired laying or Underwater method

24Core Optical Fiber Cable GYTA33 GYFTY33 Under Water Stranded Armoured Loose Tube Cable 4



Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % ≤0.7
Core-Cladding Concentricity Error um ≤0.5
Coating Diameter um 245±5
Coating Non-Circularity % ≤6.0
Cladding-Coating Concentricity Error um ≤12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km ≤0.36
1550nm dBkm ≤0.22





Technical Parameters

item
value
Model Number
GYTA33
Type
Outdoor Fiber Optic Cable
Place of Origin
Guangdong,China
Brand Name
jiqian
Number of Conductors
≥ 10
Fiber count
2-288 Cores
Fiber Type
G652D Single mode or as your request
Central strength member
steel wire
Armoured
Al tape
Outer Sheath
PE
Cable Structure
Multi-Loose Tube Aluminum Tape armor
Color
Black or as your need
Application
Direct burial, underground,sea
Certification
CE/ROHS/ISO9001 /ANATEL
Note : This datasheet can only be a reference, but not a supplement to the contract.
Please contact our sales people for more detailed information




Related-products: GYTA53

24Core Optical Fiber Cable GYTA33 GYFTY33 Under Water Stranded Armoured Loose Tube Cable 5



Packing

1/2/3/4km or customized length export wooden drum

professional, environmentally friendly, convenient and efficient packaging services will be provided.

24Core Optical Fiber Cable GYTA33 GYFTY33 Under Water Stranded Armoured Loose Tube Cable 6

24Core Optical Fiber Cable GYTA33 GYFTY33 Under Water Stranded Armoured Loose Tube Cable 7

24Core Optical Fiber Cable GYTA33 GYFTY33 Under Water Stranded Armoured Loose Tube Cable 8

1. Factory Directly Supply Price.

2. Life Time Warranty:More 25years

3. Fastest Delivery Time: 1 days for Samples, 3-15 days for bulk production.

4. 100% test before shipping.

5. OEM/ODM is available.

6. Professional manufacturer. Welcome to visit our factory!

24Core Optical Fiber Cable GYTA33 GYFTY33 Under Water Stranded Armoured Loose Tube Cable 9



We Support OEM and Customize products.

Welcome to your inquiry! Welcome to visit our facotry!
Contact me at +86 18122384553 to get free sample.
