Undersea Direct Buried Underwater GYTA33 GYTS33 Steel Wire Armored Fibre Optic Cable

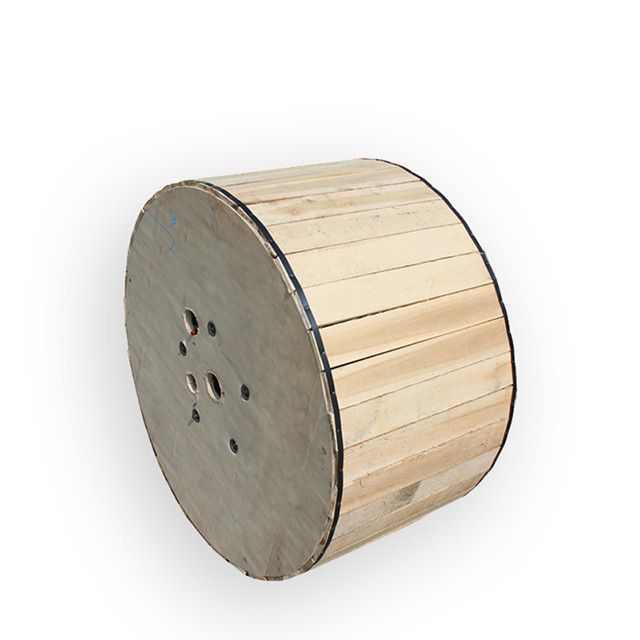

Minimum Order Quantity : 6 km Packaging Details : iron drum
Delivery Time : 5 days Payment Terms : L/C, T/T, Western Union
Supply Ability : 200KM Per day
Place of Origin: China Brand Name: JQ/OEM
Certification: ISO9001, FCC, ROHS/CCC Model Number: GYTA33

Detail Information

Color: Black Jacket Metarial: HDPE
Strength Member: Steel Wire Fiber Count: 2-288 Cores
Installation: Under Water &directly Burail Sample: Acceptable
Product Name: GYTA33 Outdoor Fiber Cable Application: Network/long Distance Communication
Cable Drum: 3KM Fiber Type: Singlemode G652D
Highlight:

GYTA33 Armored Fibre Optic Cable

,

Direct Buried Armored Fibre Optic Cable

Product Description

GYTA33 directly burial underwater fiber cable

Product Description

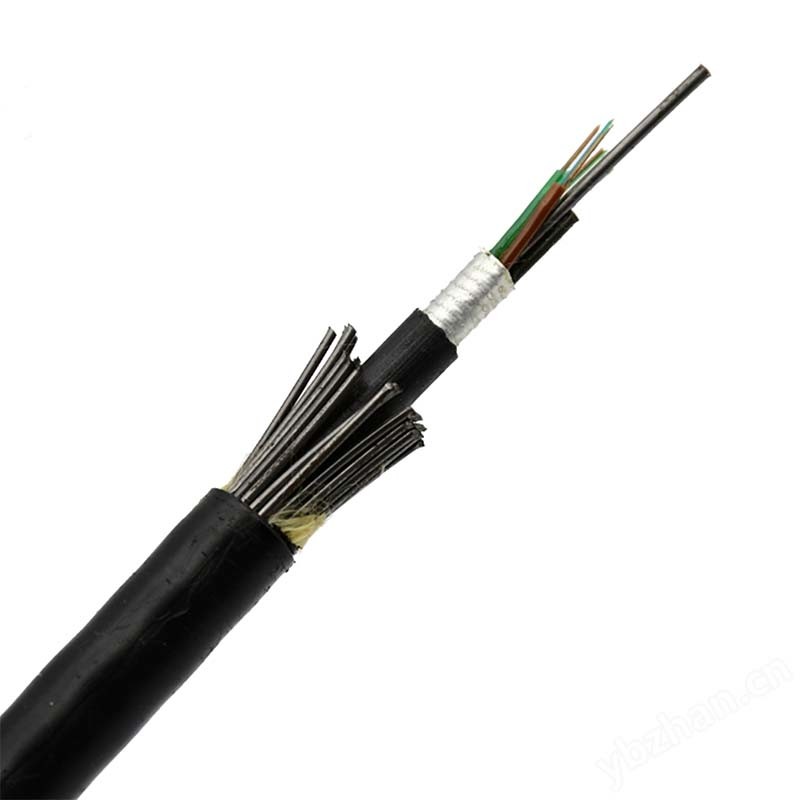

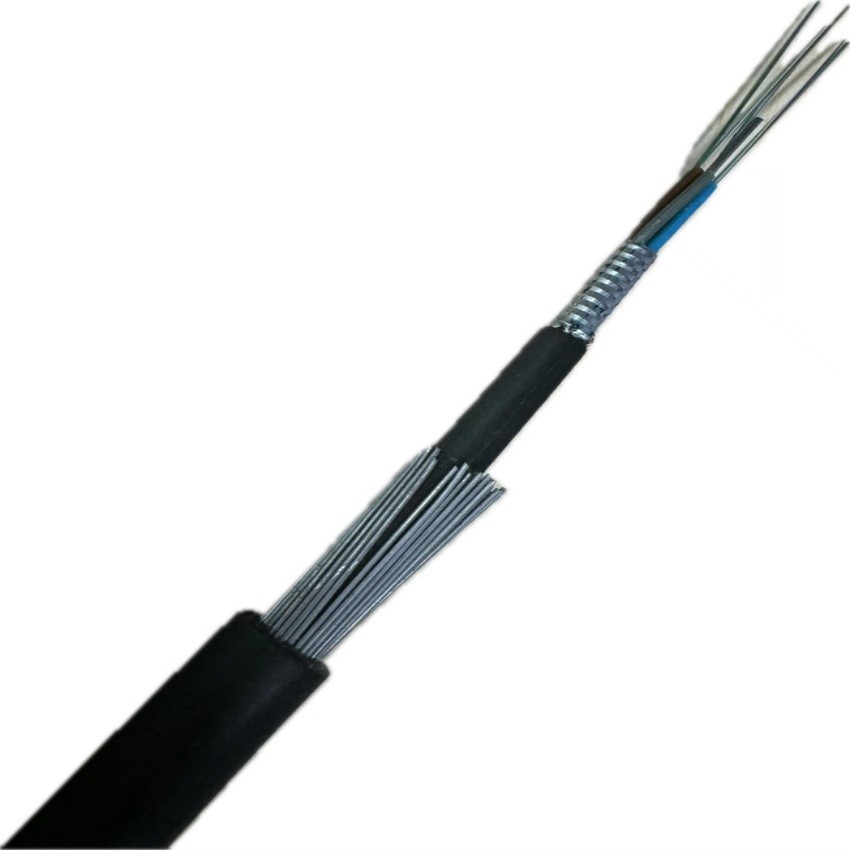

The structure of the GYTA33 optical cable is to put 250um optical fiber into a loose sleeve made of high-modulus material. The loose sleeve is filled with waterproof compounds. The center of the cable core is a metal reinforced core. For some core optical cables, a layer of polyethylene (PE) sheath needs to be squeezed outside the metal reinforced core, and the loose sleeve is surrounded by The central reinforcement is twisted into a compact round cable core, and the gap in the cable core is filled with water-blocking filler. After coating the aluminum tape longitudinally, a layer of PE inner sheath is squeezed, and then a single layer of thin round steel wire armor is longitudinally wrapped, and finally the polyethylene outer sheath is squeezed into a cable.



Features



Whole section water blocking structure ensures good water blocking performance Special tube filling compound ensure a critical protection of fiber Accurate residual length control ensures that cable has good tensile and temperature performance The armor by smooth round steel wire greatly strengthens the tensile strength and improves the crush resistance of fiber optical cable Polyethylene sheath has good radiation resistance The service life of the product is more than 30 years.





Applications:



• Adopted to Outdoor distribution.

• Suitable for directly burial aying method.

• Suitable for water and submarine area.




Optical Characteristics

Items Unit Specification
G652D
Mode Field Diameter 1310nm um 9.2±0.4
1550nm um 10.4±0.5
Cladding Diameter um 124.8±0.7
Cladding Non-Circularity % 0.7
Core-Cladding Concentricity Error um 0.5
Coating Diameter um 245±5
Coating Non-Circularity % 6.0
Cladding-Coating Concentricity Error um 12
Cable Cutoff Wavelength nm acc≤1260
Attenuation(max.) 1310nm dB/km 0.36
1550nm dBkm 0.22





Technical Parameters

Fiber
Count
Diameter
(MI)
Weight
(KG/KMI)
Min.Bend Radius Mlin.Tension
(N)
Crush
(N/100MMl)
Static Dynamic Long Term Short Term Long Term Short Term
2-30 13.5 245

10
Times
Diameter

















20
Times
Diameter

















4000 10000 3000 5000
32-36 13.8 252 4000 10000 3000 5000
38-60 14.5 275 4000 10000 3000 5000
62-72 15.0 285 4000 10000 3000 5000
74-96 15.5 295 4000 10000 3000 5000
98-120 16.0 305 4000 10000 3000 5000
122-144 17.0 315 4000 10000 3000 5000
146-216 19.0 345 4000 10000 3000 5000
218-240 20.5 365 4000 10000 3000 5000
242-288 21.5 395 4000 10000 3000 5000



Tips: all the data ablove is reference to our factory, pls contact Philip for more details , WA:008613422342788





Detail product pictures





Undersea Direct Buried Underwater GYTA33 GYTS33 Steel Wire Armored Fibre Optic Cable 0



Undersea Direct Buried Underwater GYTA33 GYTS33 Steel Wire Armored Fibre Optic Cable 1

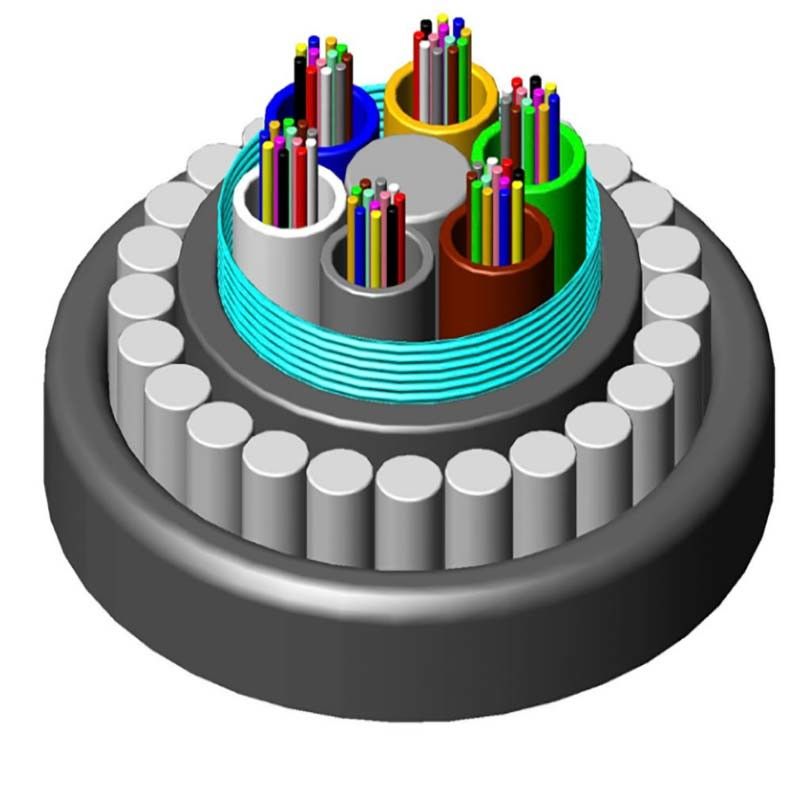

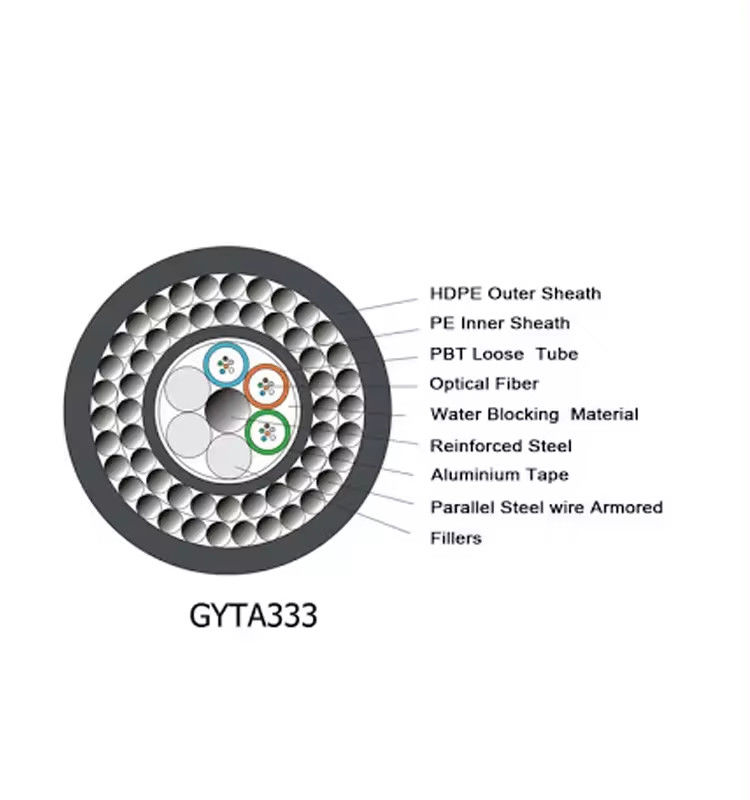

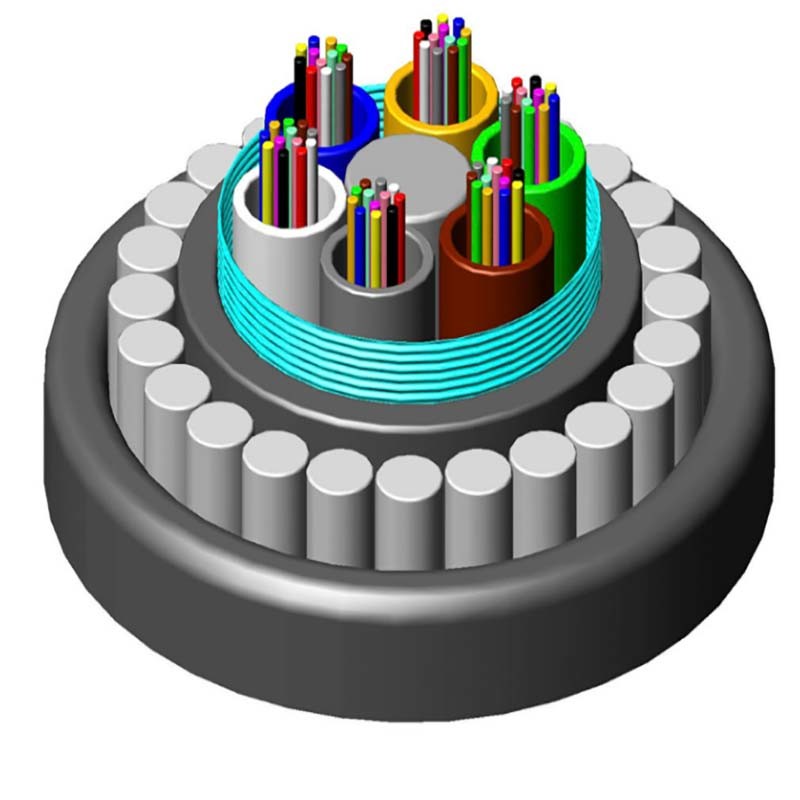

                                                                       cable structure



Undersea Direct Buried Underwater GYTA33 GYTS33 Steel Wire Armored Fibre Optic Cable 2



                                                           underwater application







Undersea Direct Buried Underwater GYTA33 GYTS33 Steel Wire Armored Fibre Optic Cable 3



                                                               direct burial application



factory shows





Undersea Direct Buried Underwater GYTA33 GYTS33 Steel Wire Armored Fibre Optic Cable 4





Undersea Direct Buried Underwater GYTA33 GYTS33 Steel Wire Armored Fibre Optic Cable 5



FAQ



Q1:  How the warranty for products ?

A: 10 years,and maintance for whole life



Q2:  Can we make OEM for products?

A: Yes, we can print your logo or label on the products or on the box.



Q3:  Can you provide free samples ?

A:  you can get free samples from my company.



Q4: Are you factory direct?
A:we are a professional Cable manufacturer, specialized in Fiber Optic Cable, such as ADSS, , MPO Breakout Cable, Fiber Optic Patch Cord. Our products are mainly exported to Europe, South America, and some other countries and areas.


Q5: What is your main products?
A:Outdoor fiber optic cables such as GYTA33/GYXTC8Y/ADSS ,GYTA, GYFTS, ASU, GYXTW / indoor fiber optic cables /FTTH Drop cables

Q6: Do you have certificate for raw material?
A:We build long-term relationship cooperation with qualified ISO9001 ROHS raw material suppliers
