Double sheath armored underground G652D 12 24 36 48 72 96 144 288 Core direct buried GYTY53 Fiber Optic Cable

1KM
MOQ
80-600USD/KM
Price
Double sheath armored underground G652D 12 24 36 48 72 96 144 288 Core direct buried GYTY53 Fiber Optic Cable
Features Gallery Product Description Request A Quote
Features
Specifications
Fiber Count: 12 24 48 72 96 144 288 Core
Sheath: PE
Warranty: 25 Years
MOQ: 1KM
OEM: Yes
Amoured: Yes
Length: 1/2/3/4/5KM
Feature: Double Sheath Armored Underground Installation
Highlight:

GYTY53 Fiber Optic Cable

,

Direct Buried Fiber Optic Cable

Basic Infomation
Place of Origin: Guangdong,China
Brand Name: Jiqian
Certification: CE/ISO9001
Model Number: GYTY53
Payment & Shipping Terms
Packaging Details: wooden drum
Delivery Time: 3-5 days, it depends on your quantity
Payment Terms: L/C, D/A, T/T, Western Union
Supply Ability: 60000KM/month
Product Description

Double sheath armored underground G652D 12 24 36 48 72 96 144 288 Core direct buried GYTY53 Fiber Optic Cables

Application:

underground

direct buried

Double sheath armored underground G652D 12 24 36 48 72 96 144 288 Core direct buried GYTY53 Fiber Optic Cable 0



Double sheath armored underground G652D 12 24 36 48 72 96 144 288 Core direct buried GYTY53 Fiber Optic Cable 1





More choice

Double sheath armored underground G652D 12 24 36 48 72 96 144 288 Core direct buried GYTY53 Fiber Optic Cable 2

Optical Characteristics
Item
G.652
G.655
50/125um
62.5/125um
Attenuation
@850nm

≤3.0dB/km
≤3.2dB/km
@1300nm

≤1.0dB/km
≤1.2dB/km
@1310nm
≤0.36dB/km
≤0.40dB/km

@1550nm
≤0.22dB/km
≤0.23dB/km

Bandwidth
@850nm

≥500MHZ.km
≥200MHZ.km
@1300nm

≥1000MHZ.km
≥600MHZ.km
Numerical aperture

0.200±0.015NA
0.275±0.015NA
Cable cut-off wavelength
≤1260mm
≤1450mm




Double sheath armored underground G652D 12 24 36 48 72 96 144 288 Core direct buried GYTY53 Fiber Optic Cable 3

Double sheath armored underground G652D 12 24 36 48 72 96 144 288 Core direct buried GYTY53 Fiber Optic Cable 4

Double sheath armored underground G652D 12 24 36 48 72 96 144 288 Core direct buried GYTY53 Fiber Optic Cable 5

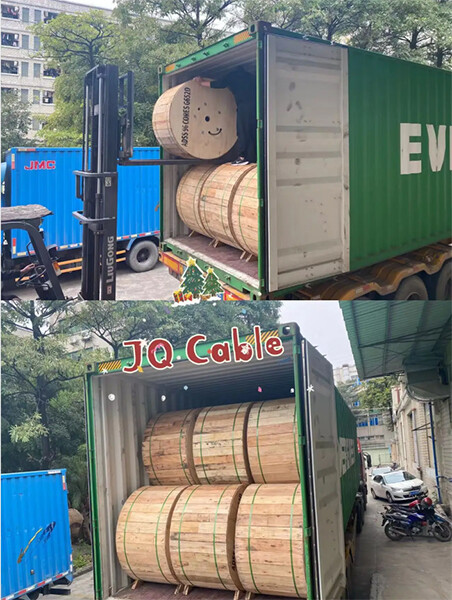

Packing & delivery:

2km/3km/4km per wooden drum

Normally it takes 3-5 days,it depends on the order quantity



Guangzhou Jiqian fiber optic cable co.,ltd is a high-tech company engaged in researching, manufacturing, selling communication products with our import and export rights. Our corporation is a professional manufacturer of fiber optic cable and patch cord over 8 years, with ISO 9001:2015 certificate. OEM is available and we can design any kind of fiber optic cables for you.

The main products of our company are optical fiber cables and related optical fiber components. All of the products are widely used in telecom, and exported to many countries,for example Egypt, Pakistan, Maldives India,Brazil and Chile etc.

Double sheath armored underground G652D 12 24 36 48 72 96 144 288 Core direct buried GYTY53 Fiber Optic Cable 6

Double sheath armored underground G652D 12 24 36 48 72 96 144 288 Core direct buried GYTY53 Fiber Optic Cable 7

Double sheath armored underground G652D 12 24 36 48 72 96 144 288 Core direct buried GYTY53 Fiber Optic Cable 8



FAQ:

1,Q:Are you a factory or trade company?

A:We are a factory



2,Q:Where is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.



3.Q:Which brand of fiber do you use?

A:Corning,YOFC,Fiberhome,etc



4,Q:Can you accept small order?

A:Yes, small order is available .We support new project of our customers as we know business is always from small order.



5,Q:Whats delivery time?

A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.



6.Can you supply customized products and logo?

A:Yes. We supply OEM service.



7.Whats your payment terms?

A: We accept T/T,L/C,Western Union, 30% in advance and 70% before shipment.

Double sheath armored underground G652D 12 24 36 48 72 96 144 288 Core direct buried GYTY53 Fiber Optic Cable 9
