Premium ADSS Double Sheath Fiber Optic Cable Span 400m 24 48 72 96 144 288 Core
Contact Person : Lillian
Phone Number : +8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | Wooden drum |
|---|---|---|---|
| Delivery Time : | 3-5 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
| Supply Ability : | 4500 per month |
| Place of Origin: | China | Brand Name: | Jiqian |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | ADSS-Double sheath |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou,China | Cable Brand: | Jiqian |
|---|---|---|---|
| Number Of Conductor: | ≥ 10 | Cettification: | ISO 9001 |
| Manufacturer: | Yes | Application: | Overhead |
| Outer Sheath: | PE | Number Of Fiber: | 2-288 |
| Storage And Use Temperature: | -40℃ To +70℃. | ||
| High Light: | Aerial ADSS Fiber Optic Cable,G657A ADSS Fiber Optic Cable,G652D ADSS Fiber Optic Cable |
||
Product Description

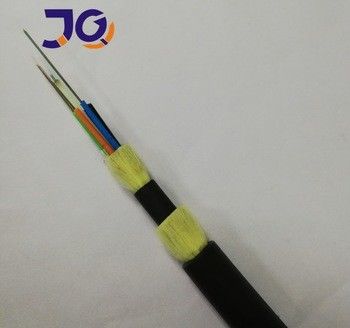

ADSS Fiber Optic Cable 12 24 48 96 Cores G652D/G657A Aerial Optical fiber Cable
The ADSS optical cable adopts a loose tube stranded structure. The 250µm optical fiber is sheathed in a loose tube made of high modulus material,
and the loose tube is filled with waterproof compound. The loose tube (and the filling rope) is twisted around the non-metallic central reinforcement core (FRP) to form a compact cable core, and the gaps in the cable core are filled with water blocking grease. The cable core is extruded into a polyethylene (PE) inner sheath, then stranded to strengthen the aramid fiber, and finally it's completed by the polyethylene (PE)
The design of ADSS optical cable fully considers the actual situation of power lines and is suitable for different levels of high-voltage power transmission lines. For 10kV and 35kV power lines, polyethylene (PE) sheath can be used; for 110kV and 220kV power lines, the cable hanging point must be determined by calculating the electric field intensity distribution and the electric tracking (AT) outer sheath must be used. At the same time, the amount of aramid fiber and the perfect stranding process are carefully designed to meet the application requirements of different spans.
Features
• Can be installed without cutting off the power
• Light weight and small cable diameter, reducing the impact of ice, wind and the load on the tower and support
• Large span, the maximum span is more than 1000 meters
• Has excellent tensile properties and temperature characteristics
• Life expectancy 30 years
Structure and Technical Specifications ADSS-SJ(50-150M)
| Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
Rec. Daily Max. (kN) |
Max Allowable Working Tension (kN) |
Break Strength (kN) |
Strength Member CSA (mm2) |
Modulus of (kN/mm2) |
Heat Expansion Coefficient (x10- 6/K) |
Suitable Span Meter |
||||
| PE Jacket | AT Jacket | A | B | C | D | |||||||
| 11 | 110 | 120 | 1.0 | 2.5 | 8 | 3.0 | 6.6 | 2.1 | 120 | 80 | 100 | 80 |
| 11.5 | 115 | 125 | 1.5 | 4 | 10 | 4.5 | 7.3 | 1.8 | 180 | 120 | 150 | 120 |
| 12 | 120 | 130 | 2.5 | 6 | 15 | 7.5 | 8.3 | 1.5 | 250 | 150 | 290 | 150 |
Structure and Technical Specifications ADSS-DJ(50-750M)
| Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
Rec. Daily Max. (kN) |
Max Allowable Working Tension (kN) |
Break Strength (kN) |
Strength Member CSA (mm2) |
Modulus of (kN/mm2) |
Heat Expansion Coefficient (x10- 6/K) |
Suitable Span Meter |
||||
| PE Jacket | AT Jacket | A | B | C | D | |||||||
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13.0 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
Optical characteristic
|
Fiber type |
Attenuation (+20℃) |
Bandwidth |
Numerical aperture |
Optical cable cut-off wavelength |
||||
|---|---|---|---|---|---|---|---|---|
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
|||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
Application: Self-supporting overhead
