ADSS Overhead All Dielectric Fiber Optic Cable Single Mode 96 Core

Contact Now

ADSS Overhead All Dielectric Fiber Optic Cable Single Mode 96 Core

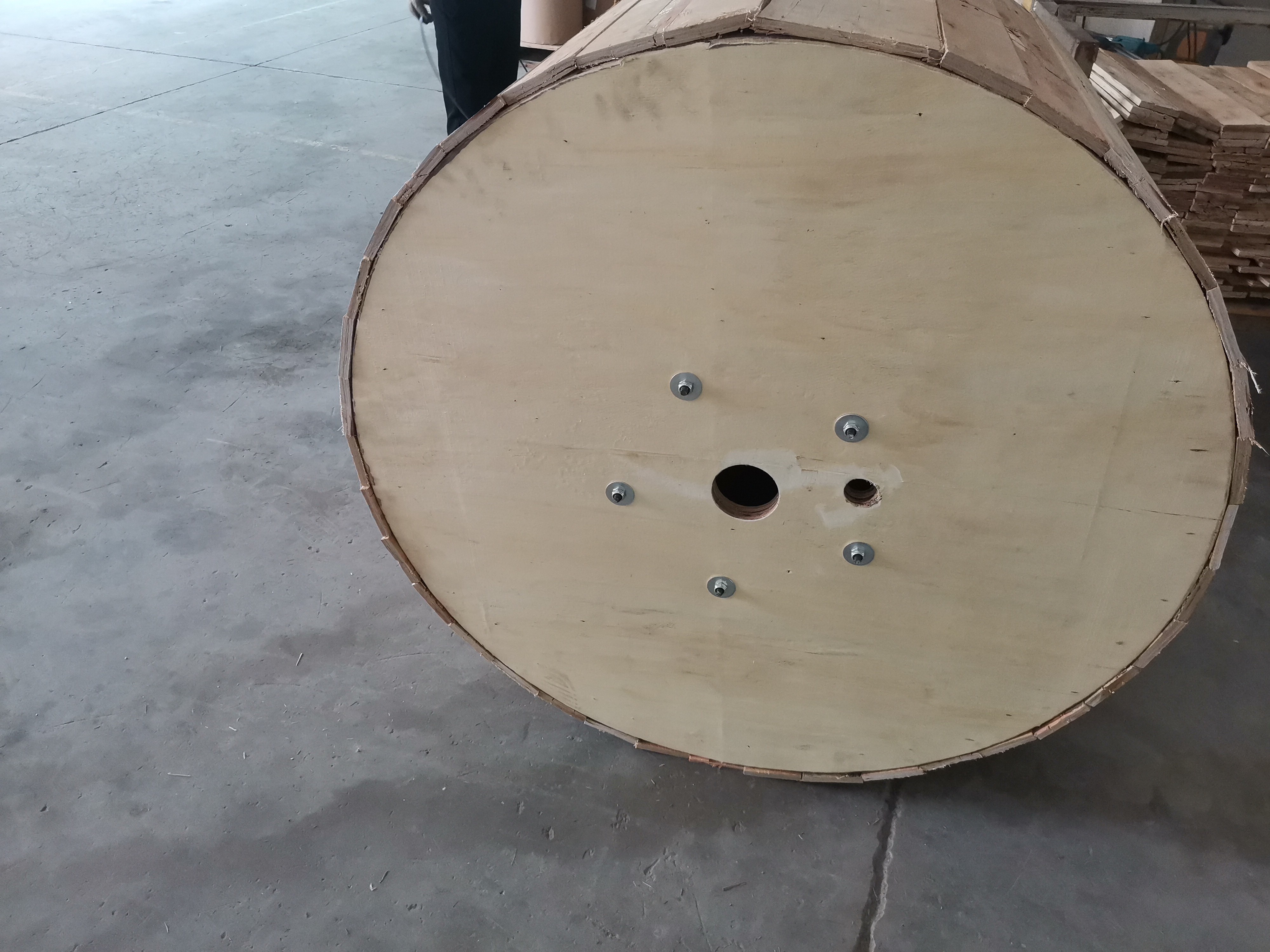

Minimum Order Quantity :	1km	Packaging Details :	Wooden drum
Delivery Time :	3-5 days,it depends on order quantity	Payment Terms :	L/C, T/T, Western Union,Alipay
Supply Ability :	4500 per month

Place of Origin:	China	Brand Name:	Jiqian
Certification:	ISO 9001/CE/ROHS/FCC	Model Number:	ADSS-24B1

Detail Information
Place Of Origin:	Guangzhou,China	Cable Brand:	Jiqian
Number Of Conductor:	≥ 10	Cettification:	ISO 9001/CE/ROHS/FCC
Manufacturer:	Yes	Application:	Overhead
Outer Sheath:	PE	Number Of Fiber:	2-288
Storage And Use Temperature:	-40℃ To +70℃.
High Light:	All Dielectric Fiber Optic Cable , 96 Core Fiber Optic Cable , FCC ADSS Fiber Optic Cable

Product Description

Cabo fibra optica ADSS Outdoor Single Mode 96 Cores Overhead All-dielectric Fiber Optic Cable

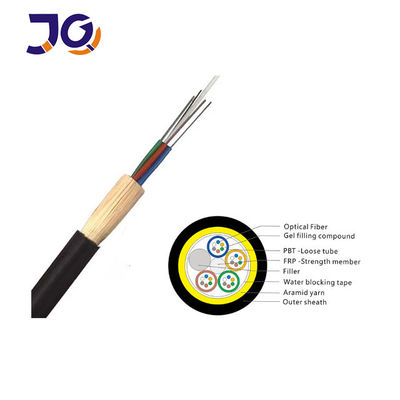

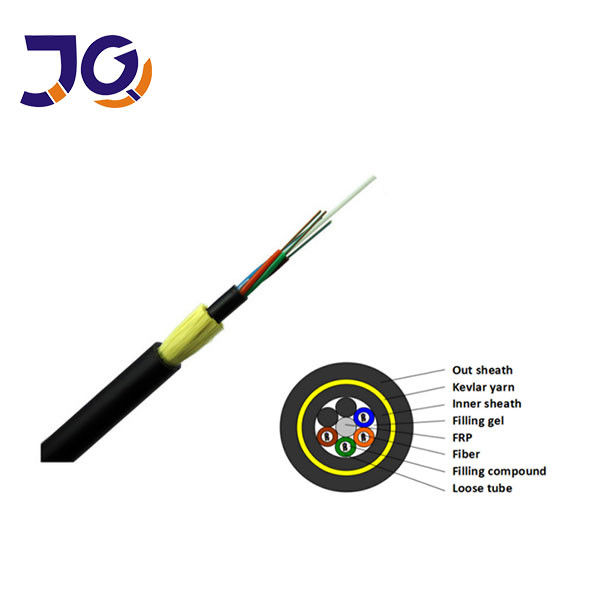

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.

The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP

(Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core.

After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath.

After stranded layer of aramid yarns are applied over the inner sheath as strength member,

the cable is completed with PE or AT (anti-tracking) outer sheath.

ADSS Overhead All Dielectric Fiber Optic Cable Single Mode 96 Core 0

ADSS Overhead All Dielectric Fiber Optic Cable Single Mode 96 Core 1

Features

• Can be installed without cutting off the power

• Light weight and small cable diameter, reducing the impact of ice, wind and the load on the tower and support

• Large span, the maximum span is more than 1000 meters

• Has excellent tensile properties and temperature characteristics

• Life expectancy 30 years

Structure and Technical Specifications ADSS-SJ(50-150M)

Ref. Outer Diameter (mm)	Ref. Weight (kg/km)		Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	Suitable Span Meter
Ref. Outer Diameter (mm)	PE Jacket	AT Jacket	Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	A	B	C	D
11	110	120	1.0	2.5	8	3.0	6.6	2.1	120	80	100	80
11.5	115	125	1.5	4	10	4.5	7.3	1.8	180	120	150	120
12	120	130	2.5	6	15	7.5	8.3	1.5	250	150	290	150

Structure and Technical Specifications ADSS-DJ(50-750M)

Ref. Outer Diameter (mm)	Ref. Weight (kg/km)		Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	Suitable Span Meter
Ref. Outer Diameter (mm)	PE Jacket	AT Jacket	Rec. Daily Max. Working Tension (kN)	Max Allowable Working Tension (kN)	Break Strength (kN)	Strength Member CSA (mm2)	Modulus of Elasticity CSA (kN/mm2)	Heat Expansion Coefficient (x10- 6/K)	A	B	C	D
12.5	125	136	1.5	4	10	4.6	7.6	1.8	160	100	140	100
13.0	132	142	2.25	6	15	7.6	8.3	1.5	230	150	200	150
13.3	137	148	3.0	8	20	10.35	9.45	1.3	300	200	290	200
13.6	145	156	3.6	10	24	13.8	10.8	1.2	370	250	350	250
13.8	147	159	4.5	12	30	14.3	11.8	1.0	420	280	400	280
14.5	164	177	5.4	15	36	18.4	13.6	0.9	480	320	460	320
14.9	171	185	6.75	18	45	22.0	16.4	0.6	570	380	550	380
15.1	179	193	7.95	22	53	26.4	18.0	0.3	670	460	650	460
15.5	190	204	9.0	26	60	32.2	19.1	0.1	750	530	750	510

Optical characteristic

Fiber type	Attenuation (+20℃)				Bandwidth		Numerical aperture	Optical cable cut-off wavelength
Fiber type	@850nm	@1300nm	@1310nm	@1550nm	@850nm	@1300nm	Numerical aperture	Optical cable cut-off wavelength
G.652	---	---	≤0.36dB/km	≤0.22dB/km	---	---	---	≤1260nm
G.655	---	---	≤0.40dB/km	≤0.23dB/km	---	---	---	≤1450nm
50/125µm	≤3.3dB/km	≤1.2dB/km	---	---	≥500MHz·km	≥500MHz·km	0.200±0.015 NA	---
62.5/125µm	≤3.5dB/km	≤1.2dB/km	---	---	≥200MHz·km	≥500MHz·km	0.275±0.015 NA	---

Application: Self-supporting overhead
