Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : Philip
Phone Number : +8613422342788
whatsapp : +8613422342788

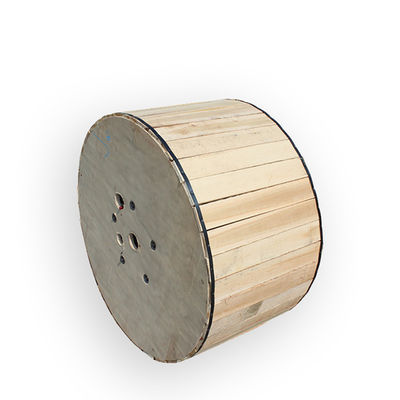

| Minimum Order Quantity : | 1km | Packaging Details : | Wooden drum |
|---|---|---|---|
| Delivery Time : | 3-5 days,it depends on order quantity | Payment Terms : | L/C, T/T, Western Union,Alipay |
| Supply Ability : | 5000km per Month |
| Brand Name: | JQ/HAISO | Certification: | ISO 9001/CE/ROHS/FCC |
|---|---|---|---|
| Model Number: | ADSS-24B1/12B1 |
|
Detail Information |
|||
| Place Of Origin: | Guangzhou,China | Cable Brand: | JQ |
|---|---|---|---|
| Number Of Conductor: | ≥ 10 | Manufacturer: | Yes |
| Application: | Overhead | Outer Sheath: | PE |
| Number Of Fiber: | 2-288 | Storage And Use Temperature: | -40℃ To +70℃. |
| Out Sheath: | PE/AT | ||
| High Light: | Aerial ADSS Fiber Optic Cable,Span 100m ADSS Fiber Optic Cable,24 Core ADSS Fiber Optic Cable |
||
Product Description
Factory Supply Outdoor Self-Supporting Aerial Fibra Optica Adss 12 Core 24 Core Span 100m Adss Fiber Optic Cable

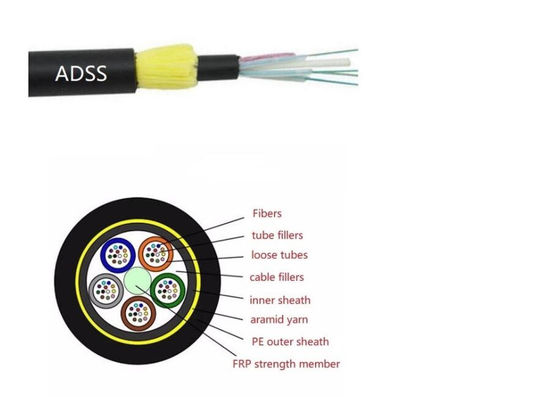

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned into a loose tube made of high modulus plastics.
The tubes are filled with a water-resistant filling compound. Loose tube design, non-metallic central strength member, SZ stranded core filled with gel, aramid yam assistant strength member, outer PE sheath (Anti-tracking sheath used for voltages above 110kV)
Features
• Can be installed without cutting off the power
• Light weight and small cable diameter, reducing the impact of ice, wind and the load on the tower and support
• Large span, the maximum span is more than 1000 meters
• Has excellent tensile properties and temperature characteristics
• Life expectancy 30 years
Structure and Technical Specifications ADSS-SJ(50-150M)
| Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
Rec. Daily Max. (kN) |
Max Allowable Working Tension (kN) |
Break Strength (kN) |
Strength Member CSA (mm2) |
Modulus of (kN/mm2) |
Heat Expansion Coefficient (x10- 6/K) |
Suitable Span Meter |
||||
| PE Jacket | AT Jacket | A | B | C | D | |||||||
| 11 | 110 | 120 | 1.0 | 2.5 | 8 | 3.0 | 6.6 | 2.1 | 120 | 80 | 100 | 80 |
| 11.5 | 115 | 125 | 1.5 | 4 | 10 | 4.5 | 7.3 | 1.8 | 180 | 120 | 150 | 120 |
| 12 | 120 | 130 | 2.5 | 6 | 15 | 7.5 | 8.3 | 1.5 | 250 | 150 | 290 | 150 |
Structure and Technical Specifications ADSS-DJ(50-750M)
| Ref. Outer Diameter (mm) |
Ref. Weight (kg/km) |
Rec. Daily Max. (kN) |
Max Allowable Working Tension (kN) |
Break Strength (kN) |
Strength Member CSA (mm2) |
Modulus of (kN/mm2) |
Heat Expansion Coefficient (x10- 6/K) |
Suitable Span Meter |
||||
| PE Jacket | AT Jacket | A | B | C | D | |||||||
| 12.5 | 125 | 136 | 1.5 | 4 | 10 | 4.6 | 7.6 | 1.8 | 160 | 100 | 140 | 100 |
| 13.0 | 132 | 142 | 2.25 | 6 | 15 | 7.6 | 8.3 | 1.5 | 230 | 150 | 200 | 150 |
| 13.3 | 137 | 148 | 3.0 | 8 | 20 | 10.35 | 9.45 | 1.3 | 300 | 200 | 290 | 200 |
| 13.6 | 145 | 156 | 3.6 | 10 | 24 | 13.8 | 10.8 | 1.2 | 370 | 250 | 350 | 250 |
| 13.8 | 147 | 159 | 4.5 | 12 | 30 | 14.3 | 11.8 | 1.0 | 420 | 280 | 400 | 280 |
| 14.5 | 164 | 177 | 5.4 | 15 | 36 | 18.4 | 13.6 | 0.9 | 480 | 320 | 460 | 320 |
| 14.9 | 171 | 185 | 6.75 | 18 | 45 | 22.0 | 16.4 | 0.6 | 570 | 380 | 550 | 380 |
| 15.1 | 179 | 193 | 7.95 | 22 | 53 | 26.4 | 18.0 | 0.3 | 670 | 460 | 650 | 460 |
| 15.5 | 190 | 204 | 9.0 | 26 | 60 | 32.2 | 19.1 | 0.1 | 750 | 530 | 750 | 510 |
Optical characteristic
|
Fiber type |
Attenuation (+20℃) |
Bandwidth |
Numerical aperture |
Optical cable cut-off wavelength |
||||
|---|---|---|---|---|---|---|---|---|
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
|||
| G.652 | --- | --- | ≤0.36dB/km | ≤0.22dB/km | --- | --- | --- | ≤1260nm |
| G.655 | --- | --- | ≤0.40dB/km | ≤0.23dB/km | --- | --- | --- | ≤1450nm |
| 50/125µm | ≤3.3dB/km | ≤1.2dB/km | --- | --- | ≥500MHz·km | ≥500MHz·km | 0.200±0.015 NA | --- |
| 62.5/125µm | ≤3.5dB/km | ≤1.2dB/km | --- | --- | ≥200MHz·km | ≥500MHz·km | 0.275±0.015 NA | --- |
Application: Self-supporting overhead
