ADSS Outdoor G65D Overhead 48 96 Core SM Single Mode Aerial Cable

Minimum Order Quantity : 1km Packaging Details : wooden drum/customized
Delivery Time : 2-4days Payment Terms : Western Union, MoneyGram, T/T, L/C
Supply Ability : 4500km per Month
Place of Origin: CHINA Brand Name: jiqian
Certification: ISO9001 Model Number: ADSS 12core

Detail Information

Fiber Type: G652D Application: Aerial/duct
Number Of Conductors: 4-144core Structure: Stranded Loose Tube
Operating Temperature: -40 ~ +60 C Central Strength Member: FRP
Span: 80m
High Light:

G657A Overhead Aerial Cable


ADSS Outdoor Overhead Aerial Cable


96 Core Overhead Aerial Cable

Product Description

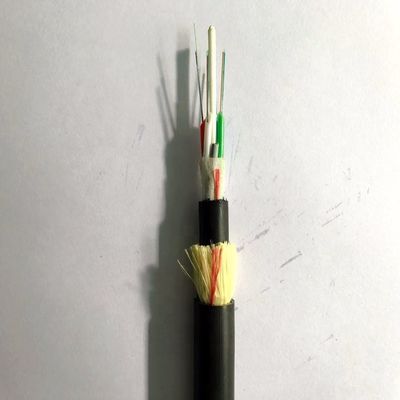

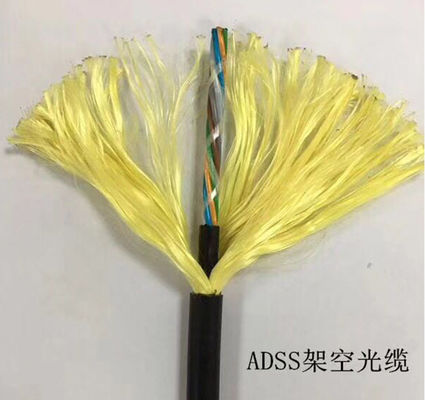

ADSS single-sheathed fiber optic cable adopts stranded Loose tube structure. The optical fiber is inserted into the loose tube made of high-modulus polyester material, and the waterproof compound is filled in the tube.The loose tube (and fillers) is twisted around the non-metallic strengthen member (FRP3) to form a compact cable core. The cable core is wrapped by water blocking tape and stranded with Kevlar Aramid fiber with reinforcing effect. Finally, a PE jacket or an AT)jacket is extruded.

ADSS Outdoor G65D Overhead  48 96 Core SM Single Mode Aerial Cable 0


1.Can be installed without shutting off the power.
2.Excellent mechanical performance.
3.Good performance of tensile strength and temperature.
4.Light weight and small diameter reducing the load caused by ice/wind, as well as the load on towers
  and backprops.
5.Long life span time over 30 years.



Widely used in self support aerial / overhead.

ADSS Outdoor G65D Overhead  48 96 Core SM Single Mode Aerial Cable 1



Optical Performance:


Fiber Type


Mode Field Diameter

9.2+-0.2μm at 1310 nm

Cladding Diameter


Cladding Non-Circularity


Coating Diameter


Attenuation Coefficient

<=0.38dB/km at 1310nm,<=0.22dB/km at 1550nm

Chromatic Dispersion

<=3.5ps/nm/km at1285-1330nm,<=18ps/nm/km at 1550nm

Zero Disperson Wavelength


PMD Coefficient




Cable Parametres:


Model No.


Fiber count

2-144 cores

Fiber type

SM G652D

Central Strangth member


Loose tube


Type of filling compound


Water-blocking system

Water blocking tape

Strength member

Kevlar yarn

Inner sheath


Outer sheath



Overhead;Ariel for telecommunication

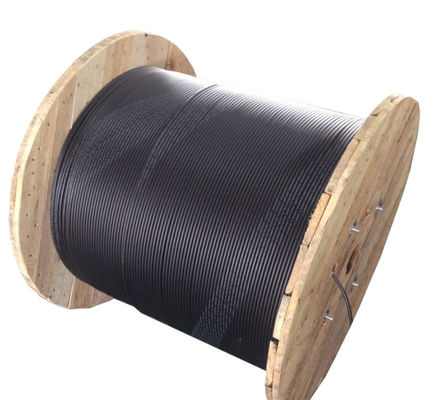

1.Each single length of cable shall be reeled on Fumigated Wooden Drum suitable for long distance shipment.

Covered by plastic buffer sheet.

2.Sealed by strong wooden battens.

3.At least 1 meter inside end of cable will  be reserved for testing.


ADSS Outdoor G65D Overhead  48 96 Core SM Single Mode Aerial Cable 2




1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available

3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.


7.Which brand of fiber do you use?
