Fibre Optical Cable Span 100m Supply Adss 24 Core Fiber Optic Cable
Contact Person : JQ CABLE
Phone Number : +15079563166
whatsapp : +15079563166
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Place of Origin: | Guangzhou | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE FCC | Model Number: | ADSS-DJ-32F |
|
Detail Information |
|||
| Color: | Black,Customized | Length: | 2km Or Customized Length |
|---|---|---|---|
| Jacket Material: | PE | Name: | ADSS Optical Fiber Cable |
| Strength Member: | FRP | Application: | Aerial |
| Operating Temperature: | -40 ~ +60 C | Type: | ADSS,S-Z Stranded Type |
| Fiber Type: | G652D | Packing: | 2-4km/wooden Drum |
| Highlight: | G652D ADSS Fiber Optic Cable,32F ADSS Fiber Optic Cable,PE ADSS Fiber Optic Cable |
||
Product Description
Fiber Optic Cable ADSS-32F G652D Single PE Jacket 100 Meters Span
The ability to tolerate extreme weather (strong winds and icing) is strong.
The outer sheath of ADSS optical cable is AT or PE material. It operates in strong electric field, and there is corrosion problem.
ADSS fiber cable will have wind vibration. Smooth and stable transverse wind to the cable will cause wind vibration and fatigue damage at the hanging point.
ADSS cable has a certain resistance to pressure and can withstand the greater grip strength of the tension clamp.
Features

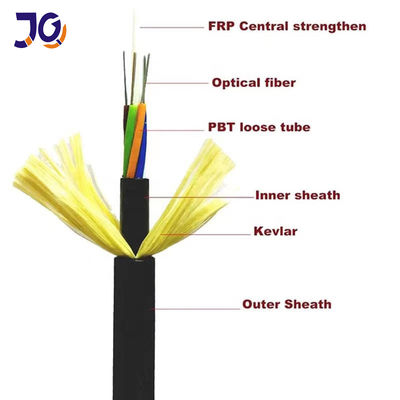

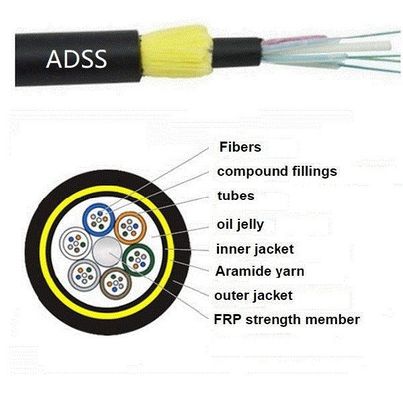

* Single Fiber Reinforced Plastic as the central strength member,Loose tube filling compound
* Can be installed without shutting off the power
* Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
* Large span lengths 100m/200m/300m/400m
* Good performance of tensile strength and temperature
* The design life span is 30 years,special tube filling compound ensure a critical protection of fiber.

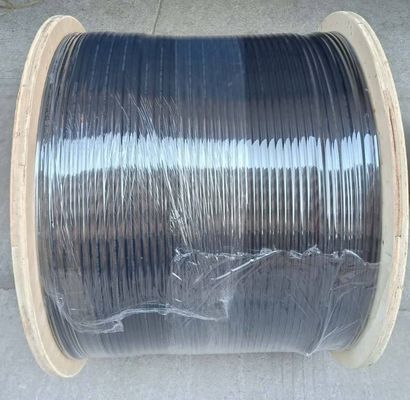

* Package : 2~4km/ Export wooden drum
Specification
| Fiber cores | 32F | |
| Span (Meters) | 100 M | |
| Aramid quality | International A level | |
| Jacket material | PE | |
| Jacket thickness | 1.8 mm | |
| Wind Speed (m/s) | <30 | |
| Cable outer diameter OD | 9.8 ±0.5 mm | |
| Cable weight | 85 kg/km | |
| Length/drum | 5km | |
| 5km/drum gross weight | 460kg | |
| Tensile Strength(N/100mm) | 2200 | |
| Min Bending Radius(mm) | Static | 15D |
| Dynamic | 25D | |
| G.652D | 50/125μm | 62.5/125μm | OM3-300 | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ≤3.0 dB/km | |
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | ||||
| @1550nm | ≤0.22 dB/km | ||||
| Bandwidth(Class A) | @850nm | ≥500 MHz·km | ≥600 MHz·km | ≥600 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥1000 MHz·km | ≥1000 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | ||||
Product Show
Application
Suitable for Aerial Laying method
Storage / Operating Temperature: -40℃~+70℃
Package Detail
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
Shipping:
By sea/by air or express delivery,it depends on the order quantity
Lead time:
| Quantity(km) | 1-300 | Above 300 |
| Earliest time(day) | 7-10 | Negotiable |
