ADSS 48 96 Core G657A2 Self Supporting Aerial Fiber Optic Cable Single Jacket

1KM
MOQ
ADSS 48 96 Core G657A2 Self Supporting Aerial Fiber Optic Cable Single Jacket
Features Gallery Product Description Request A Quote
Features
Specifications
Cable Diameter: 9.7mm
Jacket Color: Black
Operating Temperature: -40℃~+70℃
Application: Overhead/Aerial
Cable Length: 1km/2km/3km/4km/5km
Fiber Count: 2-144 CORES
Storage Temperature: -40℃~+85℃
Bending Radius: Static: 10D/Dynamic: 20D
Highlight:

ADSS 48 core fiber optic cable

,

G657A2 aerial fiber cable

,

self-supporting single jacket fiber optic
Basic Infomation
Place of Origin: Guangzhou China
Brand Name: JQ/OEM/Customize
Certification: ROHS/ISO/CE/FCC
Model Number: ADSS-4C/12FC/24C/48C/96C/144C
Payment & Shipping Terms
Packaging Details: Wooden package
Product Description
Product Description

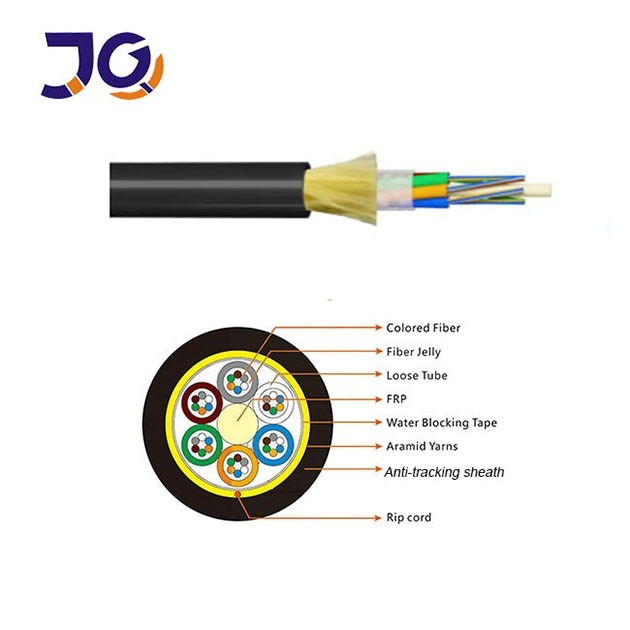

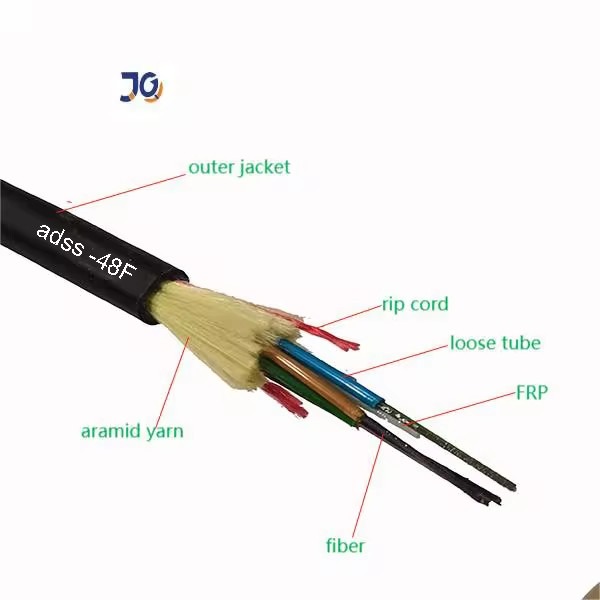

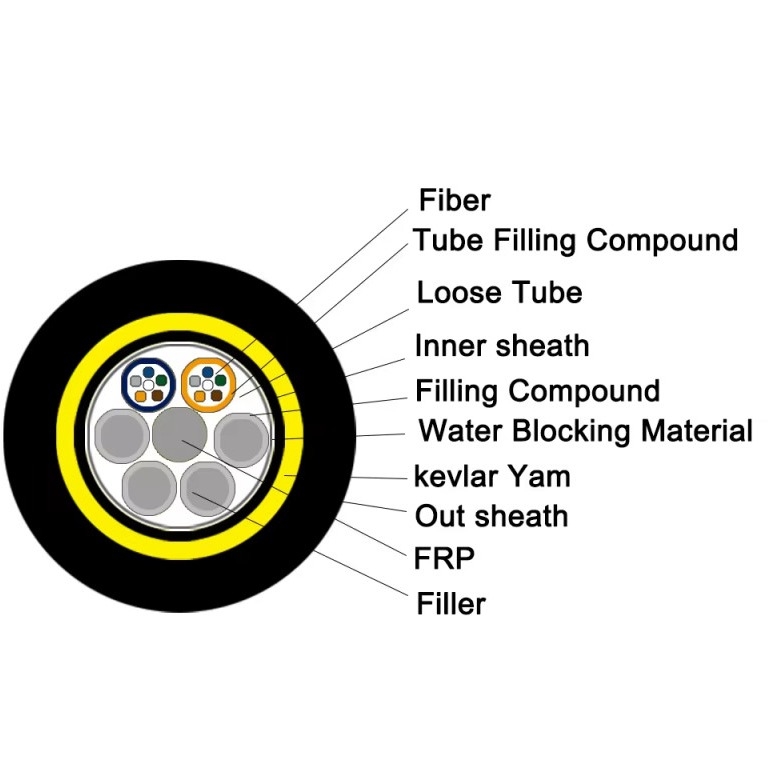

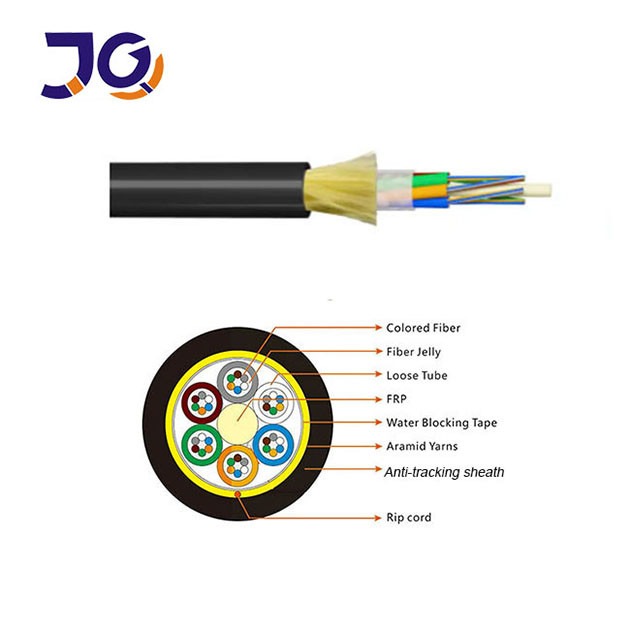

The ADSS cable features a loose tube stranded design. Each 250μm fiber is housed in a high-strength plastic tube filled with water-blocking gel. These tubes are stranded around a central FRP strength member to form a compact core. The cable is then covered with a PE inner sheath, reinforced with aramid yarn for strength, and finished with an outer PE or AT jacket for protection.



Applications:
ADSS cables are ideal for long-distance telecom and LAN networks, especially in high-voltage areas. They offer fast, reliable, and cost-effective aerial installation with stable, long-term performance.



Customization:

  1. Brand: JQ
  2. Model: ADSS
  3. Origin: Guangzhou, China
  4. Storage Temperature: -40℃~+85℃
  5. Attenuation: 1310nm ≤0.36dB/km, 1550nm ≤0.22dB/km
  6. Length: 1–5km
  7. Fiber Type: Single-mode
  8. Feature: Aerial self-supporting fiber cable, available in 72F and 96F for 100m span installations.



Features:
The cable is lightweight, durable, and resistant to ice, wind, and weight stress. Aramid yarn increases tensile strength, and it supports spans over 1000 meters, making it suitable for large-scale installations.



No. Items Unit Specification
G.652D
1 Mode Field Diameter 13 10nm μm 9.2±0.4
1550nm um 10.4±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error um ≤12.0
8 Cable Cutoff Wavelength μm λcc≤1260
9 Attenuation(max.) 1550nm dB/km ≤0.36
1310nm dB/km <0.22

ADSS 48 96 Core G657A2 Self Supporting Aerial Fiber Optic Cable Single Jacket 0

ADSS 48 96 Core G657A2 Self Supporting Aerial Fiber Optic Cable Single Jacket 1



FAQ:

Q1: What are the brand and model of the ADSS Fiber Optic Cable?
A1: Brand: JQ; Model: ADSS.

Q2: Where is the cable produced?
A2: It is manufactured in Guangzhou, China.

Q3: What transmission speed does it support?
A3: The ADSS cable supports data transmission up to 10 Gbps.

Q4: What is its maximum transmission distance?
A4: It can transmit signals over distances of up to 80 km.

Q5: What is the fiber core diameter?
A5: The fiber core diameter is 0.9 mm.
