ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span
ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span
ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span
Contact Now

ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span

Minimum Order Quantity : 1km Packaging Details : Plywood drum
Delivery Time : 5-7 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union
Place of Origin: China Brand Name: Jiqian
Certification: ISO9001/ROHS/CE/FCC Model Number: ADSS-96B1-600m

Detail Information
Fiber Core: 2-288core Csm: FRP
Cable Sheath: PE Life Expectancy: 30 Years
Conductors: ≥10 Model: ADSS
Strength Number: FRP, Kevlar Aramid Yarn Outer Diameter: 18±0.5mm
Number Of Conductors: ≥ 10 Strength Member: FRP+Aramid Yarn
Fiber Brand: Fiberhome/YOFC/Corning Cable Length: Customizable
Type: ADSS-48B1.3-400M Cable Life Expectancy: 25-30 Years
Drum Length: 3/4KM
Highlight:

96 core ADSS fiber optic cable

,

PE sheath ADSS cable

,

600m span fiber optic cable

Product Description

Jiqian Fiber Optic Cable ADSS 96 Core Span 600m Double Jacket

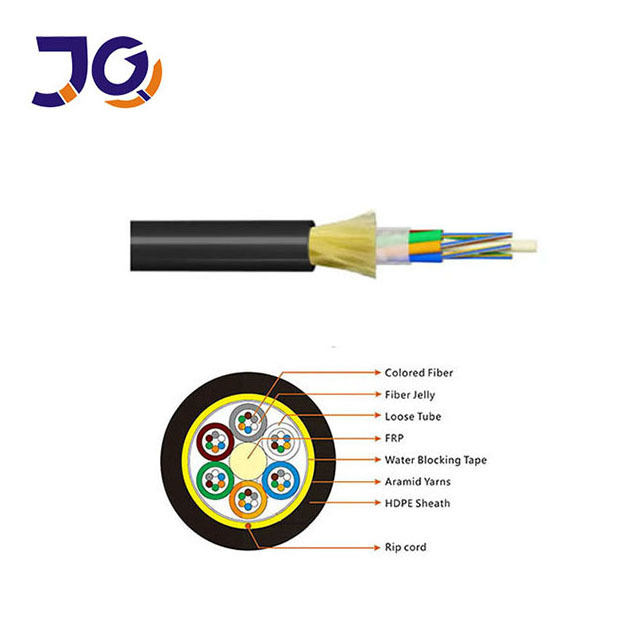

ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span 0

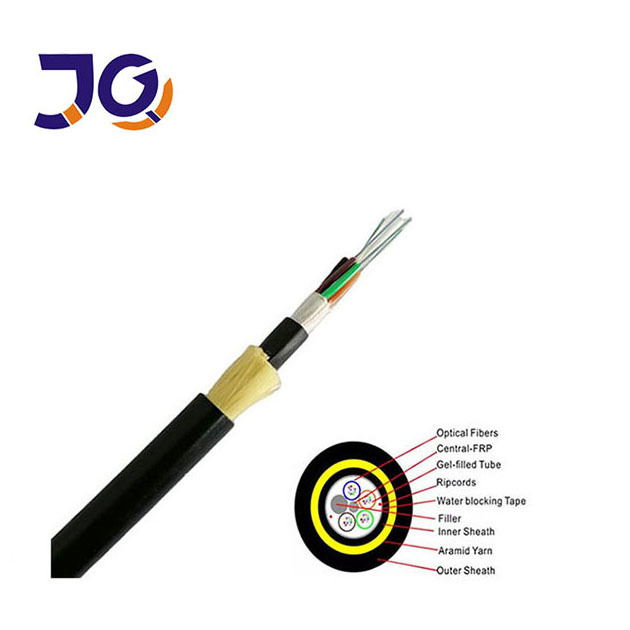

ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span 1

  • For outside plant aerial and duct applications
  • A separate messenger support wire hanging system is not required
  • Greatly reducing installation time
  • Improving upfront and maintenance labor costs

G652D Parameter:

Item Unit Specification
Fiber Type G.652D
Fiber Brand YOFC
Mode field diameter 1310nm mm 9.2±0.4
1550nm mm 10.4±0.8
Cladding diameter mm 125.0±1
Cladding non-circularity % ≤1.0
Core/cladding concentricity error mm ≤0.5
Coating diameter mm 245±5
Coating non-Circularity % ≤6.0
Coating/cladding concentricity error mm ≤12.0
Cable cut-off wavelength nm ≤1260
Attenuation Coefficient 1310nm dB/km ≤0.35
1550nm dB/km ≤0.21
Proof stress level kpsi ≥100
Span(m)
100
200
600
Rated tensile strength(RTS)
7.1


 10.8kn
37.2kn
Allows the  use of tension(MAT)
2.8 kn
4.3kn
14.9kn
The compressive strength
Long time: 1100 n/100mm
Long time: 1100 n/100mm
Long time: 1100 n/100mm
Short time: 2200 n/100mm
Short time: 2200 n/100mm
Short time: 2200 n/100mm





Cable accessories:

ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span 2



ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span 3

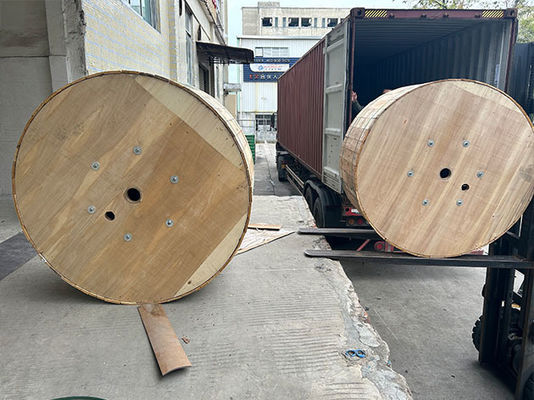

Packaging & ShIpping



ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span 4



Company profile:

ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span 5

ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span 6

ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span 7

1.Located in Guangzhou China

2.12 years experiance of producing fiber optic cable
3.CE/ROSH/FCC/ISO9001 Certifications
4.Exporting fiber optic cable to all over the world



Exhibition:

ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span 8

FAQ:



Q1.What is your terms of packing?
A: Generally, we pack our goods in drum with pallet for export.2KM/3KM/4KM/5KM of one drum or as per your requirements

Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages
before you pay the balance.

Q3. What is your terms of Trade?
A: EXW, FOB, CFR, CIF

Q4. How about your delivery time?
A: Generally, it will take 5 to 7days after receiving your initial. The specific delivery time depends
on the items and the quantity of your order.

Q5. Can you provide OEM or ODM
A: Yes


Q6. What is your sample policy?
A: We provide FREE sample if we have them in stock

Q7. Do you test all your goods before delivery?
A: Yes, all of cables have to be tested before delivery

Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.



For more information please contact me

ADSS Fiber Optic Cable 96 Core PE Sheath 600m Span 9
