Product Description

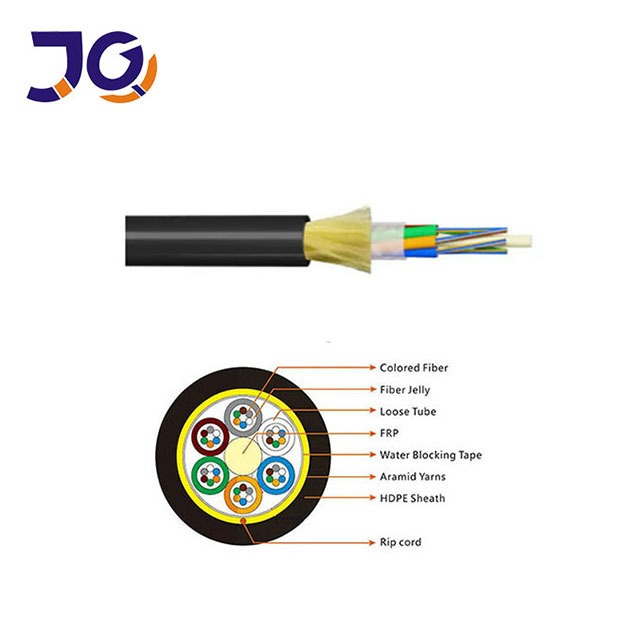

ADSS cable features a loose tube stranded design. The 250μm fibers are housed in high-modulus plastic tubes filled with water-blocking compound. These tubes and fillers are stranded around a central FRP (Fiber Reinforced Plastic) strength member to form a compact, circular core. A thin polyethylene (PE) inner sheath is applied, followed by a layer of aramid yarns for additional tensile strength. Finally, the cable is completed with a PE or AT (anti-tracking) outer sheath.
Features:
This cable offers excellent mechanical and thermal performance. Its lightweight and compact design help minimize ice, wind, and structural loads on towers. Reinforced with aramid yarn, it provides high tensile strength and supports spans over 1000 meters, making it ideal for long-distance deployments.
| No. |
Items |
Unit |
Specification |
| G.652D |
| 1 |
Mode Field Diameter |
13 10nm |
μm |
9.2±0.4 |
| 1550nm |
um |
10.4±0.5 |
| 2 |
Cladding Diameter |
μm |
124.8±0.7 |
| 3 |
Cladding Non-Circularity |
% |
≤0.7 |
| 4 |
Core-Cladding Concentricity Error |
μm |
≤0.5 |
| 5 |
Coating Diameter |
μm |
245±5 |
| 6 |
Coating Non-Circularity |
% |
≤6.0 |
| 7 |
Cladding-Coating Concentricity Error |
um |
≤12.0 |
| 8 |
Cable Cutoff Wavelength |
μm |
λcc≤1260 |
| 9 |
Attenuation(max.) |
1550nm |
dB/km |
≤0.36 |
| 1310nm |
dB/km |
<0.22 |
Applications:
Deploying long-distance telecom or LAN in high-voltage areas is made simple with the self-supporting aerial method.
This approach enables stable network access even under challenging high-voltage conditions. It offers a fast, cost-effective installation process and ensures long-term, reliable connectivity with minimal risk of interruption.
Customization:
Product Name: ADSS Fiber Optic Cable
Brand: JQ
Model: ADSS
Origin: Guangzhou, China
Operating Temperature: -40℃ to +85℃
Attenuation: ≤0.36dB/km @1310nm, ≤0.22dB/km @1550nm
Available Lengths: 1km, 2km, 3km, 4km, 5km
Fiber Type: Single-mode
Features: Aerial installation, suitable for 72F/96F configurations with 100m span support
Support and Services:
ADSS Fiber Optic Cable – Technical Support & Service
We provide full technical support to assist with the installation, operation, and maintenance of ADSS fiber optic cables.
Customers can reach us 24/7 via phone or online for prompt assistance and troubleshooting. Our experienced technicians are ready to resolve any cable-related issues.
For those requiring hands-on help, we offer on-site installation and maintenance services by a team of fiber optic specialists.
Feel free to contact us anytime for more details about our support and service options.
Packing and Shipping:
ADSS Fiber Optic Cable Packaging and Shipping
ADSS fiber optic cables are bundled in customer-specified lengths and securely fastened to avoid tangling or damage. Each bundle is wrapped in protective plastic film and placed in labeled cardboard boxes with product and shipping details. The boxes are sealed with strong tape and shipped via ground or air freight according to customer requirements.
FAQ:
Q1: What are the Brand and Model of the ADSS Fiber Optic Cable?
A1: The brand is JQ, and the model is ADSS.
Q2: Where is the ADSS Fiber Optic Cable produced?
A2: It is manufactured in Guangzhou, China.
Q3: What transmission speed does the ADSS Fiber Optic Cable support?
A3: It supports transmission speeds up to 10 Gbps.
Q4: What is the maximum transmission distance of the cable?
A4: The cable can transmit data up to 80 km.
Q5: What is the fiber core diameter?
A5: The core diameter is 0.9 mm.
