Name: ADSS 8 10 Core SM Aerial Fiber Optic Cable HDPE Jacket
Brand: Guangzhou Jiqian Fiber Optic Cable Co., Ltd.
SKU: ADSS
Price: 168.32 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Fiber Type: G652D/G657A1

Oem: Available

Application: Aerial

Number Of Conductors: 16 Core

Structure: Stranded Loose Tube

Operating Temperature: -40 ~ +60 C

Central Strength Member: FRP

Jacket: HDPE

Highlight:

SM Aerial Fiber Optic Cable

ADSS Aerial Fiber Optic Cable

10 Core Aerial Fiber Optic Cable

Basic Infomation

Place of Origin: CHINA

Brand Name: jiqian

Certification: ISO

Model Number: ADSS

Payment & Shipping Terms

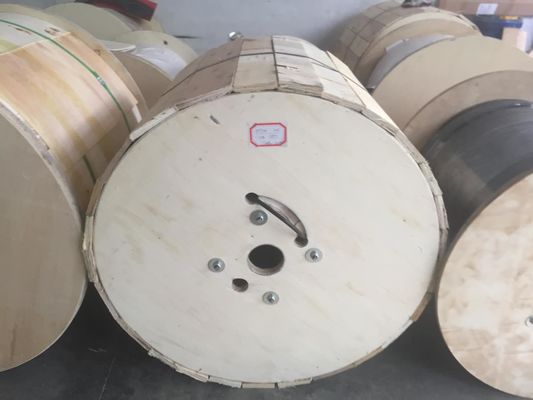

Packaging Details: wooden drum

Delivery Time: 2-4day

Payment Terms: Western Union, T/T, L/C

Supply Ability: 100km per 2 day

Gallery

ADSS 8 10 Core SM Aerial Fiber Optic Cable HDPE Jacket

Product Description

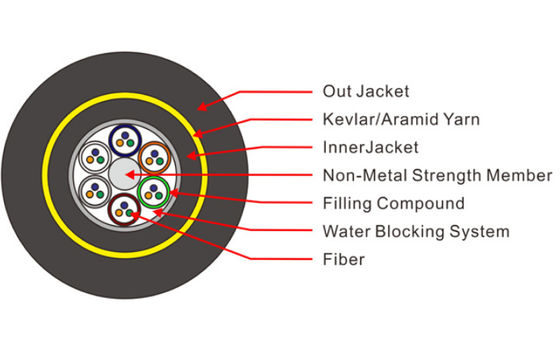

ADSS Outdoor Cable are positioned into a loose tube made of high modulus plastics Filled with a water-blockingfilling compound, the tube is stranded around FRP as a non-metallic central strength member into compact andcircular cable core ADSS cables are ideal for outside plant aerial applications, the lightweight cable andall-dielectric construction allow cost-effective and safe installation in high voltage overhead power lines.

ADSS 8 10 Core SM Aerial Fiber Optic Cable HDPE Jacket 0

Characteristics:

1.Good mechanical and temperature performance
2.High strength loose tube that is hydrolysis resistant
3.Special tube filling compound ensure a critical protection of fiber
4.Crush resistance and flexibility
5.The following measures are taken to ensure the cable watertight:

Optical Characteristics:

		G.652D	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm		≤3.0dB/km	≤3.0dB/km
	@1300nm		≤1.0dB/km	≤1.0dB/km
	@1310nm	≤0.36dB/km
	@1550nm	≤0.22dB/km
Bandwidth(Class A)	@850nm		≥500MHz·km	≥200MHz·km
Bandwidth(Class A)	@1300nm		≥1000MHz·km	≥600MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.15NA
Cable Cut-off Wave length		≤1260nm

FAQ:

1. Are you the real manufacturer?

Yes, we are factory in guangzhou china, welcome to visit us!

2. what is your minimum quantity?

1KM. We support new project of our customers, trial order is available

3.Can I get a sample?

Yes, we provide FREE sample and you just need to pay for express freight.

4.What about Payment?

L/C,T/T,Western Union and Paypal are acceptable.

5.Delivery time?

Generally 3-7 working days, also it is according to qty.

6.Can you supply customized products and logo?

Yes, we supply OEM&ODM service, pls feel free to contact. ADSS 8 10 Core SM Aerial Fiber Optic Cable HDPE Jacket 1
