Premium ADSS Double Sheath Fiber Optic Cable Span 400m 24 48 72 96 144 288 Core
Contact Person : lillian
Phone Number : 8618122384553
whatsapp : +8618122384553
| Minimum Order Quantity : | 1km | Packaging Details : | wooden drum |
|---|---|---|---|
| Delivery Time : | 5-8 work days | Payment Terms : | L/C, T/T, Western Union |
| Place of Origin: | Guangzhou | Brand Name: | JQ/OEM |
|---|---|---|---|
| Certification: | ISO9001 ROHS CE FCC | Model Number: | ADSS-DJ-144core |
|
Detail Information |
|||
| Color: | Black,Customized | Length: | 4km Or Customized Length |
|---|---|---|---|
| Jacket Material: | PE | Name: | ADSS Optical Fiber Cable |
| Strength Member: | FRP | Application: | Aerial |
| Operating Temperature: | -40 ~ +60 C | Type: | ADSS,S-Z Stranded Type |

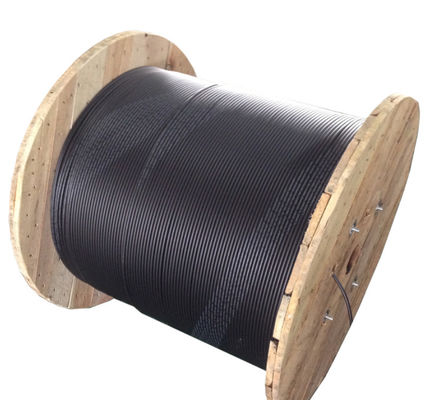

| Fiber Type: | G652D | Packing: | 2-4km/wooden Drum |
| High Light: | FRP ADSS Fiber Optic Cable,G652D ADSS Fiber Optic Cable,Customized Black ADSS Fiber Optic Cable |
||
Product Description
All-Dielectric self-supporting aerial ADSS 144 Cores outdoor Fiber Optic Cable
ADSS-144B1-PE-100
|

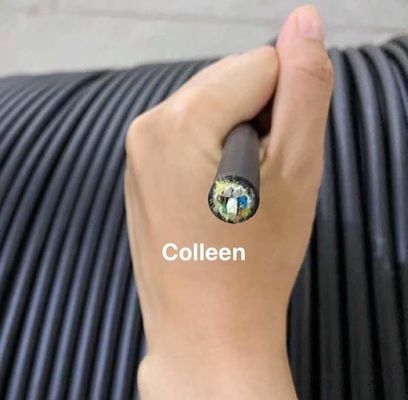

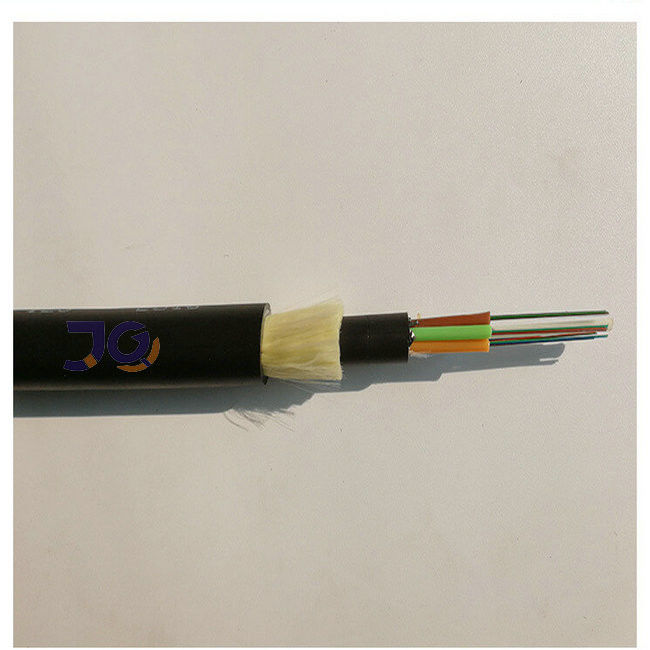

Cable structure |
product name | ADSS-144B1-PE-100 |
|
Center strengthen core FRP |
3.0mm | |
|
Loose tube (filling gel) |
2.2±0.1mm | |
|
Outsheath thickness PE |
1.8±0.2mm | |
|
Cable diameter |
15.2±0.3mm | |
|
cable weight |
175±10%kg/km | |
|
Loose tube(pcs) |
12 | |
|
Each tube contains fibers |
12cores | |
|
Loose tube color |
Blue,Orange,Green,Brown,Gray,Natural, Red,Black, Yellow,Purple,Pink,Aqua |
|
|
Optical fiber color |
Blue,Orange,Green,Brown,Gray,Natural, Red,Black, Yellow,Purple,Pink,Aqua |
| G.652D | 50/125μm | 62.5/125μm | OM3-300 | ||
| Attenuation (+20℃) | @850nm | ≤3.0 dB/km | ≤3.0 dB/km | ≤3.0 dB/km | |
| @1300nm | ≤1.0 dB/km | ≤1.0 dB/km | ≤1.0 dB/km | ||
| @1310nm | ≤0.36 dB/km | ||||
| @1550nm | ≤0.22 dB/km | ||||
| Bandwidth(Class A) | @850nm | ≥500 MHz·km | ≥600 MHz·km | ≥600 MHz·km | |
| @1300nm | ≥1000 MHz·km | ≥1000 MHz·km | ≥1000 MHz·km | ||
| Numerical Aperture | 0.200±0.015NA | 0.275±0.015NA | 0.275±0.015NA | ||
| Cable Cut-off Wavelength λcc | ≤1260nm | ||||
Package Detail
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
Shipping:
By sea/by air or express delivery,it depends on the order quantity
Lead time:
| Quantity(km) | 1-300 | Above 300 |
| Earliest time(day) | 7-10 | Negotiable |
