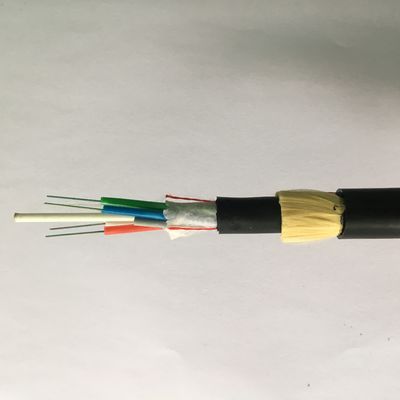

All Dielectric Self Supporting 144 Cores ADSS Fiber Optic Cable
All Dielectric Self Supporting 144 Cores ADSS Fiber Optic Cable All Dielectric Self Supporting 144 Cores ADSS Fiber Optic Cable All Dielectric Self Supporting 144 Cores ADSS Fiber Optic Cable All Dielectric Self Supporting 144 Cores ADSS Fiber Optic Cable All Dielectric Self Supporting 144 Cores ADSS Fiber Optic Cable
Contact Now

All Dielectric Self Supporting 144 Cores ADSS Fiber Optic Cable

Minimum Order Quantity : 1km Packaging Details : wooden drum
Delivery Time : 5-8 work days Payment Terms : L/C, T/T, Western Union
Place of Origin: Guangzhou Brand Name: JQ/OEM
Certification: ISO9001 ROHS CE FCC Model Number: ADSS-DJ

Detail Information
Color: Black,Customized Length: 4km Or Customized Length
Jacket Material: PE Name: ADSS Optical Fiber Cable
Strength Member: FRP Application: Aerial
Operating Temperature: -40 ~ +60 C Type: ADSS,S-Z Stranded Type
Fiber Type: G652D Packing: 2-4km/wooden Drum
Structure: Multi Core,Stranded Loose Tube Oem: Accpet,YES,accept
High Light:

144 Cores ADSS Fiber Optic Cable

,

Self Supporting ADSS Fiber Optic Cable

,

All Dielectric ADSS Fiber Optic Cable

Product Description

All-Dielectric self-supporting aerial ADSS 144 Cores outdoor Fiber Optic Cable







ADSS-2-144B1-PE-100

Benefits

  • Fiber Count up to 216f
  • The dry water blocking materials can easily be removed without the use of cable cleaning solvents, yielding significant labor cost savings
  • Suitable for all types of aerial lines
  • Rapid deployment
  • Installs on live power lines
  • Available for long, medium and short spans

Fiber Types

  • G.651 multi-mode fiber
  • G.652D single-mode fiber
  • G.655 NZDS fiber for DWDM applications

Full range of protections

  • Water Blocked

Full range of applications

  • Outdoor
  • Aerial

Optional protections

  • Track resistant

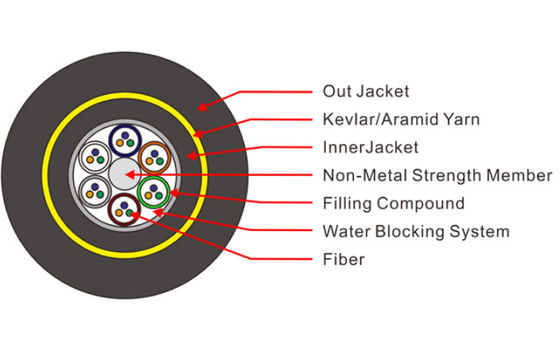

    Dimensions of Cable Constructions

    Fiber count Structure Fibers per tube

    Loose tube diameter

    (mm)

    CSM diameter/pad diameter

    (mm)

    Nominal Thickness of outer jacket

    (mm)

    Cable diameter/

    Height

    (mm)

    Cable weight

    (kg/km)
    4 1+6 4 1.9±0.1 2.0/2.0 1.6 9.8±0.2 82
    6 1+6 6 2.0±0.1 2.0/2.0 1.6 9.8±0.2 82
    8 1+6 4 1.9±0.1 2.0/2.0 1.6 9.8±0.2 82
    12 1+6 6 2.1±0.1 2.0/2.0 1.6 9.8±0.2 82
    24 1+6 6 2.1±0.1 2.0/2.0 1.6 9.8±0.2 85
    36 1+6 12 2.2±0.1 2.0/2.0 1.6 10.0±0.2 85
    48 1+6 12 2.2±0.1 2.0/2.0 1.6 10.0±0.2 88
    72 1+6 12 2.2±0.1 2.0/2.0 1.6 10.5±0.3 98
    96 1+8 12 2.2±0.1 2.0/3.4 1.7 11.8±0.3 123
    144 1+12 12 2.2±0.1 3.0/7.2 1.7 15.2±0.3 175




All Dielectric Self Supporting 144 Cores ADSS Fiber Optic Cable 0All Dielectric Self Supporting 144 Cores ADSS Fiber Optic Cable 1

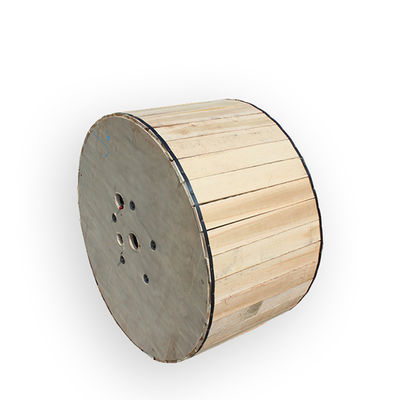

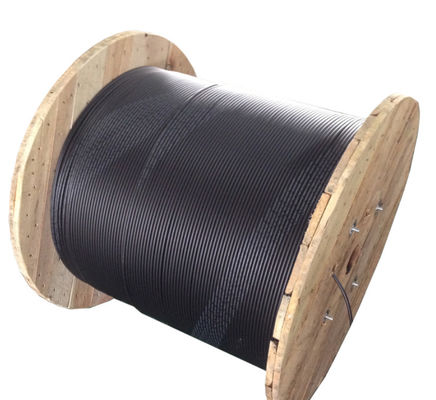

Package Detail



Export Wooden drum,Normal shipping length of the cable will be 1~4km.
Other length is also available if required by buyer.
Mark:Usually we only attach the test report on the packaging, but your request is available too.
For example:

A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length

All Dielectric Self Supporting 144 Cores ADSS Fiber Optic Cable 2





Shipping:

By sea/by air or express delivery,it depends on the order quantity



Lead time:

Quantity(km) 1-300 Above 300
Earliest time(day) 7-10 Negotiable
