Water Resistant 48 Core 500m Span OFC ADSS Fiber Optic Cable
Contact Person : vicky
Phone Number : +8618998347595
WhatsApp : +8618998347595
Detail Information |
|||
Color: | Black,Customized | Length: | 4km Or Customized Length |
---|---|---|---|
Jacket Material: | PE | Name: | ADSS Optical Fiber Cable |
Strength Member: | FRP | Application: | Aerial |
Fiber Type: | G652D | Packing: | 2-4km/wooden Drum |
Structure: | Multi Core,Stranded Loose Tube | Oem: | Accpet,YES,accept |
High Light: | Aerial ADSS Fiber Optic Cable,Double Jacket ADSS Fiber Optic Cable,4km Length ADSS Fiber Optic Cable |
Product Description

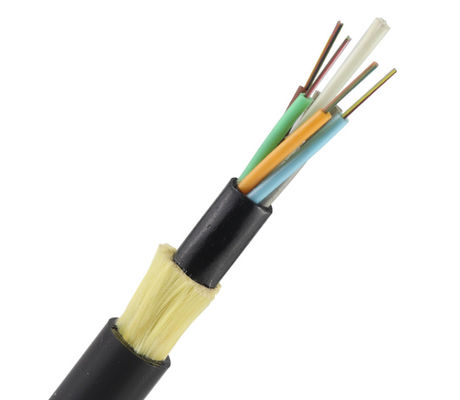

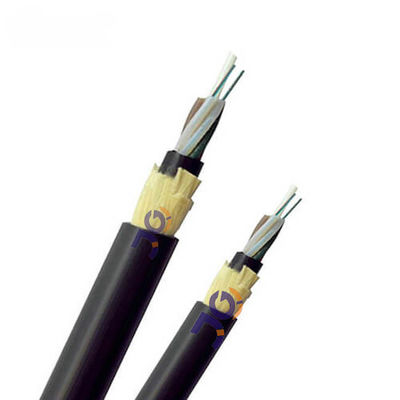

Double Jacket Aerial 6 Core Outdoor ADSS Fiber Optic Cable
Double Jacket Aerial ADSS Fiber Optic Cable
Cores available: 1-144 cores
Span: 50-1000 meters
Applications:
Aerial & conduit/duct application
CATV
Local trunk line
Computer networks system
Dimensions of Cable Constructions
Fiber count | Structure | Fibers per tube |
Loose tube diameter (mm) |
CSM diameter/pad diameter (mm) |
Nominal Thickness of outer jacket (mm) |
Cable diameter/ Height (mm) |
Cable weight (kg/km) |
4 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 82 |
6 | 1+6 | 6 | 2.0±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 82 |
8 | 1+6 | 4 | 1.9±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 82 |
12 | 1+6 | 6 | 2.1±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 82 |
24 | 1+6 | 6 | 2.1±0.1 | 2.0/2.0 | 1.6 | 9.8±0.2 | 85 |
36 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.0±0.2 | 85 |
48 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.0±0.2 | 88 |
72 | 1+6 | 12 | 2.2±0.1 | 2.0/2.0 | 1.6 | 10.5±0.3 | 98 |
96 | 1+8 | 12 | 2.2±0.1 | 2.0/3.4 | 1.7 | 11.8±0.3 | 123 |
144 | 1+12 | 12 | 2.2±0.1 | 3.0/7.2 | 1.7 | 15.2±0.3 | 175 |

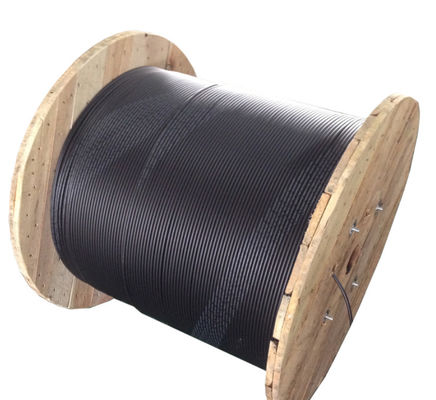

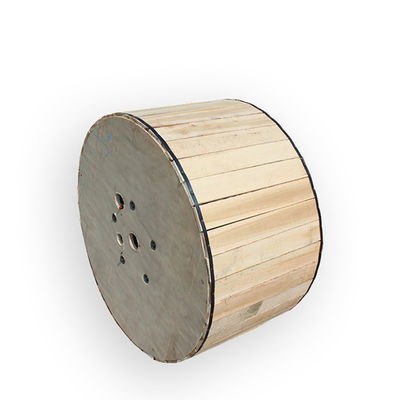

Package Detail
A.Company Name
B.Gross/Net Weight
C.Fiber Type
D.Cable Length
FAQ:
1.What is your warranty time for ADSS aerial fiber cable ?
15 years' warranty for outdoor aerial optical fibre cables.
2. Do you have certificates for raw material?
ISO9001, ROHS,CE,FCC.
3. How long it takes shipping from China to South America countries ?
Usually 50 days by sea.
