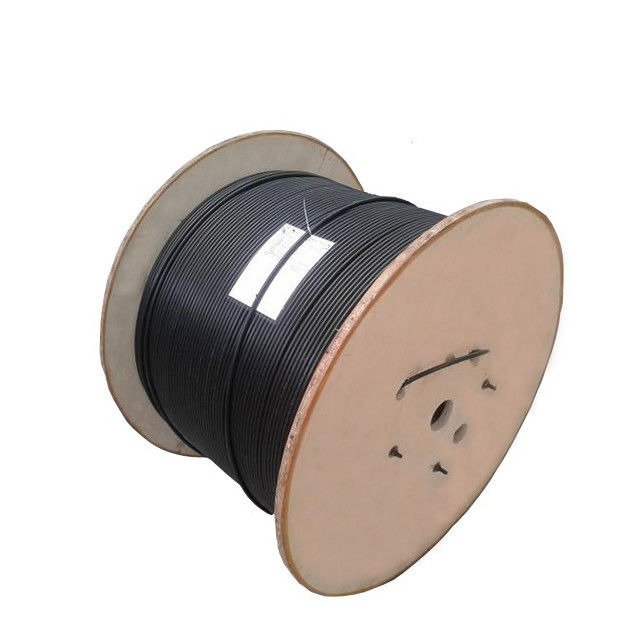

216 Cores Armored GYTY53 Underground Fiber Optic Cable

Minimum Order Quantity : 1km Packaging Details : Wooden drum
Delivery Time : 3-5 days,it depends on order quantity Payment Terms : L/C, T/T, Western Union,Alipay
Supply Ability : 4500 per month
Place of Origin: China Brand Name: Jiqian
Certification: ISO9001 ROHS CE FCC Model Number: GYFTY53/GYTY53

Detail Information

Place Of Origin: Guangzhou,China Brand Name: JQ
Model Number: GYFTY53/GYTY53 Laying Mode: Direct Burial
Suitable Temperature: - 40℃~ +60℃ Central Strength Member: Metallic Tape/FRP
Number Of Fiber: 2-288 Manufacturer: Yes
Certification: ISO9001 ROHS CE-EMC FCC SDOC Operating Temperature: -40°C To + 70°C
Strength Member: Steel Wire,FRP
High Light:

Armored gyty53 cable


216 Cores Underground Fiber Optic Cable


216 Cores gyfty fiber optic cable

Product Description

Up to 216 Cores Armored Optical Fiber Cable GYTY53 Outdoor aerial/Pipeline/direct buried Fiber Optic Cable


The armored GYTY53 Optical Fiber Cable, Has excellent mechanical properties and temperature characteristics, Suitable for various
installation environments such as pipelines, overhead, direct burial, etc.

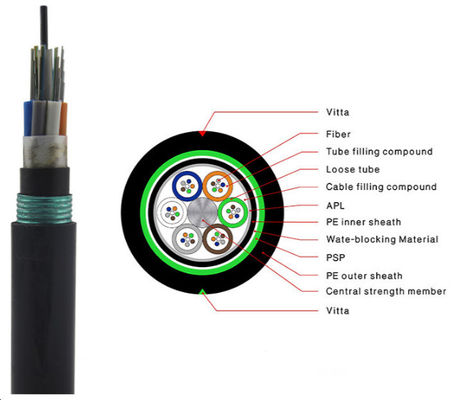

This fiber optic cable structure:200/ 250μm are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a
water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the
center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular
cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied.
After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.


216 Cores Armored GYTY53 	Underground Fiber Optic Cable 0


Applications of 48 Core GYTY53 fiber optic cable

Laying modes: Direct Buried
Long-distance communication, local trunk line, CATV & computer networks system
Adopted to Outdoor distribution
Suitable for aerial duct and buried method

GYTY53 fiber optic cable is a great fiber cable. Despite being in the market for duration of three years, GYTY53 fiber optic cable demand is high exceeding the supply. Therefore, there is need to increase the production level of this type of the cable. Consequently, numerous features and characteristics of this type of fiber cable are critically discussed by this blog. Additionally, its cost has been favorable across the market and therefore, most of the users can afford it without much financial strain.

48 Core GYTY53 fiber optic cable is used for direct buried underground, it suit for long distance and LAN fiber communications, we supply both the single mode GYTY53 cable and multimode GYTY53 cables.


GYTY53 fiber cable is stranded loose tube structure with steel tape double sheaths, the loose tube stranding technology make the fibers have good secondary excess length and allow the fibers free movement in the tube ,which keeps the fiber stress-free while the cable is subjected to longitudinal stress. GYTY53 cable is steel tape armored and double PE sheath providing excellent crush resistance and rodent resistance. Metal strength member provides excellent strain performance.GYTY53 is available from 2 cores to 216 cores.

Package and shipping mark:
Printing at out jacket of optical cable
White color printing words at each meter distance, standard printing content as
following ,also can match the customer
require for the printing content
Meter mark
Style of optical cable and fiber account
Manufacturer name
Manufacture date

Package of optical cable
Standard length is 1KM, other length can negotiate
Can be packed in wooden drum or plywood drum
The end face of optical cable will using plastic cap or adhesive tape sealed as water-proof
Using batten totally sealed and fixed by steel tape
The end of optical cable will be fixed into the wooden drum in order to prevent the lost during transportation process.

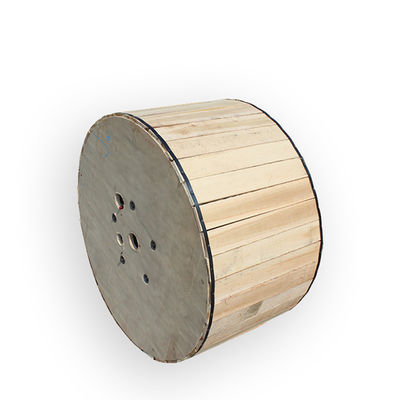

Wooden drum
Label will be sticked at wooden drum, content as following
Style of optical cable and fiber account
Gross weight KGS
Total drums amount
Manufacture date
The following information also will be exposed at the wooden drum
Rolling direction

Optical cable rolling tightly with the wooden drum, in order to prevent it will be broken during transportation process


Cable Type Fiber Count Loose tube count
Filler count
mm Cable Weight Kg/km Tensile Strength
Long/short term
Crush Resistance

Long/short term


Bending Radius


GYTY53-2~6 2~6 1 4 12.5 160 1000/3000 1000/3000 15D/30D
GYTY53-8~12 8~12 2 3 12.5 160 1000/3000 1000/3000 15D/30D
GYTY53-14~18 14~18 3 2 12.5 160 1000/3000 1000/3000 15D/30D
GYTY53-20~24 20~24 4 1 12.5 160 1000/3000 1000/3000 15D/30D
GYTY53-26~30 26~30 5 0 12.5 160 1000/3000 1000/3000 15D/30D
GYTY53-32~36 32~36 5 0 12.5 160 1000/3000 1000/3000 15D/30D
GYTY53-38~48 38~48 5 0 12.5 160 1000/3000 1000/3000 15D/30D
GYTY53-50~60 50~60 5 0 12.5 160 1000/3000 1000/3000 15D/30D
GYTY53-62~72 62~72 6 0 13.2 200 1000/3000 1000/3000 15D/30D
GYTY53-74~84 74~84 7 1 15.0 240 1000/3000 1000/3000 15D/30D
GYTY53-86~96 86~96 8 0 15.0 240 1000/3000 1000/3000 15D/30D
GYTY53-98~108 98~108 9 1 16.0 280 1000/3000 1000/3000 15D/30D
GYTY53-110~120 110~120 10 0 16.0 280 1000/3000 1000/3000 15D/30D
GYTY53-122~132 122~132 11 1 18.0 290 1000/3000 1000/3000 15D/30D
GYTY53-130~144 134~144 12 0 18.0 290 1000/3000 1000/3000 15D/30D
GYTY53-146~216 134~144 18 0 18.0 290 1000/3000 1000/3000 15D/30D



216 Cores Armored GYTY53 	Underground Fiber Optic Cable 1


1,Q:Are you a factory or trade company?
A:We are a factory

2,Q:What is the MOQ?

A:The MOQ of Fiber Optic cable is 1km.


3.Q:Which brand of fiber do you use?



4,Q:Can you accept small order?
A:Yes, small order is available .We support new project of our customers as we know business is always from small order.

5,Q:What’s delivery time?
A:The general delivery time is 5-7 days after order confirmed. It depends on the order quantity.


6.Can you supply customized products and logo?

A:Yes. We supply OEM service.


7.What’s your payment terms?

A: We accept T/T,L/C,Western Union, 30% Deposit and 70% before shipment.
